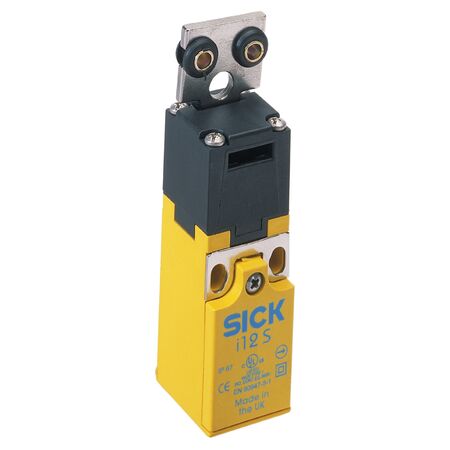

Safety Interlock Switch I12-SA113 | IP67 Rated | 3A Operating Current | 7200 Actuations/Hour | by SICK

BRAND: SICK
SKU: 6025057
$131.50 List price: $165.30
+ −
30 Days Return Electricians Unlock Trade Access
The Safety Interlock Switch I12-SA113 is designed for industrial safety systems, featuring IP67 protection, a 3A rated operating current, and a high actuation frequency of up to 7,200 per hour. Ideal for machinery guarding and access control, this switch ensures reliable operation in demanding environments, with a durable glass-fiber reinforced thermoplastic housing that withstands temperatures from -20 °C to +80 °C.

Alternatively Known As: Safety Interlock Switch, Safety Door Switch, Safety Limit Switch, Interlock Switch

Technical Specifications
  • Positive action N/C contacts: 1
  • N/O contacts: 1
  • Retaining force: ≤ 6 N
  • Actuation frequency: ≤ 7,200 per hour
  • Actuation directions: 5
  • Approach speed: ≤ 10 m/min
  • B10d parameter: 2 x 10^6 switching cycles (small load)
  • Type: Type 2 (EN ISO 14119)
  • Actuator coding level: Low coding level (EN ISO 14119)
  • Safe state in fault: No internal fault detection; fault detection by connected safety logic unit
  • Connection type: Cable gland, 1 x M16
  • Conductor cross section: ≤ 1.5 mm²
  • Switching principle: Slow action switching element
  • Usage category: AC-15/DC-13 (IEC 60947-5-1)
  • Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
  • Rated insulation voltage Ui: 240 V
  • Rated impulse withstand voltage Uimp: 2,500 V AC
  • Short-circuit protection: T10/10A
  • Switching voltage: ≥ 5 V DC
  • Switching current: 5 mA (5 V DC)
  • Mechanical life: 1 x 10^6 switching cycles
  • Enclosure rating: IP67 (IEC 60529)
  • Ambient operating temperature: -20 °C to +80 °C
  • Storage temperature: -20 °C to +80 °C
  • Housing material: Glass-fiber reinforced thermoplastic
  • Dimensions (H x L x W): 40mm x 80mm x 40mm
  • Weight: 0.1 kg
Key Features
  • Positive action N/C contacts: 1
  • N/O contacts: 1
  • Retaining force ≤ 6 N
  • Actuation frequency up to 7,200 per hour
  • 5 actuation directions
  • Approach speed up to 10 m/min
  • Slow action switching element
  • Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
  • Rated insulation voltage: 240 V
  • Short-circuit protection: T10/10A
  • Enclosure rating IP67 for dust and water protection
  • Operating temperature range: -20 °C to +80 °C
  • Housing made of glass-fiber reinforced thermoplastic
Professional Installation Requirements
  • Installation should be performed by a qualified professional familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
  • Industrial safety systems requiring positive action safety interlocks
  • Machinery guarding and access control
  • Automation and manufacturing safety applications
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable construction reduces replacement frequency and waste
  • High reliability minimizes downtime and resource consumption
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK I12-SA113 Safety Interlock is available for immediate purchase, ideal for industrial safety and machinery guarding applications.
