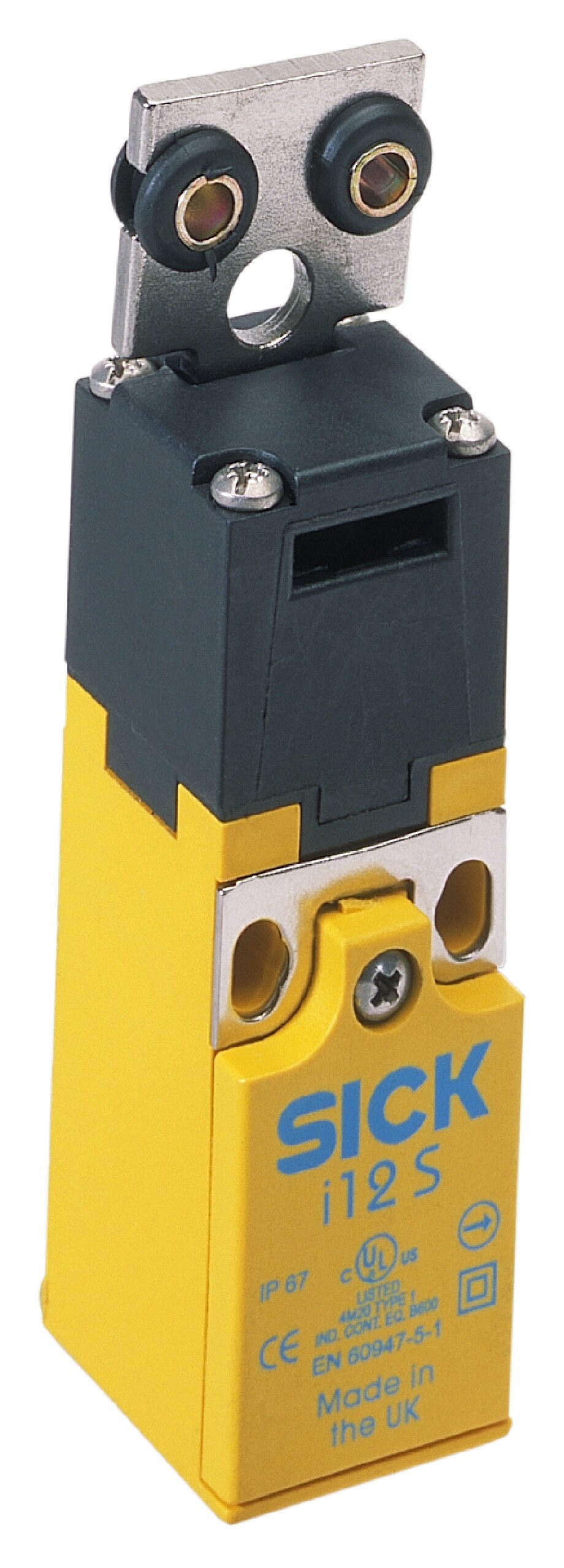

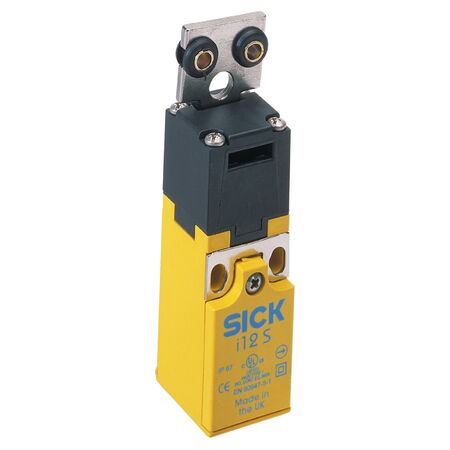

Safety Interlock Switch i12-SA113 | IP67 Rated | Positive Action Contacts | 7200 Operations/Hour | by SICK
The i12-SA113 safety interlock switch is designed for reliable safety monitoring in industrial applications. Featuring positive action N/C and N/O contacts, it ensures secure actuator engagement with a retaining force of ≤ 6 N. With an IP67 rated enclosure, this switch is built to withstand dust and water, making it ideal for machinery safety interlocks and automation equipment safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 1
- N/O contacts: 1
- Retaining force: ≤ 6 N
- Actuation frequency: ≤ 7,200 per hour
- Actuation directions: 5
- Approach speed: ≤ 10 m/min
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Safe series connection: None, only individual wiring with diagnostics
- Connection type: Cable gland, 1 x M16
- Conductor cross section: ≤ 1.5 mm²
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 240 V
- Rated impulse withstand voltage Uimp: 2,500 V AC
- Short-circuit protection: T10/10A
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Housing material: Glass-fiber reinforced thermoplastic
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: –20 °C to +80 °C
- Storage temperature: –20 °C to +80 °C
- Dimensions (H x L x W): 80mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Positive action N/C and N/O contacts for reliable safety switching
- Retaining force ≤ 6 N ensuring secure actuator engagement
- Supports actuation from 5 directions
- Slow action switching element for precise operation
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- IP67 rated enclosure for protection against dust and water
- Mechanical life of 1 million switching cycles
- Actuation frequency up to 7,200 operations per hour
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety switch wiring and compliance with relevant safety standards.
Applications
- Industrial safety systems requiring reliable safety switch monitoring
- Machinery safety interlocks
- Automation equipment safety applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- High reliability minimizes downtime and resource consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK i12-SA113 safety switch is available for immediate purchase, ideal for industrial safety and automation applications.
