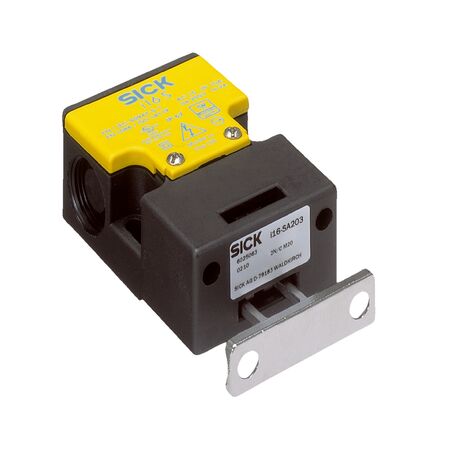

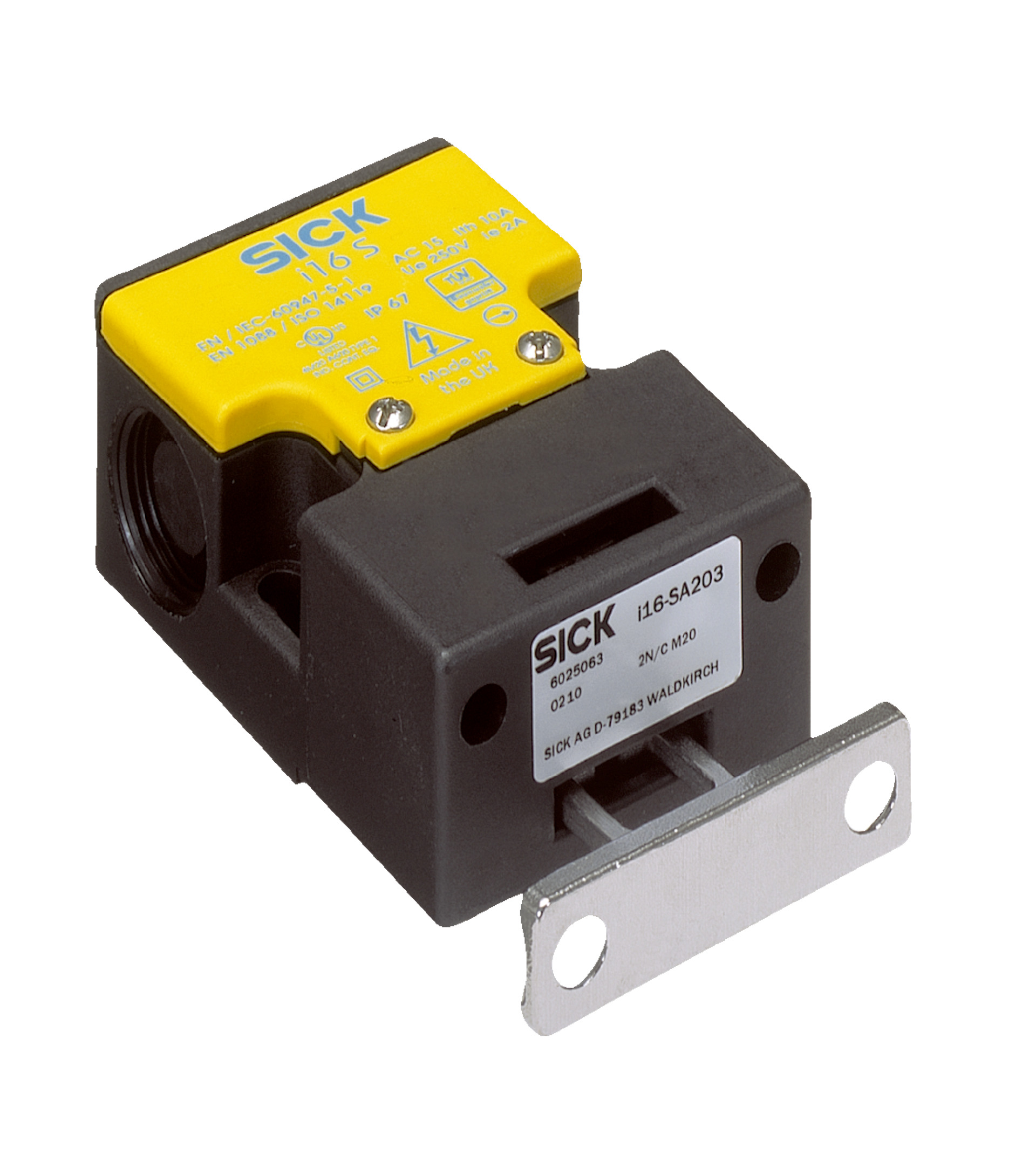

Safety Interlock Switch i16-SA113 | IP67 Rated | 3 Actuation Directions | 7200 Actuations/Hour | by SICK
The i16-SA113 safety interlock switch is designed for industrial safety systems, featuring positive action N/C and N/O contacts for reliable switching. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for automation equipment safety applications. Built for high reliability, it offers a mechanical life of 1 million switching cycles, minimizing downtime and resource consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 1
- N/O contacts: 1
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 7,200 per hour
- Actuation directions: 3
- Approach speed: ≤ 10 m/min
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable gland, 3 x M20
- Conductor cross section: ≤ 1.5 mm²
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 240 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Short-circuit protection: T10/10A
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Housing material: Glass-fiber reinforced polybutylene terephthalate (PBT)
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: –20 °C to +80 °C
- Storage temperature: –20 °C to +80 °C
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 0.14 kg
Key Features
- Positive action N/C and N/O contacts for reliable switching
- Retaining force ≤ 30 N
- Actuation frequency up to 7,200 per hour
- Operable in 3 actuation directions
- Slow action switching element
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- IP67 rated enclosure for dust and water protection
- Mechanical life of 1 million switching cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety switch wiring and compliance with relevant safety standards.
Applications
- Industrial safety systems requiring reliable safety switch monitoring
- Machinery safety interlocks
- Automation equipment safety applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- High reliability minimizes downtime and resource consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK i16-SA113 safety switch is available for immediate purchase, ideal for industrial safety and automation applications.
