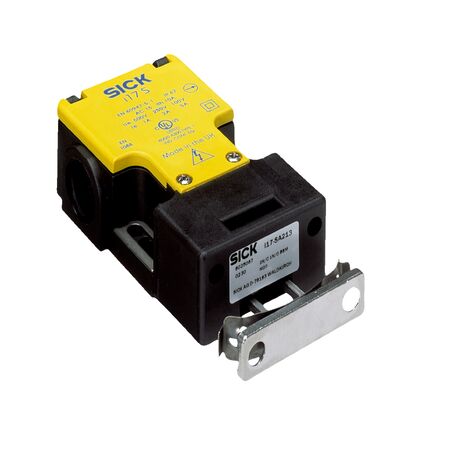

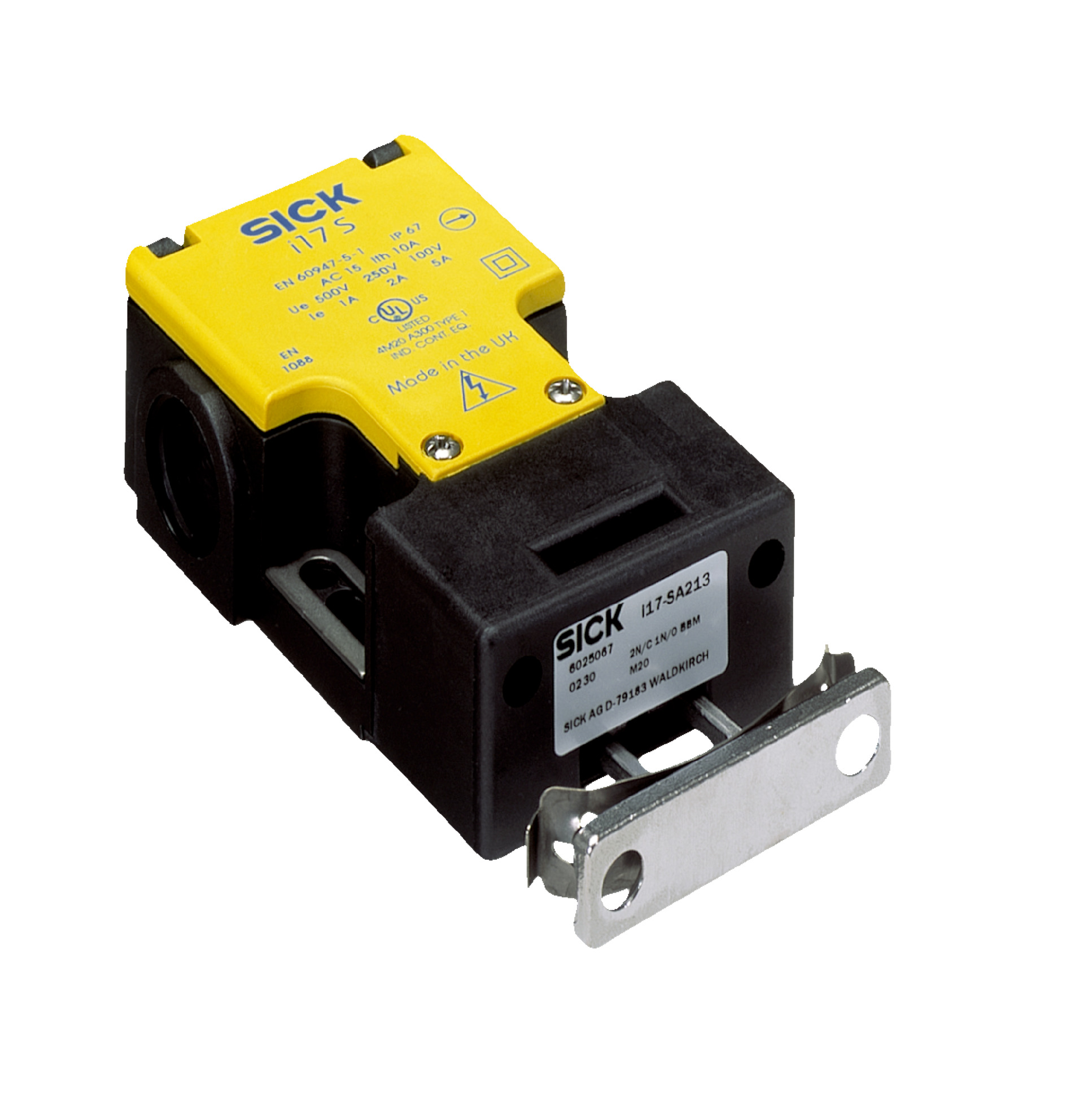

Safety Interlock Switch i17-SA213 | 2 N/C & 1 N/O Contacts | IP67 Rated | by SICK
The i17-SA213 safety interlock switch features 2 positive action normally closed (N/C) contacts and 1 normally open (N/O) contact, making it ideal for industrial safety systems. With an IP67 rated enclosure for dust and water protection, this switch ensures reliable operation in automation and control systems, providing peace of mind in safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 1
- Retaining force: ≤ 12 N
- Actuation frequency: ≤ 7,200 per hour
- Actuation directions: 3
- Approach speed: ≤ 10 m/min
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in fault: No internal fault detection; fault detection by connected logic unit
- Connection type: Cable gland, 3 x M20
- Conductor cross section: ≤ 1.5 mm²
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 240 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Short-circuit protection: 2 A gG
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Housing material: Glass-fiber reinforced thermoplastic
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: –20 °C to +80 °C
- Storage temperature: –20 °C to +80 °C
- Dimensions (H x L x W): 40mm x 100mm x 60mm
- Weight: 0.19 kg
Key Features
- 2 positive action normally closed (N/C) contacts and 1 normally open (N/O) contact
- Retaining force of ≤ 12 N
- Actuation frequency up to 7,200 per hour
- Operable in 3 actuation directions
- Approach speed up to 10 m/min
- Slow action switching element for reliable operation
- Rated operating current: 3 A at 240 V AC, 2 A at 24 V DC
- IP67 rated enclosure for dust and water protection
- Mechanical life of 1 million switching cycles
- Certified with EU, UK, China-RoHS, cULus, and TÜV approvals
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety switch wiring and compliance with relevant safety standards.
Applications
- Industrial safety systems requiring reliable safety switch monitoring
- Machinery safety interlocks
- Automation and control systems with safety requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Certified RoHS compliant, minimizing hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK i17-SA213 safety switch is available for immediate purchase, ideal for industrial safety and automation applications.
