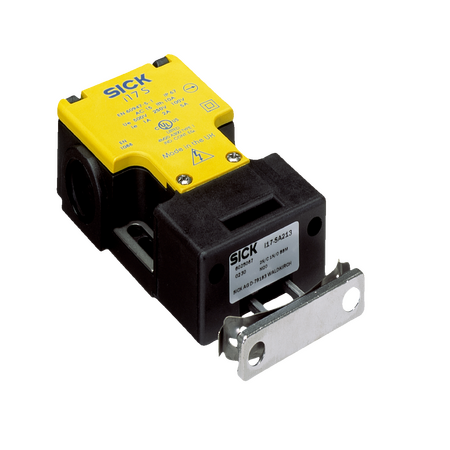

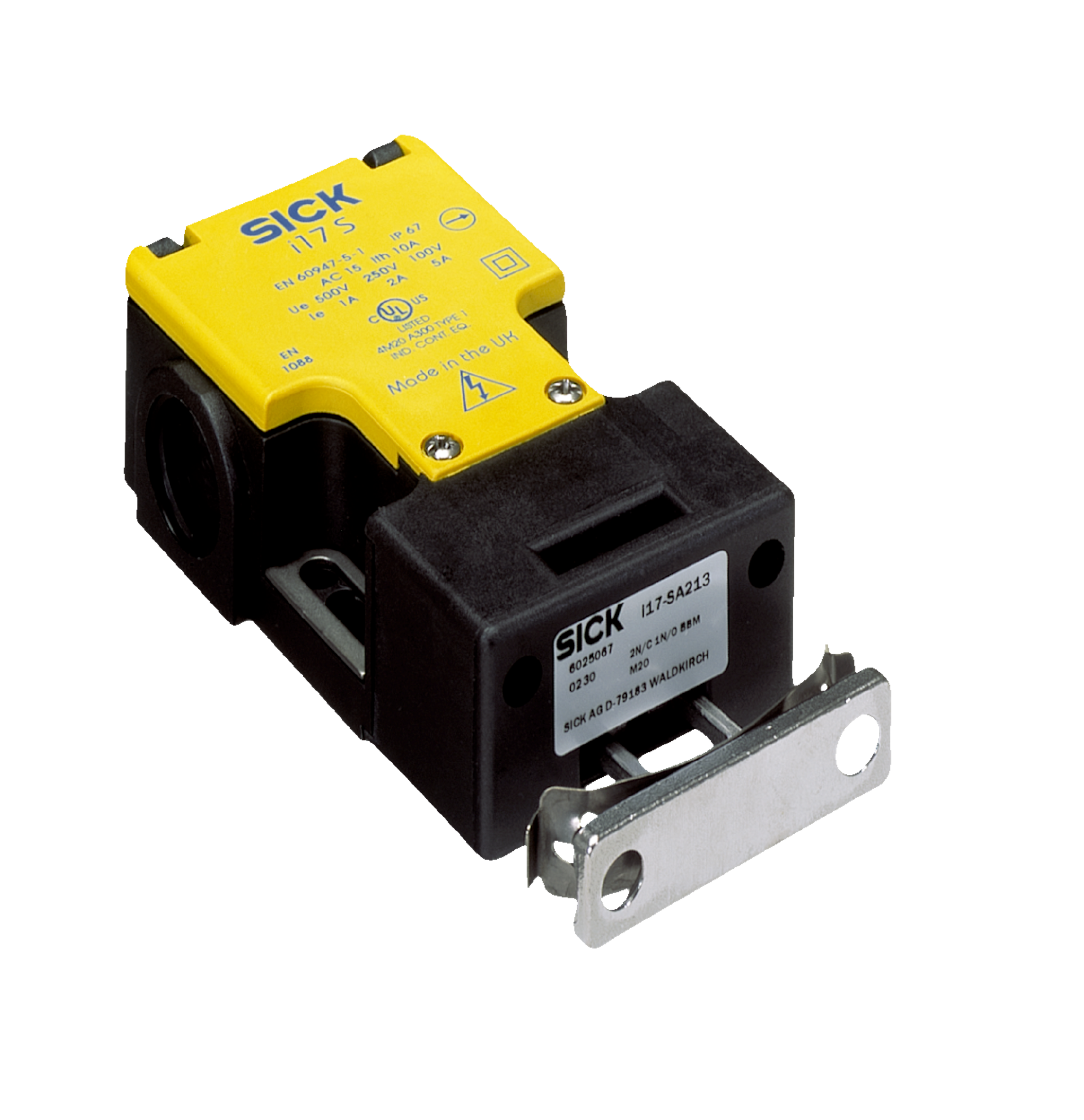

Safety Interlock Switch I17-SA213 | IP67 Rated | 2 N/C & 1 N/O Contacts | by SICK

BRAND: SICK
SKU: 6025067
$139.80 List price: $175.80
+ −
30 Days Return Electricians Unlock Trade Access
The Safety Interlock Switch I17-SA213 features 2 positive action normally closed contacts and 1 normally open contact, ensuring secure locking for industrial safety systems. With an IP67 rated enclosure, it protects against dust and water ingress, making it ideal for machinery guarding and automation applications. Designed for reliable performance, it supports actuation from three directions and has a mechanical life of 1 million switching cycles.

Alternatively Known As: Safety Interlock Switch, Safety Door Switch, Machine Safety Interlock, Positive Action Safety Switch

Technical Specifications
  • Positive action N/C contacts: 2
  • N/O contacts: 1
  • Retaining force: ≤ 12 N
  • Actuation frequency: ≤ 7,200 per hour
  • Actuation directions: 3
  • Approach speed: ≤ 10 m/min
  • B10d parameter: 2 x 10^6 switching cycles (small load)
  • Type: Type 2 (EN ISO 14119)
  • Actuator coding level: Low coding level (EN ISO 14119)
  • Safe state in fault: No internal fault detection; fault detection by connected safety logic unit
  • Connection type: Cable gland, 3 x M20
  • Conductor cross section: ≤ 1.5 mm²
  • Switching principle: Slow action switching element
  • Usage category: AC-15/DC-13 (IEC 60947-5-1)
  • Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
  • Rated insulation voltage Ui: 240 V
  • Rated impulse withstand voltage Uimp: 2,500 V
  • Short-circuit protection: 2 A gG
  • Switching voltage: ≥ 5 V DC
  • Switching current: 5 mA (5 V DC)
  • Housing material: Glass-fiber reinforced thermoplastic
  • Mechanical life: 1 x 10^6 switching cycles
  • Enclosure rating: IP67 (IEC 60529)
  • Operating temperature: –20 °C to +80 °C
  • Storage temperature: –20 °C to +80 °C
  • Dimensions (H x L x W): 40mm x 100mm x 60mm
  • Weight: 0.19 kg
Key Features
  • 2 positive action normally closed (N/C) contacts and 1 normally open (N/O) contact
  • Retaining force of ≤ 12 N for secure locking
  • Supports actuation from 3 directions with approach speed up to 10 m/min
  • Slow action switching element with rated operating current of 3 A (240 V AC) and 2 A (24 V DC)
  • IP67 rated enclosure for protection against dust and water ingress
  • Mechanical life of 1 million switching cycles
  • Certified with EU and UK declarations of conformity, China RoHS, cULus, and TÜV approvals
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety interlock systems and relevant safety standards to ensure proper wiring and compliance.
Applications
  • Industrial safety systems requiring positive action safety interlocks
  • Machinery guarding and access control
  • Automation and manufacturing safety applications
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable construction reduces replacement frequency and waste
  • Compliance with RoHS ensures restriction of hazardous substances
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK I17-SA213 Safety Interlock is available for immediate purchase, ideal for industrial safety and machine guarding applications.
