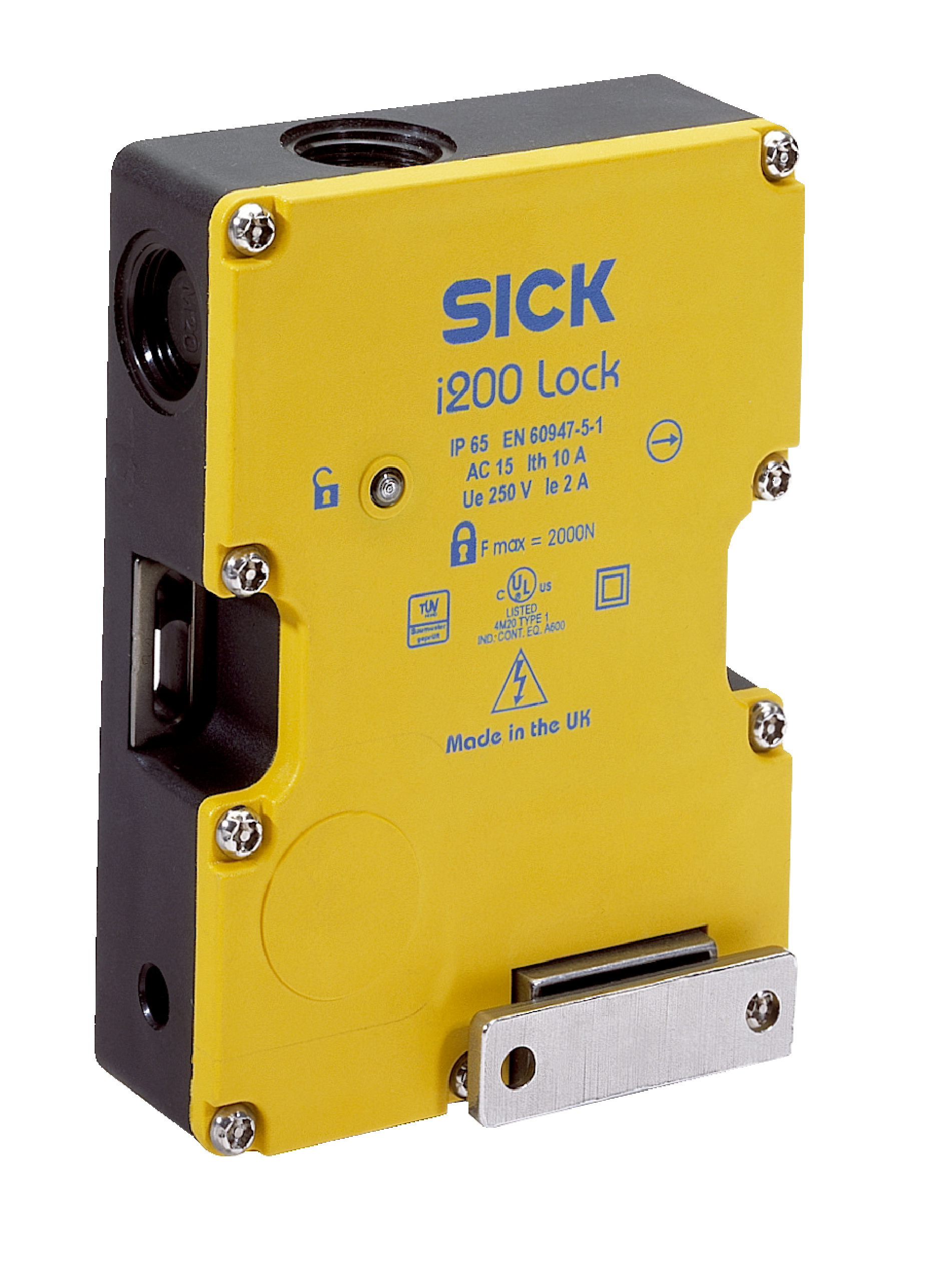

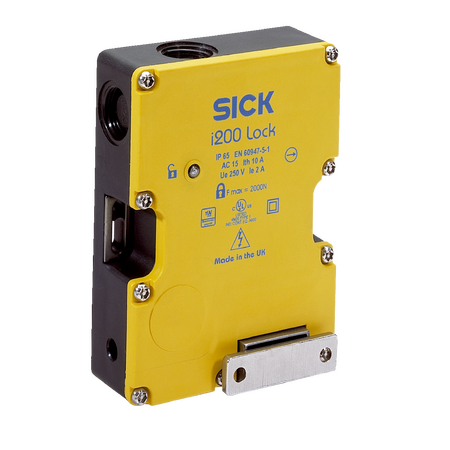

Safety Interlock Switch I200-M0323 | Electro-Mechanical Sensor | IP65 Rated | 2,600 N Locking Force | by SICK

BRAND: SICK
SKU: 6025113
$731.90 List price: $919.90
+ −
30 Days Return Electricians Unlock Trade Access
The Safety Interlock Switch I200-M0323 features an electro-mechanical sensor principle with power to release locking, making it ideal for industrial safety systems and machinery guarding. With a robust locking force of up to 2,600 N and an IP65 rated enclosure, it ensures reliable operation in demanding environments. Designed for professional installation, this switch is perfect for automation systems requiring secure access control.

Alternatively Known As: Safety Door Interlock Switch, Safety Locking Switch, Industrial Safety Interlock, Machine Safety Interlock

Technical Specifications
  • Sensor principle: Electro-mechanical
  • Locking principle: Power to release
  • Positive action N/C solenoid monitoring contacts: 1
  • N/O solenoid monitoring contacts: 1
  • Positive action N/C door monitoring contacts: 2
  • N/O door monitoring contacts: 1
  • Locking force Fmax: 2,600 N (EN ISO 14119)
  • Locking force FZh: 2,000 N (EN ISO 14119)
  • Retaining force: ≤ 30 N
  • Actuation frequency: ≤ 3,600 per hour
  • Actuation directions: 3
  • Approach speed: ≤ 10 m/min
  • B10d parameter: 2 x 10^6 switching cycles (small load)
  • Type: Type 2 (EN ISO 14119)
  • Actuator coding level: Low coding level (EN ISO 14119)
  • Safe state in fault: No internal fault detection; fault detection by connected safety logic unit
  • Connection type: Cable gland, 3 x M20
  • Display elements: LEDs with status display
  • Switching principle: Slow action switching element
  • Usage category: AC-15/DC-13 (IEC 60947-5-1)
  • Rated operating current: 3 A (240 V AC), 3 A (24 V DC)
  • Rated insulation voltage Ui: 500 V
  • Rated impulse withstand voltage Uimp: 2,500 V
  • Type of output: Electro-mechanical contacts
  • Power consumption: ≤ 7 W
  • Short-circuit protection: 3 A gG
  • Switching voltage: ≥ 5 V DC
  • Switching current: 5 mA (5 V DC)
  • Solenoid operating voltage: 20.4 V DC to 26.4 V DC
  • Switch-on time of magnet: 100%
  • Housing material: Glass-fiber reinforced polyester
  • Mechanical life: 1 x 10^6 switching cycles
  • Enclosure rating: IP65
  • Ambient operating temperature: –20 °C to +60 °C
  • Storage temperature: –20 °C to +60 °C
  • Dimensions (H x L x W): 120mm x 40mm x 60mm
  • Weight: 0.55 kg
Key Features
  • Electro-mechanical sensor principle with power to release locking
  • Positive action N/C and N/O solenoid and door monitoring contacts
  • Locking force up to 2,600 N compliant with EN ISO 14119
  • Actuation frequency up to 3,600 per hour and approach speed up to 10 m/min
  • LED status display for operational feedback
  • IP65 rated enclosure for protection against dust and water
  • Mechanical life of 1 million switching cycles
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and operational safety.
Applications
  • Industrial safety systems requiring secure access control
  • Machinery guarding and safety door monitoring
  • Automation systems with safety interlock requirements
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable construction reduces replacement frequency and waste
  • Low power consumption of ≤7 W supports energy efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK I200-M0323 Safety Interlock is available for immediate purchase, ideal for industrial safety and machinery guarding applications.
