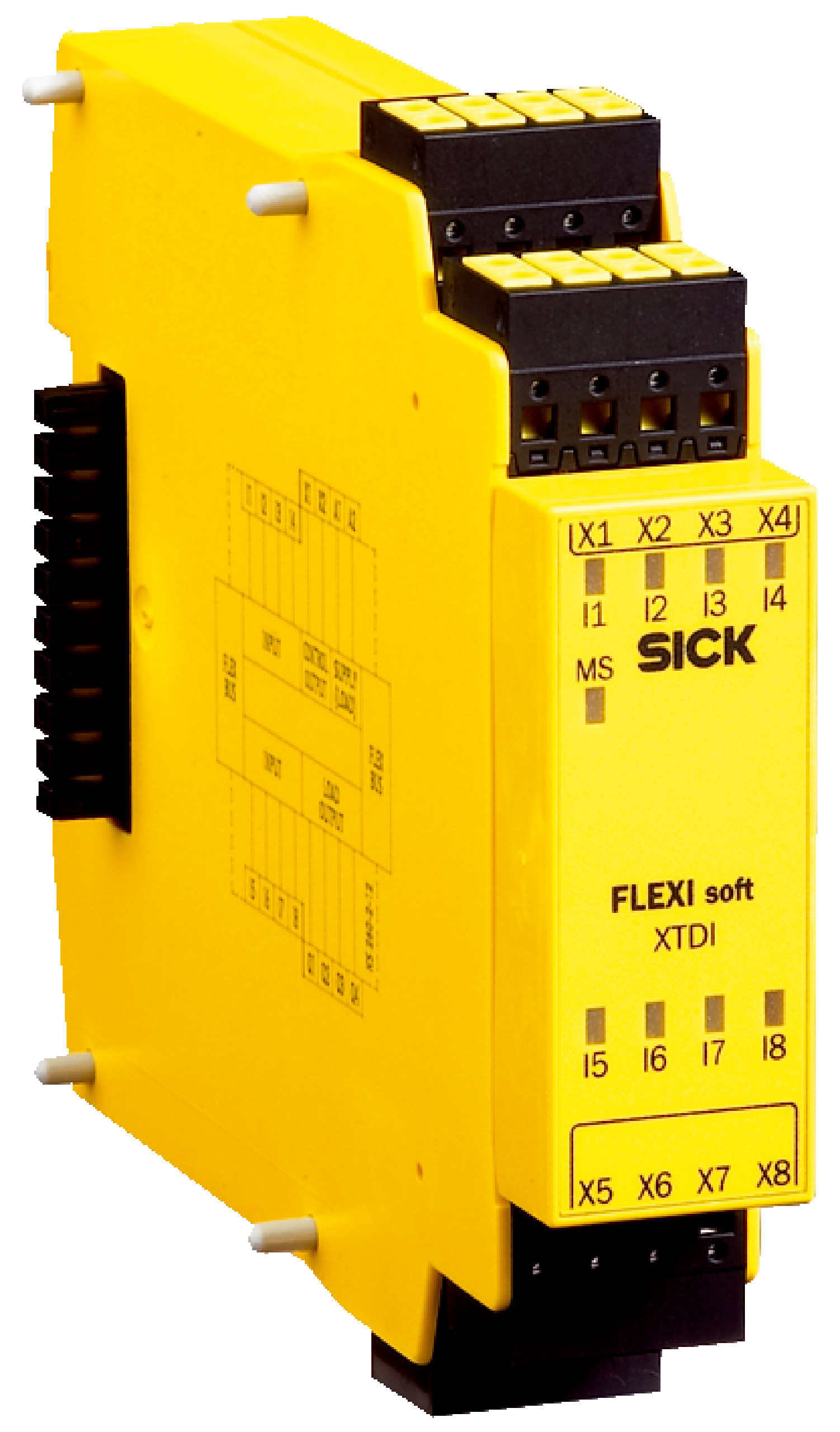

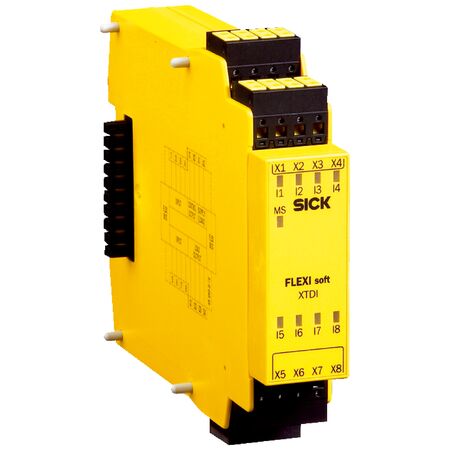

Safety I/O Module FX3-XTDI80012 | SIL 3 & Category 4 | 8 Safety Inputs | by SICK
The Safety I/O Module FX3-XTDI80012 is designed for industrial automation safety systems, featuring SIL 3 safety integrity and Category 4 compliance. With 8 safety inputs and 8 test outputs, this module ensures reliable machine safety monitoring in hazardous environments, making it ideal for applications requiring sulfur resistance and robust performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety I/O Module FX3-XTDI80012 | SIL 3 & Category 4 | 8 Safety Inputs | by SICK
Brand: SICK
SKU: 1050617
Alternatively Known As: Safety I/O Module, FX3 Safety Module, Flexi Soft I/O Module, Industrial Safety Controller Module
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD): 0.4 x 10^-9
- Mission time: 20 years
- Number of safety inputs: 8
- Number of test outputs: 8
- Connection type: Plug-in spring terminals
- Protection class: III (EN 61140)
- Voltage supply: Via FLEXBUS+
- Internal power consumption: ≤ 2 W
- Input voltage HIGH: 13 V DC to 30 V DC
- Input voltage LOW: –5 V DC to 5 V DC
- Input current HIGH: 2.4 mA to 3.8 mA
- Input current LOW: –2.5 mA to 2.1 mA
- Test outputs voltage supply: Via FLEXBUS+
- Type of output: PNP semiconductors, short-circuit protected
- Test pulse generator: 2
- Output voltage HIGH: 15 V DC to 30 V DC
- Output current: ≤ 120 mA
- Enclosure rating: IP20 (EN 60529)
- Ambient operating temperature: –25 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Air humidity: ≤ 95%, Non-condensing
- Single gas resistance (sulfur dioxide): 25 ppm, 21 days, 25 °C
- Mixed gas resistance: 100 ppb H2S, 2000 ppb NO2, 100 ppb Cl2, 2000 ppb SO2, 21 days, 30 °C
- Dimensions (H x L x W): 96.5mm x 120.6mm x 22.5mm
- Weight: 0.139 kg
Key Features
- I/O module configurable via Flexi Soft Designer software
- Protective coating for resistance to sulfur and challenging ambient conditions
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- 8 safety inputs and 8 test outputs with plug-in spring terminals
- Flexi Loop-compatible
- Short-circuit protected PNP semiconductor outputs
- Low internal power consumption (≤ 2 W)
- Wide ambient operating temperature range from –25 °C to +55 °C
- IP20 enclosure rating
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety systems and electrical standards.
Applications
- Industrial automation safety systems
- Machine safety monitoring
- Hazardous environment control requiring sulfur resistance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Protective coating extends product lifespan reducing waste
- Low power consumption minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK FX3-XTDI80012 I/O Safety Module is available for immediate purchase, ideal for industrial safety and automation applications requiring high reliability and environmental resistance.
