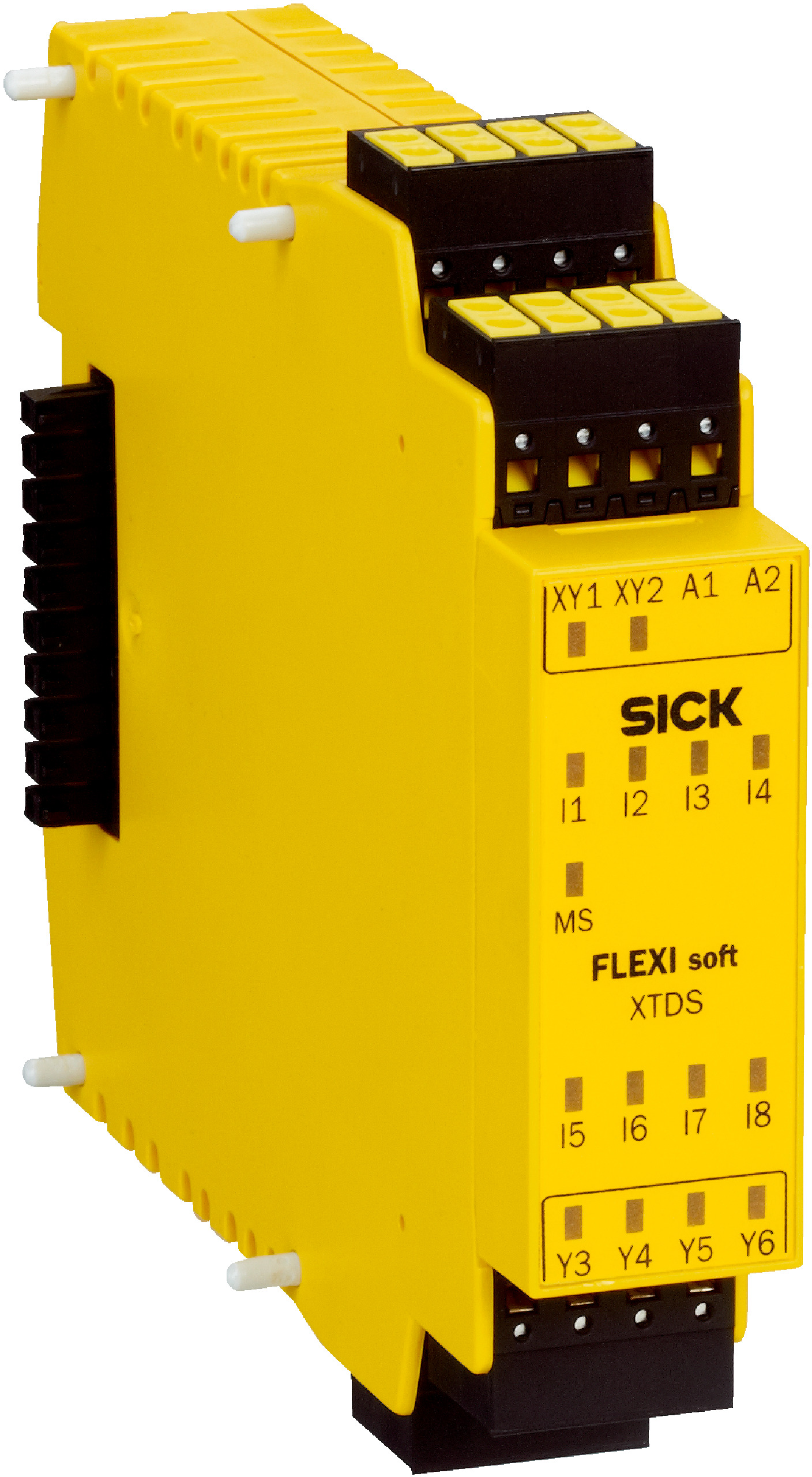

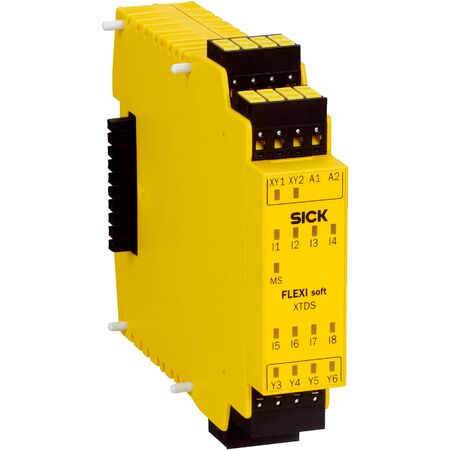

Safety I/O Module FX3-XTDS84002 | SIL 3 Safety Level | 8 Safety Inputs | Plug-in Spring Terminals | by SICK
The Safety I/O Module FX3-XTDS84002 is designed for industrial automation safety systems, featuring SIL 3 safety integrity and 8 safety inputs. Configurable via Flexi Soft Designer, it ensures reliable machine safety control with a low power consumption of ≤ 1.5 W. Ideal for applications requiring high safety levels, this module supports a mission time of 20 years, making it a durable choice for factory automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module type: I/O module
- Configuration method: Via software (Flexi Soft Designer, Safe EFI-pro System Safety Designer)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 0.4 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Number of safety inputs: 8
- Number of test outputs: 0-2
- Number of non-safe outputs: 4-6
- Connection type: Plug-in spring terminals
- Protection class: III (EN 61140)
- Voltage supply: Via A1, A2
- Internal power consumption: ≤ 1.5 W
- Input voltage HIGH: 13 V DC to 30 V DC
- Input voltage LOW: -5 V DC to 5 V DC
- Input current HIGH: 2.4 mA to 3.8 mA
- Input current LOW: -2.5 mA to 2.1 mA
- Test outputs voltage supply: Via FLEXBUS+
- Test outputs type: PNP semiconductors, short-circuit protected
- Test pulse generator: 2
- Output voltage HIGH: 16 V DC to 30 V DC
- Output current: ≤ 500 mA
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Type of supply voltage: PELV or SELV
- Dimensions (W x H x D): 22.5 mm x 96.5 mm x 120.6 mm
- Weight: 139 g (± 5%)
- Enclosure rating: IP20 (EN 60529)
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: ≤ 95%, Non-condensing
- Dimensions (H x L x W): 96.5mm x 120.6mm x 22.5mm
- Weight: 0.139 kg
Key Features
- I/O module configurable via Flexi Soft Designer and Safe EFI-pro System Safety Designer software
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD) of 0.4 x 10^-9
- 20 years mission time (TM)
- Flexi Loop-compatible
- 8 safety inputs, 0-2 test outputs, 4-6 non-safe outputs
- Plug-in spring terminal connections
- Protection class III (EN 61140)
- Low internal power consumption ≤ 1.5 W
- Input voltage range: HIGH 13 V DC to 30 V DC, LOW -5 V DC to 5 V DC
- Output voltage HIGH 16 V DC to 30 V DC, output current ≤ 500 mA
- Short-circuit protected PNP semiconductor outputs
- Enclosure rating IP20 (EN 60529)
- Operating temperature range -25 °C to +55 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety control systems and relevant standards.
Applications
- Industrial automation safety systems
- Machine safety control
- Factory automation requiring SIL 3 and PL e safety levels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Long mission time of 20 years reduces waste and replacement frequency
- Compliance with RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK FX3-XTDS84002 I/O Safety Module is available for immediate purchase. Ideal for industrial automation and machine safety applications requiring high safety integrity.
