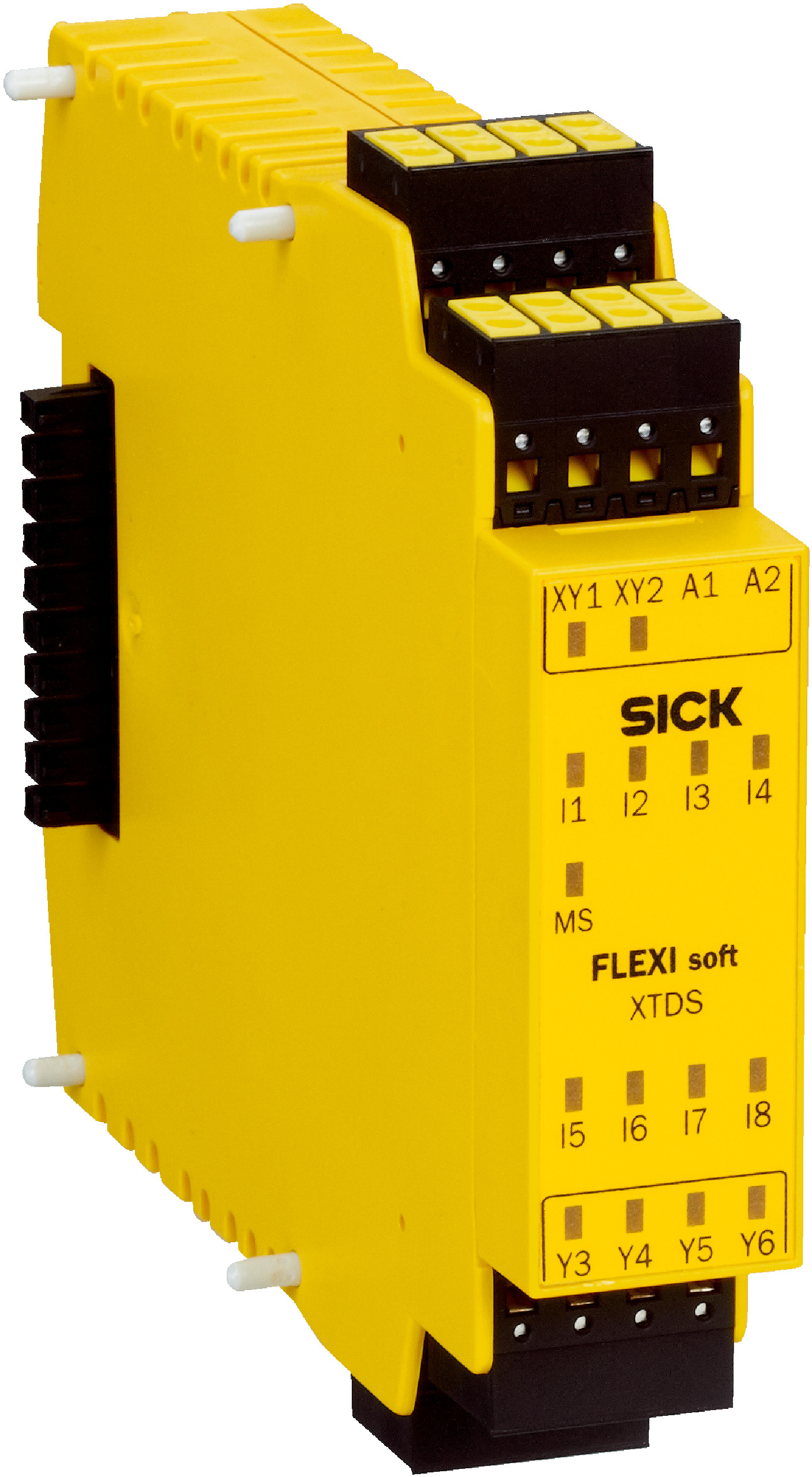

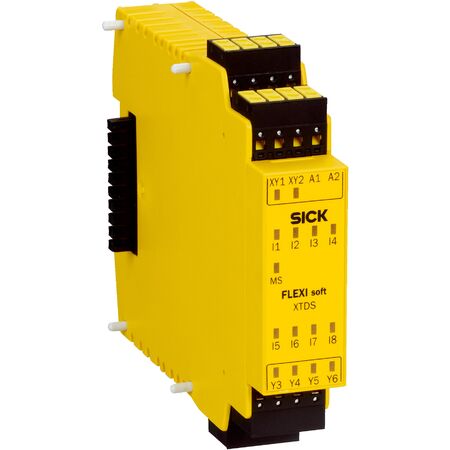

Safety I/O Module FX3-XTDS84012 | SIL 3 & PL e Certified | 8 Safety Inputs | by SICK
The Safety I/O Module FX3-XTDS84012 is designed for industrial automation safety systems, featuring SIL 3 and PL e certification for optimal machine safety control. With 8 safety inputs and a robust protective coating, this module ensures reliable performance in challenging environments, making it ideal for factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD): 0.4 x 10^-9
- Mission time: 20 years
- Number of safety inputs: 8
- Number of test outputs: 0-2
- Number of non-safe outputs: 4-6
- Connection type: Plug-in spring terminals
- Protection class: III (EN 61140)
- Voltage supply: 24 V DC (16.8 V DC to 30 V DC), PELV or SELV
- Output type: PNP semiconductors, short-circuit protected
- Output current: ≤ 500 mA
- Internal power consumption: ≤ 1.5 W
- Enclosure rating: IP20 (EN 60529)
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Humidity: ≤ 95%, non-condensing
- Sulfur dioxide resistance: 25 ppm for 21 days at 25 °C
- Mixed gas resistance: 100 ppb H2S, 2000 ppb NO2, 100 ppb Cl2, 2000 ppb SO2 for 21 days at 30 °C
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.139 kg
Key Features
- I/O module with protective coating for resistance to sulfur and challenging ambient conditions
- Configurable via Flexi Soft Designer and Safe EFI-pro System Safety Designer software
- Safety integrity level SIL 3 (IEC 61508), Category 4 (EN ISO 13849), Performance level PL e (EN ISO 13849)
- 8 safety inputs, 0-2 test outputs, 4-6 non-safe outputs with plug-in spring terminals
- Short-circuit protected PNP semiconductor outputs
- Flexi Loop-compatible
- Low internal power consumption ≤ 1.5 W
- Operating temperature range -25 °C to +55 °C
- IP20 enclosure rating
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety systems and relevant standards.
Applications
- Industrial automation safety systems
- Machine safety control
- Factory automation requiring SIL 3 and PL e safety levels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Protective coating extends product lifespan in harsh environments, reducing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FX3-XTDS84012 I/O Safety Module is available for immediate purchase, ideal for industrial automation and machine safety applications.
