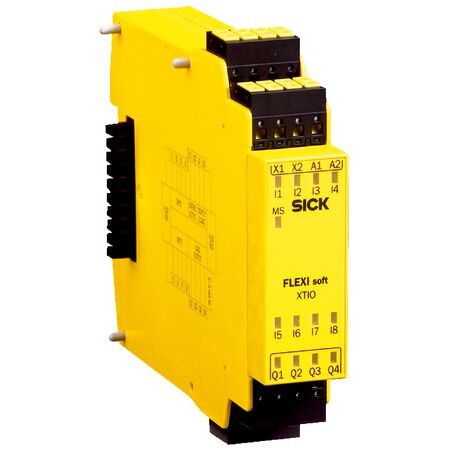

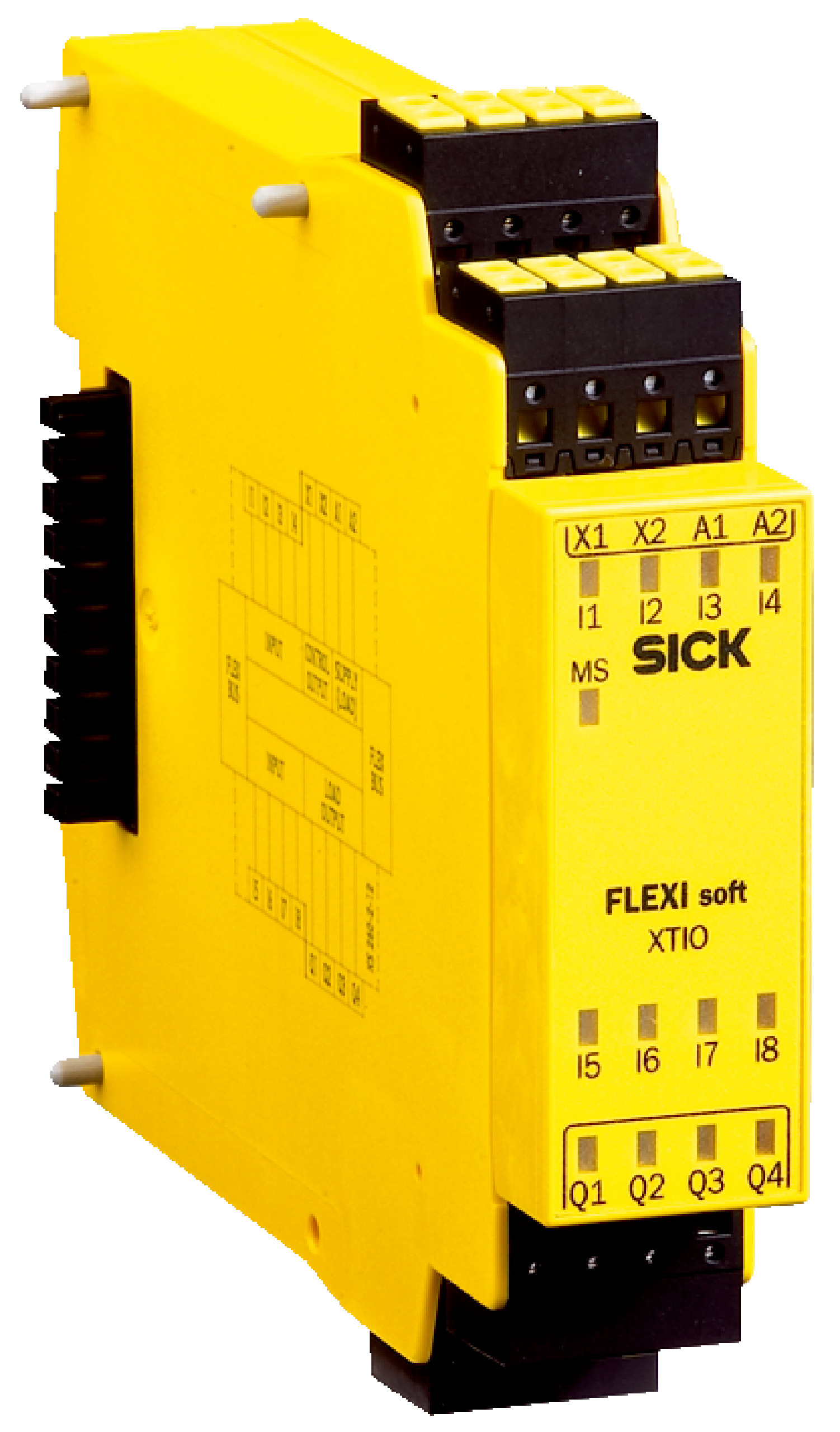

Safety I/O Module FX3-XTIO84002 | SIL 3 & Category 4 Compliance | Fast Shut-Off Time | by SICK
The Safety I/O Module FX3-XTIO84002 is engineered for industrial automation safety systems, featuring SIL 3 safety integrity and Category 4 compliance. With a rapid shut-off time of just 8 ms, it ensures quick safety responses, making it ideal for machine safety control and factory monitoring. Designed for long operational life, this module supports flexible system integration and easy wiring with plug-in spring terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety I/O Module FX3-XTIO84002 | SIL 3 & Category 4 Compliance | Fast Shut-Off Time | by SICK
Brand: SICK
SKU: 1044125
Alternatively Known As: Safety I/O Module, Industrial Safety Controller Module, FX3 XTIO 84002
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD): 4.8 x 10^-9
- Mission time: 20 years
- Number of safety inputs: 8
- Number of test outputs: 2
- Number of safe outputs: 4
- Connection type: Plug-in spring terminals
- Protection class: III (EN 61140)
- Voltage supply: 24 V DC (16.8 V DC to 30 V DC)
- Input voltage HIGH: 13 V DC to 30 V DC
- Input voltage LOW: -5 V DC to 5 V DC
- Output current: ≤ 2 A
- Enclosure rating: IP20 (EN 60529)
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -25 °C to +70 °C
- Humidity: ≤ 95%, non-condensing
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.164 kg
Key Features
- I/O module configurable via Flexi Soft Designer and Safe EFI-pro System: Safety Designer software
- Fast shut-off time of 8 ms for rapid safety response
- Flexi Loop-compatible for flexible system integration
- Plug-in spring terminal connections for easy wiring
- High safety integrity with SIL 3, Category 4, and Performance Level e compliance
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with industrial safety systems and electrical standards to ensure compliance and safety.
Applications
- Industrial automation safety systems
- Machine safety control
- Factory safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 2.2 W reduces energy usage
- Designed for long operational life with a mission time of 20 years, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FX3-XTIO84002 I/O Safety Module is available for immediate purchase, ideal for industrial automation and machine safety applications.
