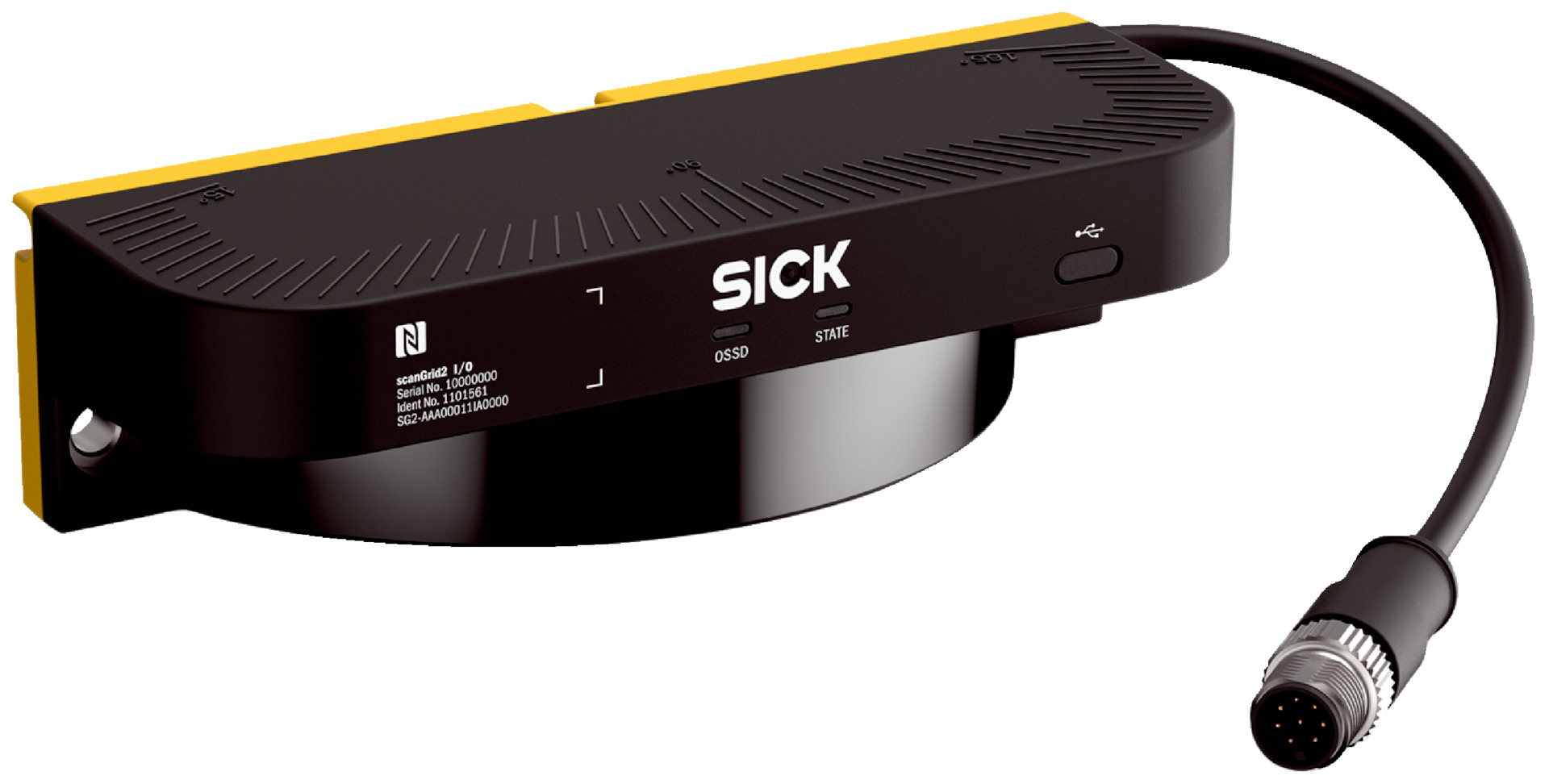

Safety Laser Scanner | 1.1m Protective Range | 150° Scanning Angle | IP65 Rated | by SICK
The Safety Laser Scanner is designed for industrial safety monitoring, featuring a protective field range of 1.1 m and a 150° scanning angle. With the ability to monitor up to 2 fields simultaneously and an IP65 rated enclosure, it ensures reliable machine safeguarding and access protection in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 1.1 m at 70 mm resolution
- Warning field range: 4 m at 70 mm resolution and 80% remission
- Number of monitored fields: up to 2 simultaneously, total 8 fields
- Scanning angle: 150°
- Resolution options: 50 mm, 70 mm, 150 mm, 200 mm
- Response time: ≥ 60 ms
- Safety type: Type 2 (IEC 61496-3)
- Safety integrity level: SIL 1 (IEC 61508)
- Performance level: PL c (ISO 13849-1)
- Power supply: 24 V DC (8.4 V to 30 V)
- Power consumption: ≤ 3 W
- Output: 2 semiconductor OSSD pairs, short-circuit protected, configurable PNP or NPN
- Inputs: 3 static control inputs
- Enclosure rating: IP65
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Housing material: Durabio front, polycarbonate back
- Laser wavelength: 850 nm, laser class 1
- Dimensions (H x L x W): 43mm x 56mm x 160mm
- Weight: 0.17 kg
Key Features
- Protective field range of 1.1 m at 70 mm resolution
- Warning field range of 4 m at 70 mm resolution and 80% remission
- Simultaneous monitoring of up to 2 fields
- 8 configurable fields and 4 monitoring cases
- 150° scanning angle with configurable resolution options (50 mm, 70 mm, 150 mm, 200 mm)
- Response time of at least 60 ms
- Type 2 safety device compliant with IEC 61496-3
- Safety integrity level SIL 1 and Performance level PL c
- IP65 rated enclosure for dust and water protection
- Integrated configuration memory and software configurability
- Multiple sampling and monitoring case switching supported
- Connector M12, 8-pin, A-coded interface with USB and NFC configuration options
- Pulsed laser diode with 850 nm wavelength and laser class 1
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with safety laser scanners and relevant safety standards.
Applications
- Industrial safety monitoring
- Machine safeguarding
- Access protection
- Area monitoring in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 3 W reduces energy usage
- Durable housing materials extend product lifespan, reducing waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

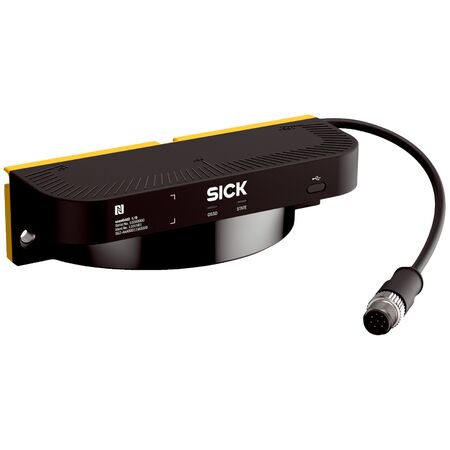

The SICK SG2-AAA00011IA0000 Safety Laser Scanner is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
