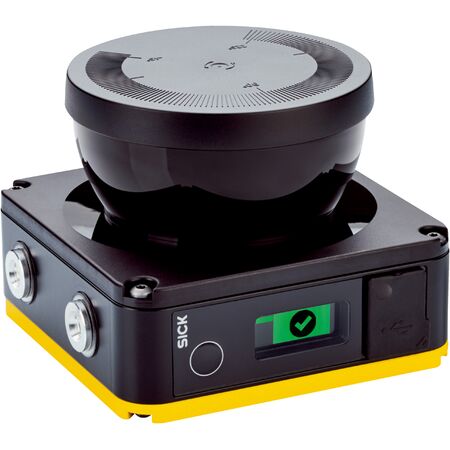

Safety Laser Scanner | 3m Protective Range | 10m Warning Range | SIL 2 Safety Rating | by SICK
The Safety Laser Scanner NANS3-AAAZ30AN1 offers a protective field range of 3 meters and a warning field range of 10 meters, making it ideal for indoor safety monitoring and industrial automation. With the ability to monitor up to 4 fields simultaneously and a scanning angle of 275°, this scanner ensures comprehensive machine and personnel protection, enhancing safety in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 3 m
- Warning field range: 10 m
- Distance measuring range: 40 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Scanning angle: 275°
- Configurable resolution: 20 mm to 200 mm
- Angular resolution: 0.17°
- Response time: 70 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 3.9 W typical
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Connection interfaces: USB 2.0 micro USB, Ethernet
- Display: Graphic color display and LEDs
- Laser type: Pulsed laser diode, wavelength 905 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 80mm x 118mm x 107mm
- Weight: 0.67 kg
Key Features
- Protective field range of 3 m and warning field range of 10 m
- Distance measuring range up to 40 m
- Simultaneous monitoring of up to 4 fields with 8 total fields
- 275° scanning angle with configurable resolution from 20 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety rating
- Multiple safety functions including restart interlock, external device monitoring, and safe contour detection
- Integrated configuration memory and measured data output via Ethernet
- Graphic color display and LEDs for status indication
- Robust IP65 rated aluminum housing with polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals trained in safety systems and laser scanner setup to ensure compliance with safety standards.
Applications
- Indoor safety monitoring
- Industrial automation safety
- Machine and personnel protection
- Obstacle detection and area monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 3.9 W
- Durable aluminum housing reduces material waste and extends product life
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK NANS3-AAAZ30AN1 nanoScan3 Core I/O Safety Laser Scanner is available for immediate purchase, ideal for industrial indoor safety and automation applications.
