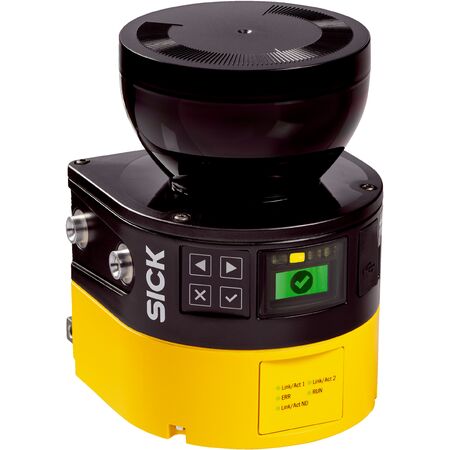

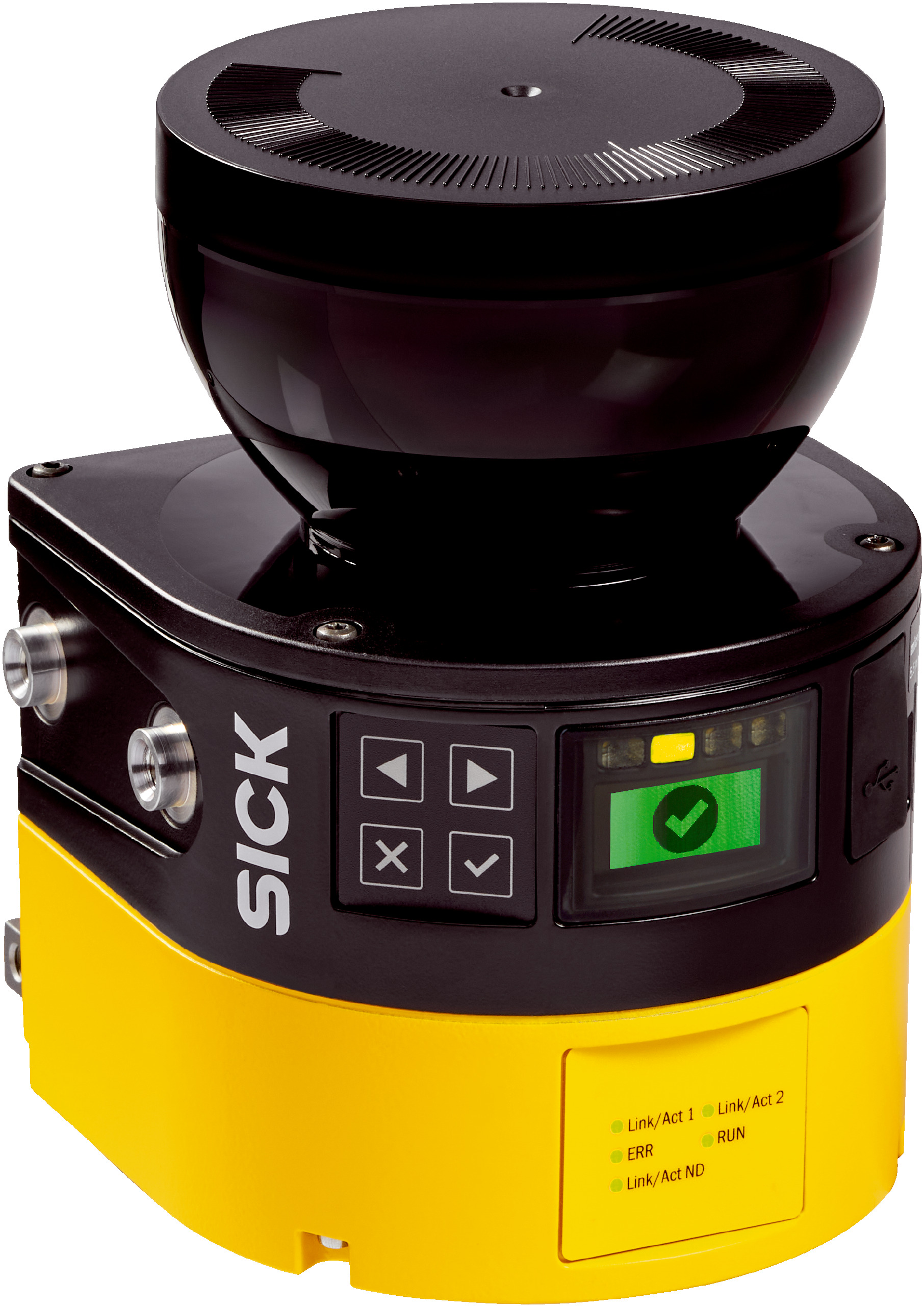

Safety Laser Scanner | 5.5m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The Safety Laser Scanner is designed for industrial safety and automation, featuring a protective field range of 5.5 meters and a 275° scanning angle. With SIL 2 safety integrity and the ability to monitor up to 4 fields simultaneously, it’s perfect for machine safeguarding and perimeter protection in factories and warehouses. Its robust IP65 rated housing ensures durability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 5.5 m
- Warning field range: 40 m
- Scanning angle: 275°
- Resolution configurable: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7.2 W
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Light source: Pulsed laser diode, wavelength 845 nm, laser class 1
- Interfaces: EtherCAT, USB 2.0, Mini-USB, Ethernet
- Configuration software: Safety Designer
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range of 5.5 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- EtherCAT industrial network with 4 safety outputs via network
- Graphic color display and LED indicators for status
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
- Pulsed laser diode light source with laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety standards and EtherCAT network setup.
Applications
- Indoor safety monitoring and protection
- Industrial automation and robotics
- Machine safeguarding and perimeter protection
- Factory and warehouse safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and replacement frequency
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK microScan3 Core - EtherCAT Safety Laser Scanner MICS3-ABAZ55EN1P01 is available for immediate purchase, ideal for industrial safety and automation applications.
