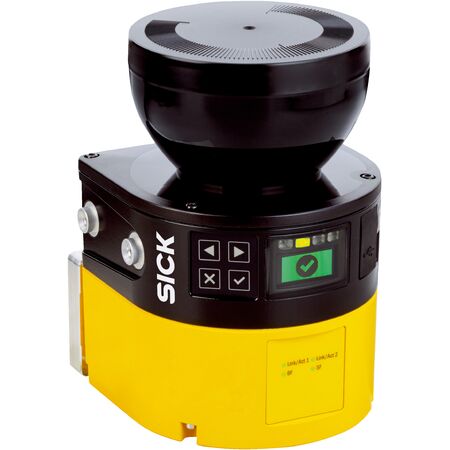

Safety Laser Scanner | 9m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The Safety Laser Scanner is designed for indoor safety monitoring and collision protection in industrial environments. With a protective field range of up to 9 meters and a 275° scanning angle, it ensures comprehensive coverage. Ideal for machine safeguarding and automated guided vehicles, this scanner features SIL 2 safety integrity and robust IP65-rated housing, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 9 m
- Warning field range: 64 m
- Collision protection field range: 19 m on reference target
- Number of simultaneously monitored fields: up to 4
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 115 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7.2 W
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Communication: PROFINET with PROFIsafe protocol
- Configuration via PC Safety Designer software
- Display: Graphic color display with LEDs
- Laser wavelength: 845 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.65 kg
Key Features
- Protective field range up to 9 m and warning field range up to 64 m
- Simultaneous monitoring of up to 4 fields with 128 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Integrated PROFINET and PROFIsafe communication with 8 safety outputs via network
- Graphic color display and LEDs for status indication
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
- Pulsed laser diode light source with laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals trained in safety systems and PROFINET network setup to ensure compliance with safety standards.
Applications
- Indoor safety monitoring and collision protection in industrial environments
- Machine safeguarding and perimeter protection
- Automated guided vehicles (AGVs) and robotics safety
- Factory automation requiring multi-field safety laser scanning
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Energy-efficient operation with low power consumption of 7.2 W
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK microScan3 Pro PROFINET Safety Laser Scanner MICS3-CCAZ90PZ1P01 is available for immediate purchase, ideal for industrial indoor safety and automation applications.
