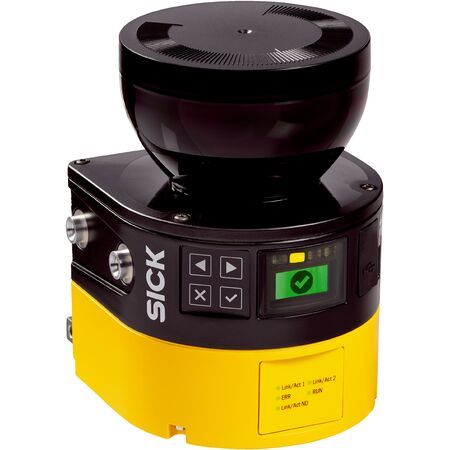

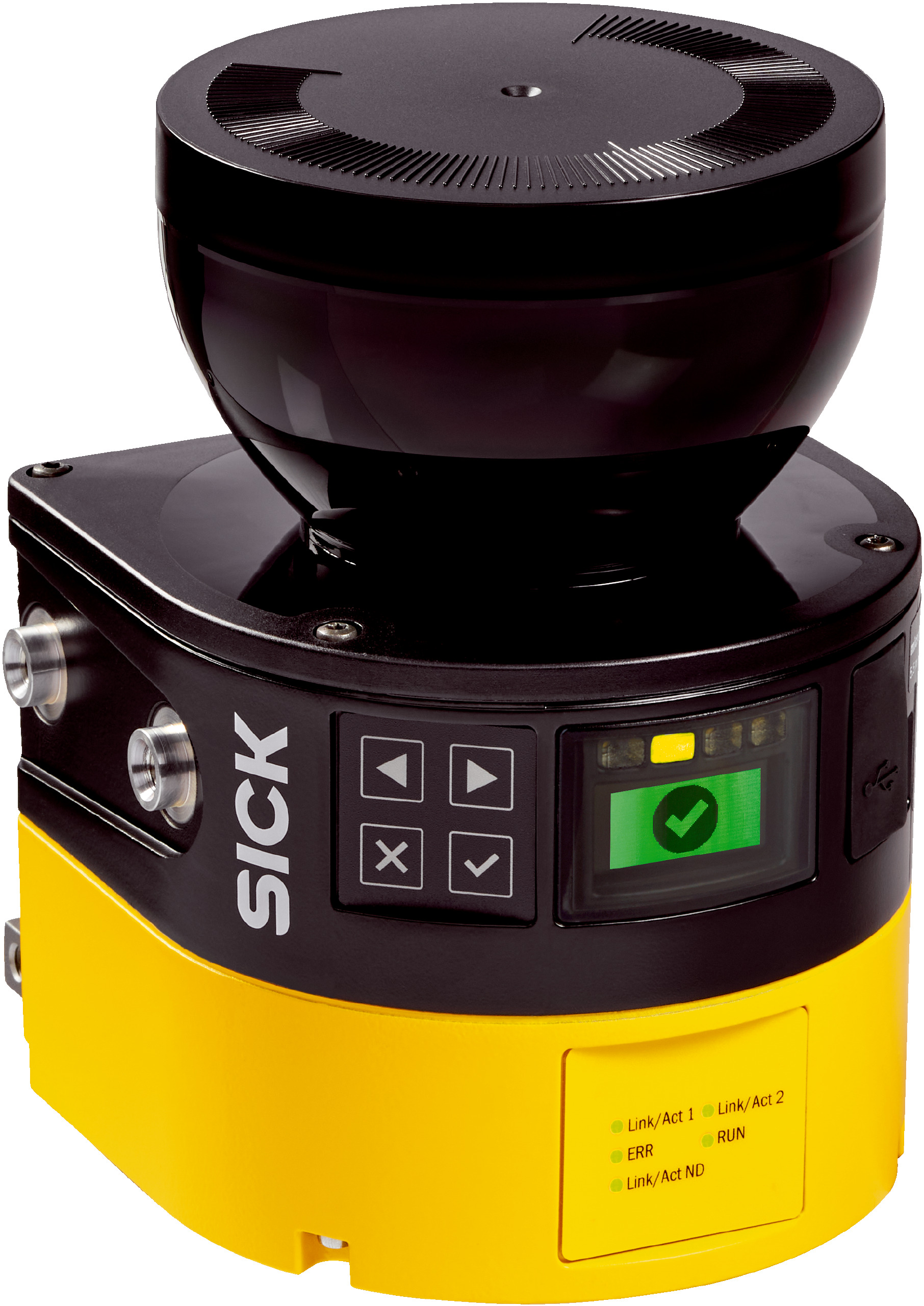

Safety Laser Scanner | 9m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The Safety Laser Scanner is designed for industrial automation and safety monitoring, featuring a protective field range of up to 9 meters and a wide scanning angle of 275°. With SIL 2 safety integrity and the ability to monitor up to 4 fields simultaneously, it ensures optimal protection in various applications, including machine safeguarding and perimeter security. Its robust IP65-rated housing and energy-efficient operation make it a reliable choice for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 9 m
- Warning field range: 64 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Number of monitoring cases: 8
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 115 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7.2 W
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Data interface: Ethernet for data output, configuration and diagnostics
- Fieldbus: EtherCAT with FSoE protocol
- Display: Graphic color display and LEDs
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range up to 9 m and warning field range up to 64 m
- Simultaneous monitoring of up to 4 fields with 8 fields and 8 monitoring cases
- Wide scanning angle of 275° with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 with Performance Level PL d
- Safe state output via network logic 0 in case of fault
- Multiple safety functions including restart interlock, multiple sampling, and safe contour detection
- EtherCAT industrial network with 4 safety outputs via network
- Graphic color display and LEDs for status indication
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Professional installation by qualified personnel with experience in industrial safety systems and EtherCAT network configuration is recommended to ensure compliance and optimal performance.
Applications
- Indoor safety monitoring and protection
- Industrial automation and robotics
- Machine safeguarding
- Area and perimeter protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and replacement frequency
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK microScan3 Core - EtherCAT Safety Laser Scanner MICS3-ABAZ90EN1P01 is available for immediate purchase, ideal for industrial safety and automation applications.
