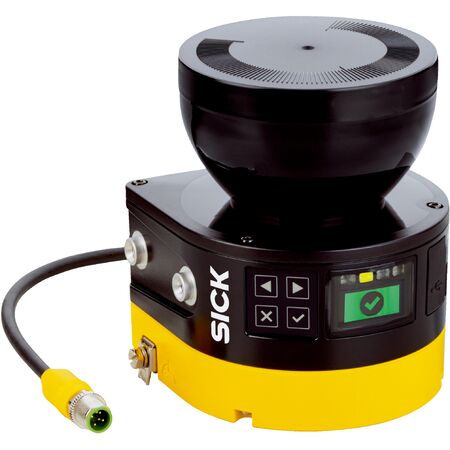

Safety Laser Scanner microScan3 Core I/O | 5.5m Range | 275° Scanning Angle | SIL 2 Compliance | by SICK
The Safety Laser Scanner microScan3 Core I/O is designed for indoor safety monitoring in industrial automation, featuring a protective field range of 5.5 meters and a 275° scanning angle. With Type 3 safety compliance and SIL 2 integrity, it ensures reliable machine safeguarding and perimeter protection. Ideal for robotics and automated guided vehicles, this robust sensor offers a graphic color display for easy status indication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 5.5 m
- Number of simultaneously monitored fields: ≤ 4
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 70 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Connection type: Male connector, M12, 5 pin, A-coded
- Outputs: 1 OSSD pair
- Configuration: PC with Safety Designer software
- Display: Graphic color display with LEDs
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7 W typical
- Housing material: Aluminum
- Optics cover: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 135mm x 111mm x 112mm
- Weight: 1.15 kg
Key Features
- Protective field range of 5.5 m with up to 4 simultaneously monitored fields
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Type 3 safety (IEC 61496) with SIL 2 and Category 3 (EN ISO 13849) compliance
- Response time of 70 ms and safe state output on fault
- Multiple sampling and simultaneous monitoring capabilities
- Graphic color display with LEDs for status indication
- USB 2.0 Mini-USB interface for configuration and diagnostics
- Robust aluminum housing with polycarbonate optics cover and IP65 rating
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with safety sensor systems and industrial automation standards.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Robotics and automated guided vehicles (AGVs)
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7 W
- Durable construction reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK microScan3 Core I/O AIDA Safety Sensor is available for immediate purchase, ideal for indoor industrial safety and automation applications.
