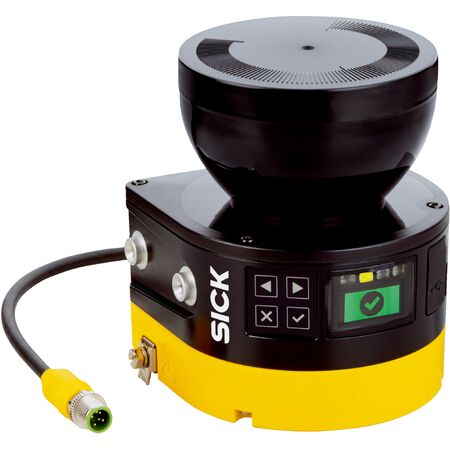

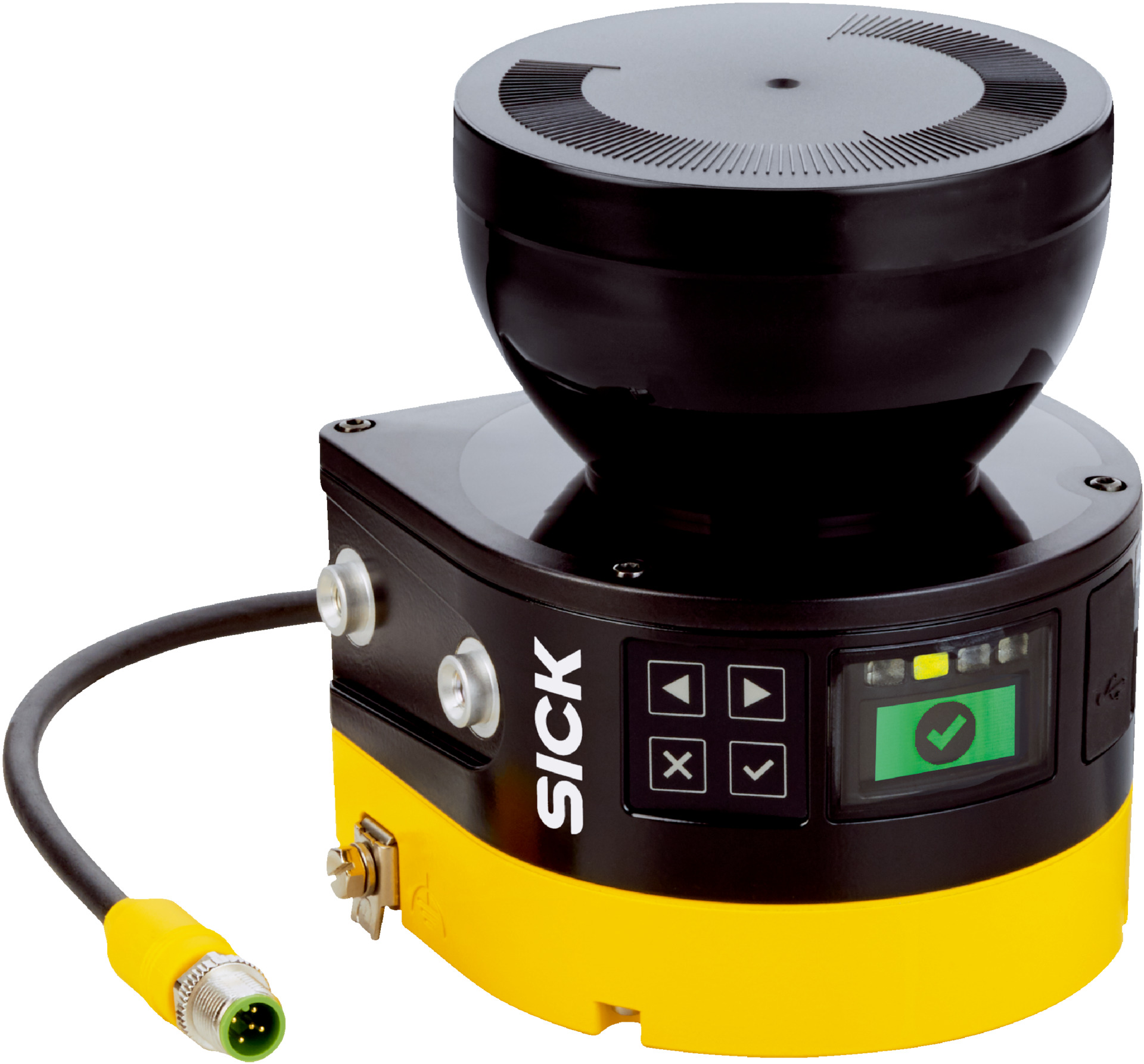

Safety Laser Scanner microScan3 Core I/O | 9m Range | 275° Scanning Angle | SIL 2 Compliant | by SICK
The Safety Laser Scanner microScan3 Core I/O is designed for reliable indoor safety monitoring in industrial automation. With a protective field range of 9 meters and the ability to monitor up to 4 fields simultaneously, it ensures optimal machine safeguarding and perimeter protection. This Type 3 safety sensor features a 275° scanning angle and configurable resolution, making it ideal for robotics and automated guided vehicles (AGVs).
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 9 m
- Number of simultaneously monitored fields: up to 4
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 90 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7 W typical
- Connection: Male M12, 5 pin, A-coded connector
- Configuration interface: USB 2.0 Mini-USB
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: –10 °C to +50 °C
- Storage temperature: –25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Laser wavelength: 845 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 135mm x 111mm x 112mm
- Weight: 1.15 kg
Key Features
- Protective field range of 9 m with up to 4 simultaneously monitored fields
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Type 3 safety sensor compliant with IEC 61496
- Safety integrity level SIL 2 and Performance level PL d
- Integrated configuration memory and safe contour detection
- Graphic color display with LEDs for status indication
- Robust aluminum housing with polycarbonate optics cover and scratch-resistant coating
- IP65 rated enclosure for dust and water protection
- Operating temperature range from –10 °C to +50 °C
- Pulsed laser diode light source with laser class 1 safety
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety sensor integration and configuration using Safety Designer software to ensure compliance with safety standards.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Robotics and automated guided vehicles (AGVs)
- Factory automation requiring reliable safety sensors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7 W
- Durable construction reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK microScan3 Core I/O AIDA Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications requiring reliable and configurable safety monitoring.
