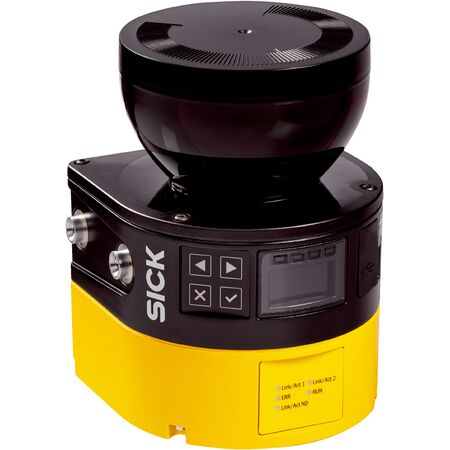

Safety Laser Scanner microScan3 Core | 4m Protective Range | 275° Scanning Angle | SIL 2 Compliance | by SICK
The Safety Laser Scanner microScan3 Core is designed for indoor safety monitoring in industrial automation, featuring a protective field range of 4 m and a wide scanning angle of 275°. With SIL 2 safety integrity and the ability to monitor up to 4 fields simultaneously, it ensures robust machine safeguarding and perimeter protection. Built with a durable aluminum housing and IP65 rating, this scanner is perfect for hazardous area monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Laser Scanner microScan3 Core | 4m Protective Range | 275° Scanning Angle | SIL 2 Compliance | by SICK
Brand: SICK
SKU: 1108231
Alternatively Known As: microScan3 Core Safety Laser Scanner, SICK Safety Scanner, EtherCAT Safety Laser Scanner
Technical Specifications
- Product version: microScan3 Core - EtherCAT
- Protective field range: 4 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Number of monitoring cases: 8
- Scanning angle: 275°
- Resolution (configurable): 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 4-pin A-coded for voltage supply, 2 x female M12 4-pin D-coded for EtherCAT
- Configuration method: PC with Safety Designer software
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7.2 W
- Housing material: Aluminum with polycarbonate optics cover
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10°C to +50°C
- Laser wavelength: 845 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.5 kg
Key Features
- Protective field range of 4 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 monitoring cases
- Wide scanning angle of 275° with configurable resolution options
- Safety integrity level SIL 2 and Category 3 safety compliance
- EtherCAT industrial network with 4 safety outputs via network
- Integrated configuration memory and multiple sampling functions
- Graphic color display with LEDs for status indication
- Robust aluminum housing with IP65 protection rating
- Operating temperature range from -10°C to +50°C
- Pulsed laser diode with laser class 1 safety
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety laser scanners and EtherCAT network configuration to ensure compliance with safety standards.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Hazardous area monitoring with safety laser scanning
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable design reduces waste and extends product lifecycle
- Complies with RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MICS3-ABAZ40EN1 Safety Laser Scanner is available for immediate purchase, ideal for industrial indoor safety monitoring and machine safeguarding applications.
