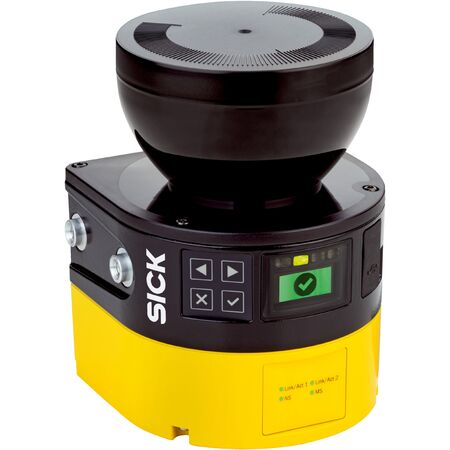

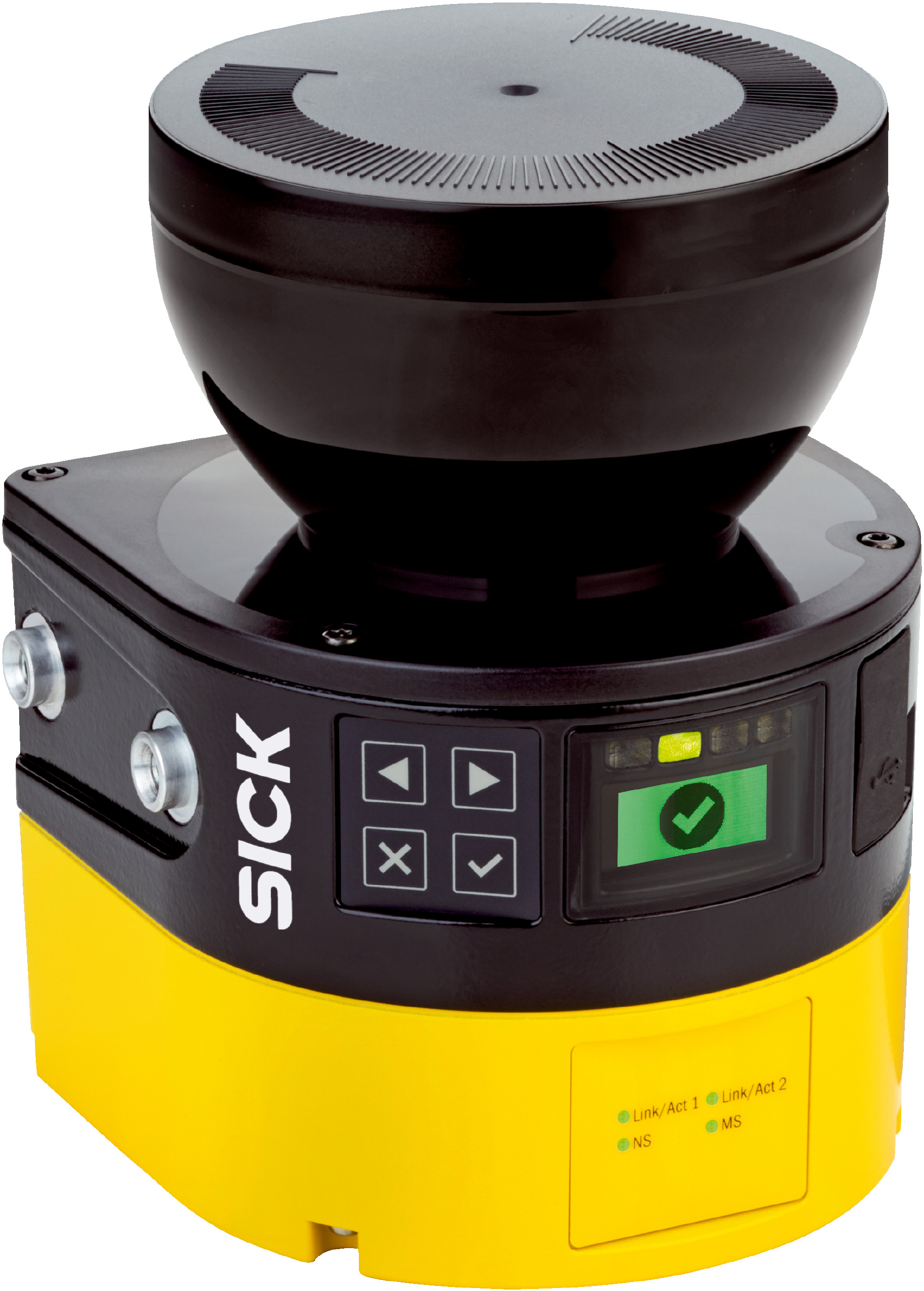

Safety Laser Scanner microScan3 Core | 4m Protective Range | 40m Warning Range | 275° Scanning Angle | by SICK
The Safety Laser Scanner microScan3 Core is designed for indoor safety monitoring in industrial automation, featuring a protective field range of 4 m and a warning field range of 40 m. With the ability to monitor up to 4 fields simultaneously and a 275° scanning angle, it ensures comprehensive machine safeguarding and perimeter protection, making it ideal for hazardous area detection and access control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Core - EtherNet/IP
- Protective field range: 4 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Number of monitoring cases: 8
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 4-pin A-coded for voltage supply, 2 x female M12 4-pin D-coded for fieldbus
- Fieldbus: EtherNet/IP™ with CIP Safety™
- Configuration: PC with Safety Designer software
- Display: Graphic color display with LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7.2 W typical
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 (IEC 60529)
- Ambient operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance: IEC 60068 series standards
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range of 4 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Type 3 safety (IEC 61496) with SIL 2, Category 3, and PL d performance levels
- Integrated configuration memory and measured data output via Ethernet
- Multiple interfaces including EtherNet/IP, USB 2.0, Mini-USB
- Graphic color display with LEDs for status indication
- Robust aluminum housing with IP65 rating and scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals trained in safety systems and industrial network setup to ensure compliance with safety standards.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Hazardous area detection and access control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and replacement frequency
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK microScan3 Core EtherNet/IP Safety Laser Scanner MICS3-ABAZ40IZ1P01 is available for immediate purchase, ideal for indoor industrial safety and automation applications.
