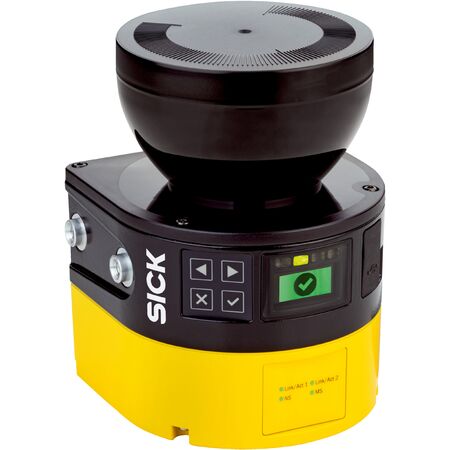

Safety Laser Scanner microScan3 Core | 5.5m Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The Safety Laser Scanner microScan3 Core is designed for indoor industrial safety monitoring, featuring a protective field range of 5.5 m and a warning field range of 40 m. With the ability to monitor up to 4 fields simultaneously and a 275° scanning angle, it ensures comprehensive machine safeguarding and access protection. Built for reliability, it operates within a temperature range of -10 °C to +50 °C and is housed in a robust IP65-rated aluminum casing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Core - PROFINET
- Protective field range: 5.5 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Number of monitoring cases: 8
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 4-pin A-coded for voltage supply, 2 x female M12 4-pin D-coded for PROFINET
- Configuration method: PC with Safety Designer software
- Configuration and diagnostics interface: USB 2.0, Mini-USB, Ethernet
- Fieldbus protocol: PROFIsafe over PROFINET
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7.2 W
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range of 5.5 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 fields and 8 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Safe state output via network logic 0 in case of fault
- Multiple safety functions including restart interlock, multiple sampling, and safe contour detection
- Integrated configuration memory and measured data output via Ethernet
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
- Comprehensive diagnostics and configuration via USB, Mini-USB, and Ethernet
- PROFINET industrial network with PROFIsafe protocol support
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety standards and PROFINET network setup.
Applications
- Indoor industrial safety monitoring
- Machine safeguarding
- Access protection
- Area monitoring in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and replacement frequency
- Supports safe and efficient industrial automation enhancing operational sustainability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK microScan3 Core PROFINET Safety Laser Scanner MICS3-ABAZ55PZ1P01 is available for immediate purchase, ideal for indoor industrial safety and machine safeguarding applications.
