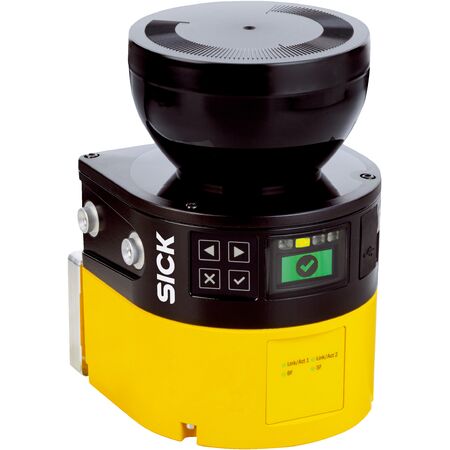

Safety Laser Scanner microScan3 Core | 9m Protective Range | 275° Scanning Angle | SIL 2 Certified | by SICK
The Safety Laser Scanner microScan3 Core is designed for industrial safety monitoring, featuring a protective field range of up to 9 meters and a 275° scanning angle. Ideal for machine safeguarding and area protection, it supports simultaneous monitoring of up to 4 fields with a response time of 115 ms. Built with a robust IP65 rated aluminum housing, this scanner ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Core - PROFINET
- Protective field range: 9 m
- Warning field range: 64 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Number of monitoring cases: 8
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 115 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 5-pin L-coded, 2 x female RJ45 for PROFINET
- Fieldbus: PROFINET with PROFIsafe protocol
- Configuration: PC with Safety Designer software
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7.2 W typical
- Housing material: Aluminum
- Optics cover: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.65 kg
Key Features
- Protective field range up to 9 m and warning field range up to 64 m
- Simultaneous monitoring of up to 4 fields with 8 fields and 8 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 with Performance Level PL d
- Response time of 115 ms with safe contour detection and restart interlock
- Multiple interfaces including PROFINET with PROFIsafe protocol
- Graphic color display and LEDs for status indication
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Wide ambient operating temperature range from -10 °C to +50 °C
- Certified with multiple international standards and declarations of conformity
Professional Installation Requirements
- Professional installation by qualified personnel with experience in industrial safety systems and PROFINET network configuration is recommended.
Applications
- Indoor safety monitoring and protection
- Industrial automation and robotics
- Machine safeguarding
- Area and perimeter protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and extends product lifecycle
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK microScan3 Core PROFINET Safety Laser Scanner MICS3-ACAZ90PZ1P01 is available for immediate purchase, ideal for industrial indoor safety and automation applications.
