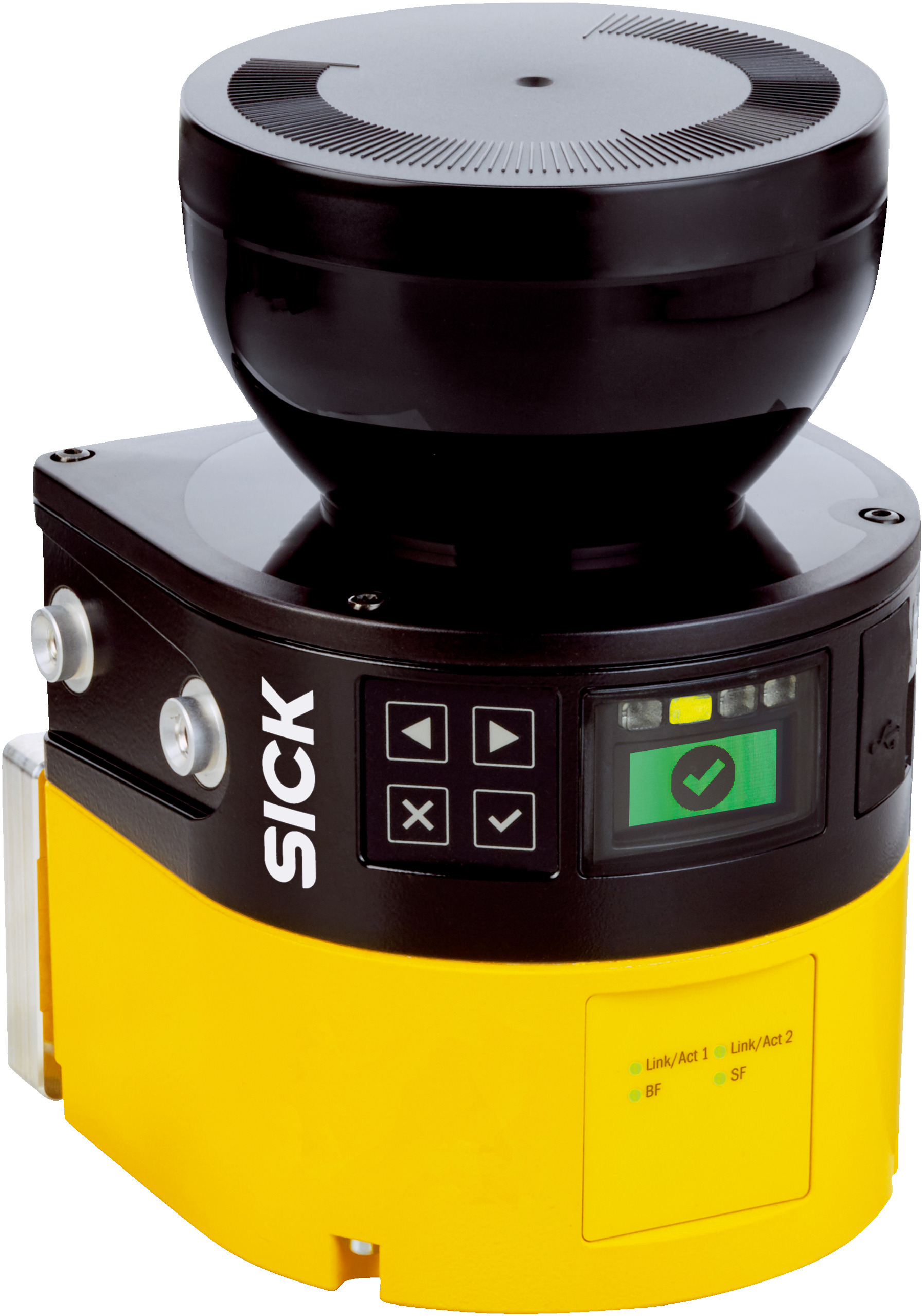

Safety Laser Scanner microScan3 Core | 9m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The Safety Laser Scanner microScan3 Core is designed for indoor industrial safety monitoring, featuring a protective field range of up to 9 meters and a wide scanning angle of 275°. With SIL 2 safety integrity and the ability to monitor up to 4 fields simultaneously, it ensures optimal machine safeguarding and area protection in manufacturing environments. Its robust IP65-rated aluminum housing and low power consumption make it a reliable choice for automated guided vehicle safety and more.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Core - PROFINET
- Protective field range: 9 m
- Warning field range: 64 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Number of monitoring cases: 8
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 115 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection: 1x M12 5-pin L-coded male connector for voltage supply, 2x SCRJ female connectors for optical fibers
- Fieldbus: PROFINET with PROFIsafe protocol
- Configuration: PC with Safety Designer software, USB 2.0, Mini-USB, Ethernet
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 8.4 W typical
- Housing: Aluminum with RAL 1021 yellow and RAL 9005 black colors
- Optics cover: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance: IEC standards compliant
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.65 kg
Key Features
- Protective field range up to 9 m and warning field range up to 64 m
- Simultaneous monitoring of up to 4 fields with 8 monitoring cases
- Wide scanning angle of 275° with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Fast response time of 115 ms
- Multiple safety functions including restart interlock, multiple sampling, and safe contour detection
- PROFINET communication with PROFIsafe protocol support
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
- Comprehensive diagnostics and configuration via USB, Mini-USB, and Ethernet
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety systems and PROFINET networks to ensure compliance and optimal performance.
Applications
- Indoor industrial safety monitoring
- Machine safeguarding
- Area protection in manufacturing environments
- Automated guided vehicle (AGV) safety
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 8.4 W
- Durable construction reduces waste and replacement frequency
- Supports PROFIenergy for optimized energy management in industrial networks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

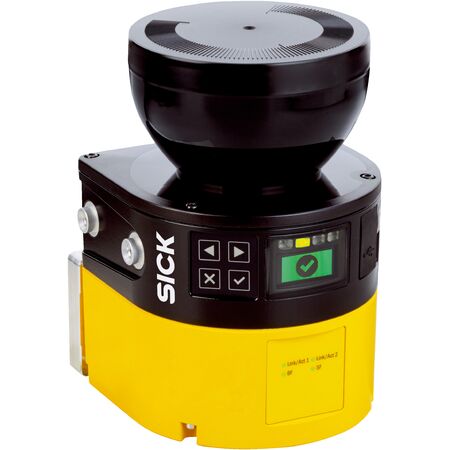

The SICK microScan3 Core PROFINET Safety Laser Scanner MICS3-ACAZ90LZ1P01 is available for immediate purchase, ideal for indoor industrial safety and machine safeguarding applications.
