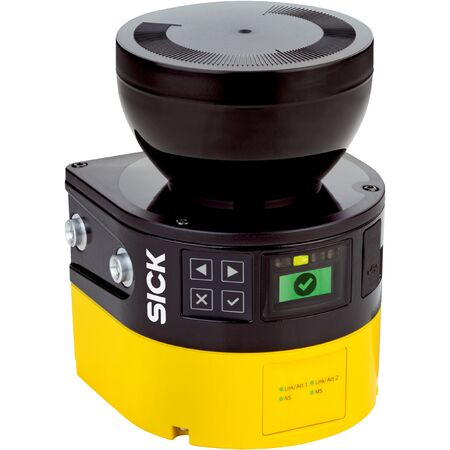

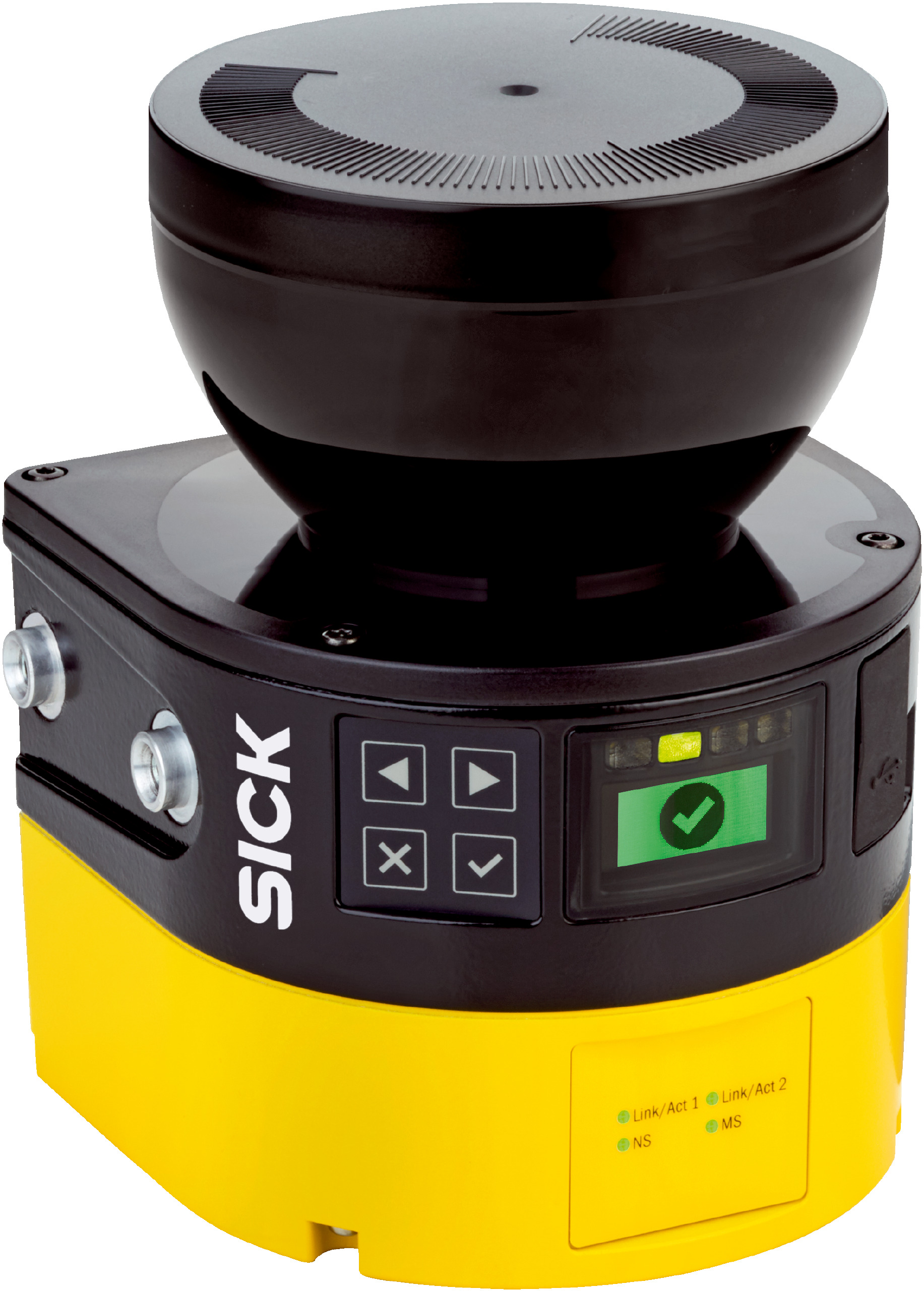

Safety Laser Scanner microScan3 Core EFI-pro | 5.5m Range | 275° Scanning Angle | SIL 2 Certified | by SICK
The microScan3 Core EFI-pro Safety Sensor is a cutting-edge safety laser scanner designed for indoor industrial automation. With a protective field range of 5.5 m and a warning field range of 40 m, it ensures reliable machine safeguarding and perimeter protection. Ideal for factory automation, this sensor features a 275° scanning angle, SIL 2 safety integrity level, and a robust aluminum housing with an IP65 rating, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Core - EFI-pro
- Protective field range: 5.5 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Number of monitoring cases: 8
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 4-pin A-coded for voltage supply, 2 x female M12 4-pin D-coded for EFI-pro network
- Outputs: 4 safety outputs via network
- Configuration: PC with Safety Designer software
- Interfaces: USB 2.0, Mini-USB, Ethernet
- Data interface: EtherNet/IP CIP Safety, CoLa 2, DHCP, SNMP, SNTP
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7.2 W typical
- Housing material: Aluminum with polycarbonate optics cover
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range of 5.5 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 fields and 8 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 with Performance Level PL d
- Response time of 95 ms with safe state logic outputs on fault
- Integrated configuration memory and safe SICK device communication via EFI-pro
- Multiple interfaces including USB 2.0, Mini-USB, Ethernet, and EFI-pro fieldbus
- Graphic color display and LEDs for status indication
- Robust aluminum housing with polycarbonate optics cover and IP65 rating
- Wide ambient operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals trained in safety sensor systems to ensure compliance with safety standards and optimal performance.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Factory automation requiring reliable safety sensors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable design reduces waste and replacement frequency
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MICS3-ABAZ55ZA1P01 microScan3 Core EFI-pro Safety Sensor is available for immediate purchase, ideal for indoor industrial safety and automation applications.
