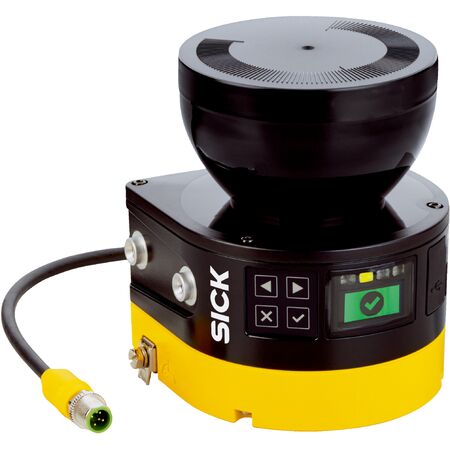

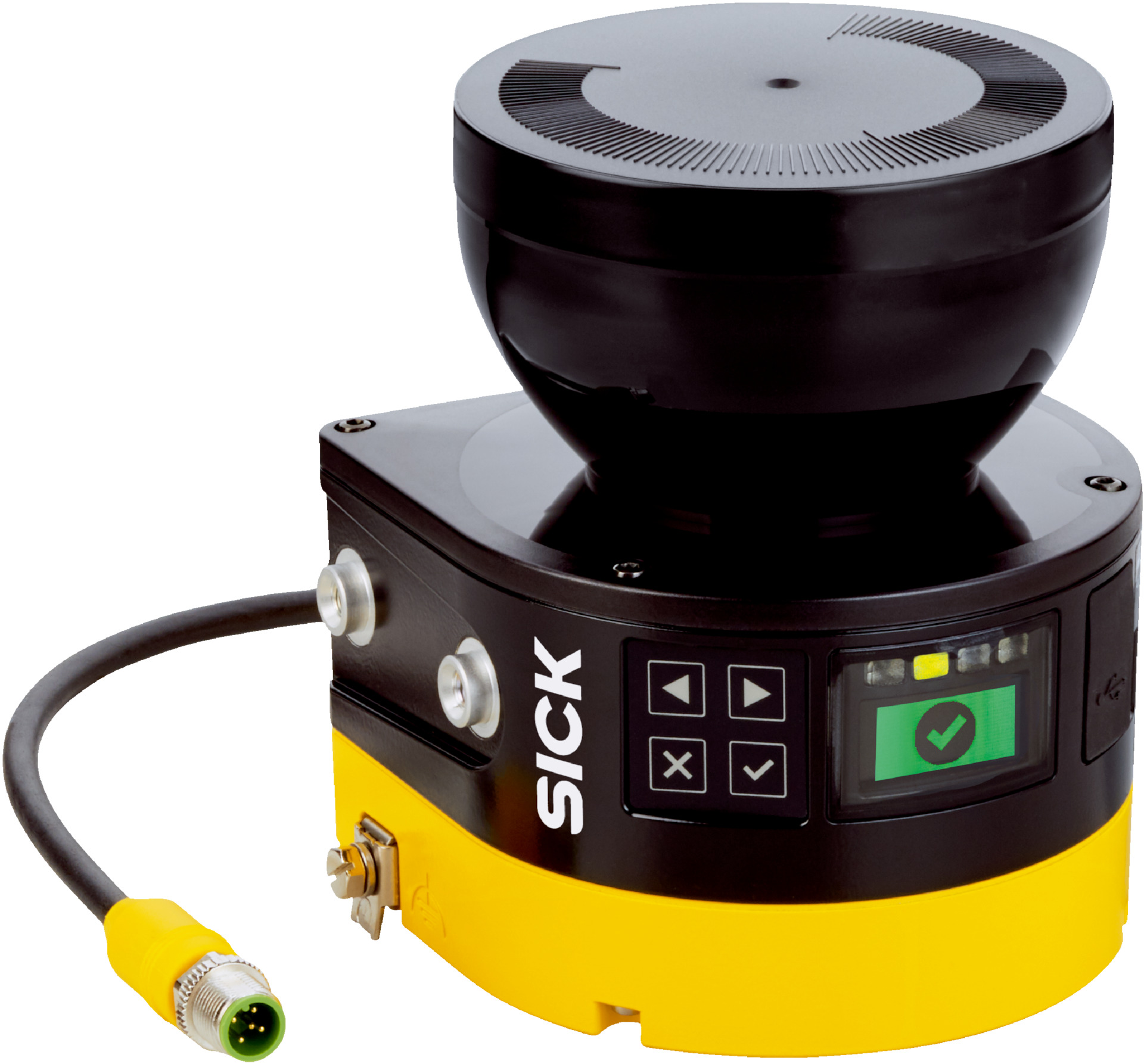

Safety Laser Scanner microScan3 Core I/O AIDA | 4m Range | 275° Scanning Angle | SIL 2 Safety Rating | by SICK
The microScan3 Core I/O AIDA Safety Sensor is a cutting-edge safety laser scanner designed for indoor safety monitoring in industrial automation. With a protective field range of 4 meters and the ability to monitor up to 4 fields simultaneously, it ensures optimal machine safeguarding and perimeter protection. Featuring a robust aluminum housing and an IP65 rating, this sensor operates efficiently in temperatures from -10 °C to +50 °C, making it ideal for various applications including robotics and automated guided vehicles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 4 m
- Number of simultaneously monitored fields: ≤ 4
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.39°
- Response time: 70 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7 W typical
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: –10 °C to +50 °C
- Shock resistance: 100 m/s², 16 ms continuous shock
- Vibration resistance: IEC 60068-2-6, IEC 60068-2-64
- Light source: Pulsed laser diode, wavelength 845 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 135mm x 111mm x 112mm
- Weight: 1.15 kg
Key Features
- Protective field range of 4 m with up to 4 simultaneously monitored fields
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Type 3 safety sensor with SIL 2, Category 3, and PL d safety ratings
- Multiple sampling and simultaneous monitoring capabilities
- Graphic color display and LEDs for status indication
- Robust aluminum housing with IP65 rating and scratch-resistant polycarbonate optics cover
- Operating temperature range from –10 °C to +50 °C
- Pulsed laser diode light source with laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel trained in safety sensor systems and compliant with local safety regulations.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Robotics and automated guided vehicles (AGVs)
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7 W
- Durable design reduces waste and replacement frequency
- Complies with RoHS and China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MICS3-AAAZ40BZ1P01 microScan3 Core I/O AIDA Safety Sensor is available for immediate purchase, ideal for industrial indoor safety monitoring applications.
