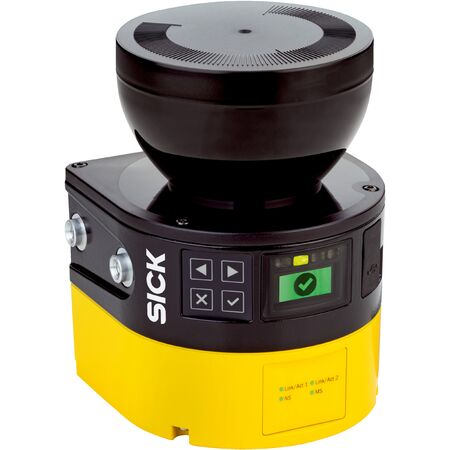

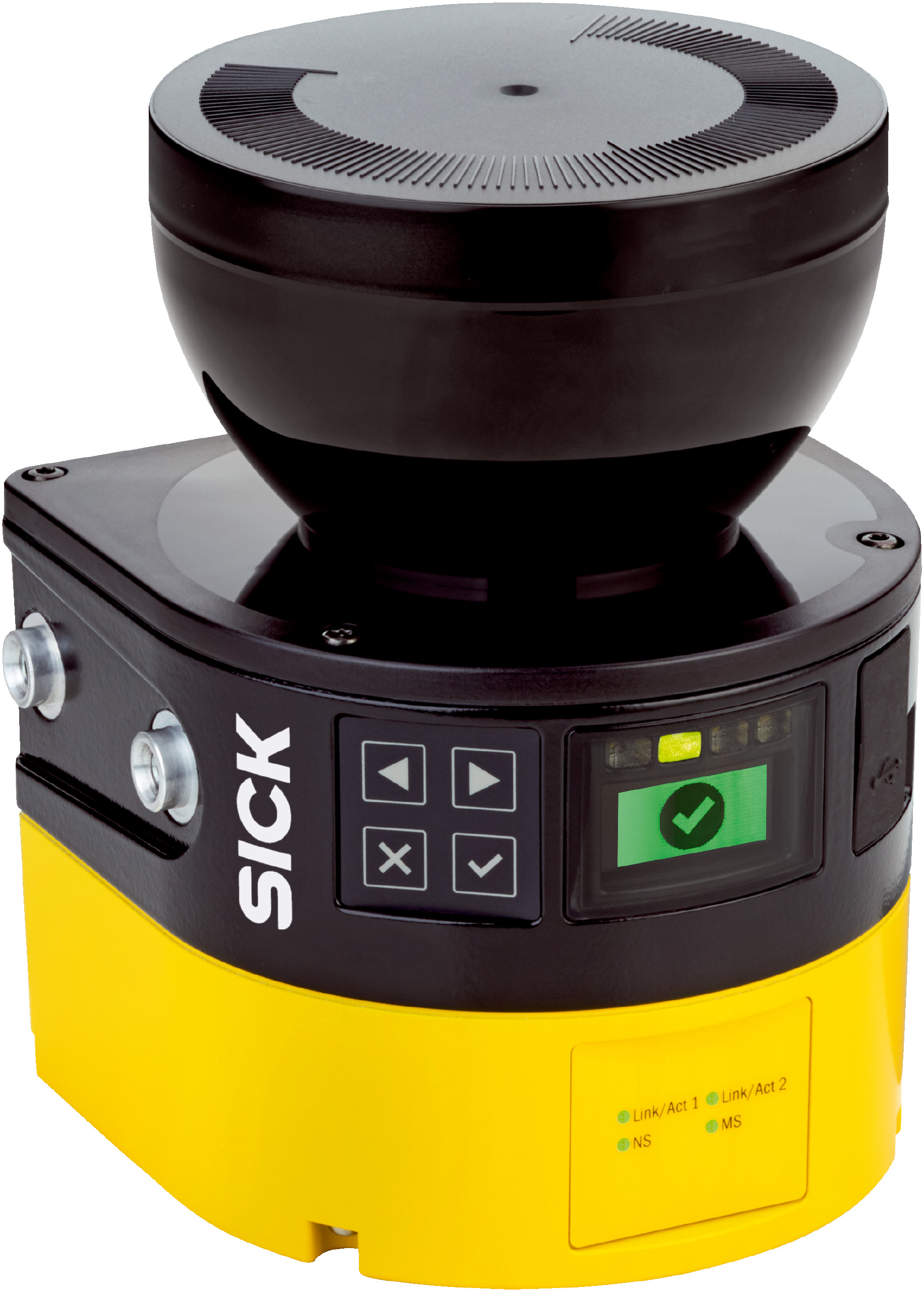

Safety Laser Scanner microScan3 EFI-pro | 9m Protective Range | 64m Warning Range | SIL 2 Safety Level | by SICK
The Safety Laser Scanner microScan3 EFI-pro is designed for industrial safety monitoring, featuring a protective field range of up to 9 meters and a warning field range of 64 meters. With the ability to monitor up to 4 fields simultaneously and a robust aluminum housing, this scanner is perfect for machine safeguarding and area protection in various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Core - EFI-pro
- Protective field range: 9 m
- Warning field range: 64 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Number of monitoring cases: 8
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 115 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 4-pin A-coded for voltage supply, 2 x female M12 4-pin D-coded for fieldbus
- Fieldbus: EFI-pro
- Outputs: 4 safety outputs via network
- Configuration: PC with Safety Designer software
- Interfaces: USB 2.0, Mini-USB, Ethernet
- Data interface services: EtherNet/IP CIP Safety, CoLa 2, DHCP, SNMP, SNTP
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V to 30 V DC)
- Power consumption typical: 7.2 W
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 (IEC 60529)
- Ambient operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance: IEC 60068 series standards
- Light type: Pulsed laser diode, wavelength 845 nm
- Laser class: 1 (21 CFR 1040.10 and IEC 60825-1)
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range up to 9 m and warning field range up to 64 m
- Simultaneous monitoring of up to 4 fields with 8 fields and 8 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Safe outputs via network with 4 safety outputs
- Integrated configuration memory and safe SICK device communication via EFI-pro
- Graphic color display and LEDs for status indication
- Robust aluminum housing with polycarbonate optics cover and scratch-resistant coating
- IP65 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -10 °C to +50 °C
- Pulsed laser diode light source with laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals trained in safety laser scanner setup and integration, using the Safety Designer software for configuration and diagnostics.
Applications
- Indoor safety monitoring and protection
- Industrial automation and robotics
- Machine safeguarding
- Area and perimeter protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and replacement frequency
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Warranty details available upon request from SICK; typically includes manufacturer’s standard warranty covering defects and performance.
Available Now
The SICK microScan3 Core EFI-pro Safety Laser Scanner is available for immediate purchase, ideal for industrial safety and automation applications.
