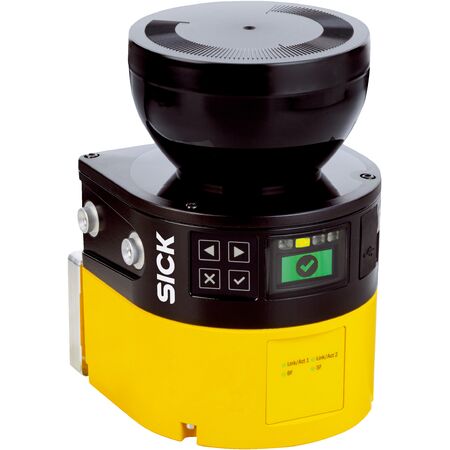

Safety Laser Scanner microScan3 Pro | 4m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The Safety Laser Scanner microScan3 Pro is designed for indoor safety monitoring and industrial automation, featuring a protective field range of up to 4m and a wide scanning angle of 275°. With the ability to monitor up to 8 fields simultaneously and a SIL 2 safety integrity level, it ensures reliable machine safeguarding and area protection. Built with a robust aluminum housing and IP65 rating, this scanner is perfect for demanding industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Pro - PROFINET
- Protective field range: 4 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 8
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network logic 0
- Connection: 1x M12 5-pin L-coded male connector, 2x RJ45 female connectors
- Fieldbus: PROFINET with PROFIsafe protocol
- Configuration: PC with Safety Designer software
- Display: Graphic color display and LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7.2 W typical
- Housing: Aluminum with yellow and black color
- Optics cover: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Ambient light immunity: 40 klx
- Operating temperature: -10°C to +50°C
- Storage temperature: -25°C to +70°C
- Vibration and shock resistance: IEC standards compliant
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.65 kg
Key Features
- Protective field range up to 4 m and warning field range up to 40 m
- Simultaneous monitoring of up to 8 fields with 128 monitoring cases
- Wide scanning angle of 275° with configurable resolution options
- Safety integrity level SIL 2 and Category 3 safety classification
- Safe contour detection and static protective field switching
- Integrated configuration memory and measured data output via Ethernet
- Multiple interfaces including PROFINET with PROFIsafe protocol
- Graphic color display and LED indicators for status
- Robust aluminum housing with IP65 rating and scratch-resistant polycarbonate optics cover
- Operating temperature range from -10°C to +50°C
Professional Installation Requirements
- Professional installation by qualified personnel with experience in industrial safety systems and PROFINET network configuration is recommended.
Applications
- Indoor safety monitoring and protection
- Industrial automation and robotics
- Machine safeguarding
- Area and perimeter protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and replacement frequency
- Supports PROFIenergy for energy management in industrial networks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK microScan3 Pro PROFINET Safety Laser Scanner MICS3-CCAZ40PZ1P01 is available for immediate purchase, ideal for indoor industrial safety and automation applications.
