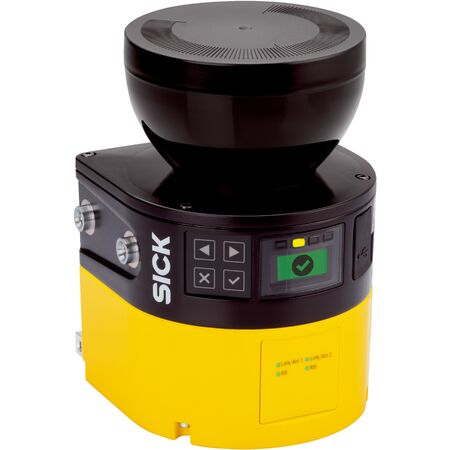

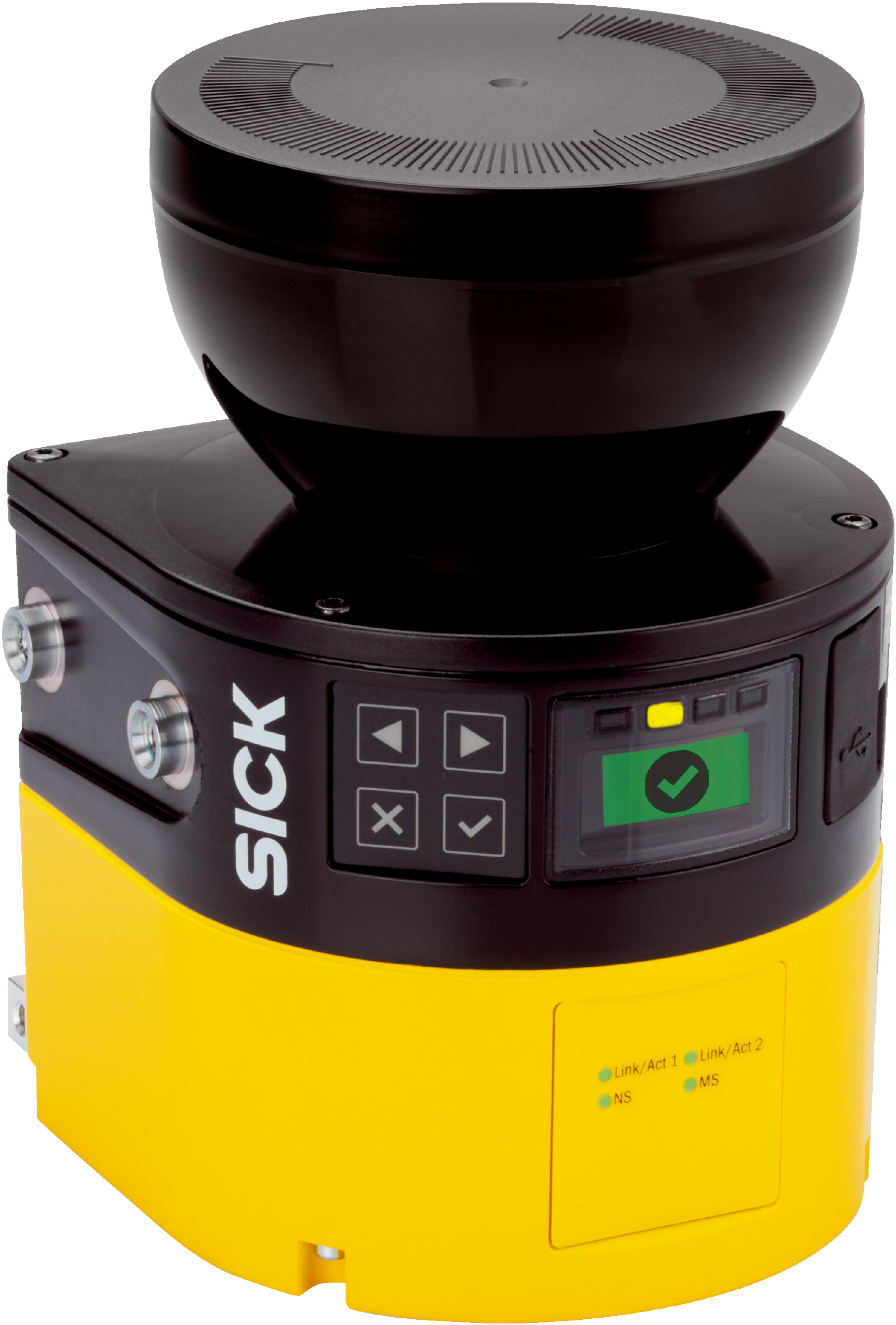

Safety Laser Scanner microScan3 Pro I/O EFI-pro | 4m Protective Range | 40m Warning Range | 275° Scanning Angle | by SICK
The Safety Laser Scanner microScan3 Pro I/O EFI-pro is designed for indoor safety monitoring in industrial automation, featuring a protective field range of 4 m and a warning field range of 40 m. With the capability to monitor up to 8 fields simultaneously and a 275° scanning angle, this sensor ensures comprehensive machine safeguarding and perimeter protection, making it ideal for robotics and automated guided vehicles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 4 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 8
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 70 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF, safety outputs logic 0
- Connection types: M12 connectors (4-pin, 8-pin, 17-pin), EFI-pro network
- Inputs: 16 universal, 8 static control, 2 dynamic switching signals
- Outputs: 4 OSSD pairs, 8 safety outputs via network, 4 universal outputs
- Configuration: PC with Safety Designer software via USB 2.0, Mini-USB, Ethernet
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 8.1 W
- Housing material: Aluminum
- Optics cover: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.6 kg
Key Features
- Protective field range of 4 m and warning field range of 40 m
- Up to 8 simultaneously monitored fields with 128 fields and monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Type 3 safety sensor with SIL 2, Category 3, and PL d safety ratings
- Integrated restart interlock, external device monitoring, and multiple sampling
- Safe SICK device communication via EFI-pro network
- Graphic color display and LEDs for status indication
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety sensor systems and industrial network integration.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Robotics and automated guided vehicles (AGVs)
- Factory automation requiring multi-field safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 8.1 W
- Durable aluminum housing and scratch-resistant optics reduce replacement frequency
- Supports safe automation to reduce workplace accidents and associated environmental impacts
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MICS3-CCAZ40AA1P01 microScan3 Pro I/O EFI-pro Safety Sensor is available for immediate purchase, ideal for indoor industrial safety and automation applications.
