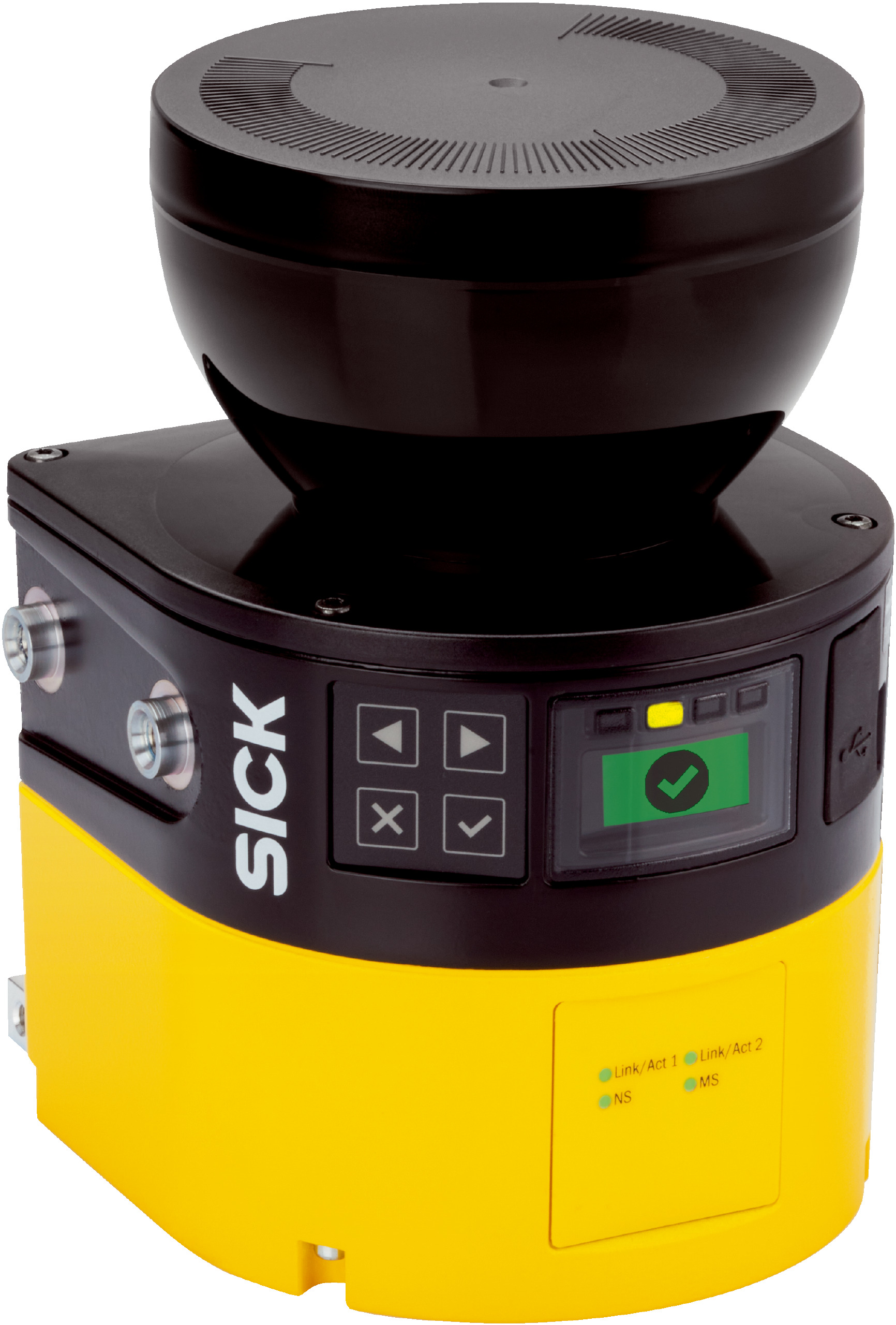

Safety Laser Scanner microScan3 Pro I/O EFI-pro | 5.5m Range | 275° Scanning Angle | SIL 2 Compliant | by SICK
The Safety Laser Scanner microScan3 Pro I/O EFI-pro is designed for indoor safety monitoring in industrial automation, featuring a protective field range of 5.5 m and a warning field range of 40 m. With the ability to monitor up to 8 fields simultaneously and a 275° scanning angle, this sensor ensures robust machine safeguarding and perimeter protection, making it ideal for robotics and automated guided vehicles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 5.5 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 8
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 70 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF, safety outputs logic 0
- Connection types: M12 connectors (4-pin, 17-pin, 8-pin, D-coded)
- Outputs: 4 OSSD pairs, 8 safety outputs via network, 4 universal outputs
- Inputs: 16 universal inputs, 8 static control inputs, 2 dynamic switching signals
- Configuration: PC with Safety Designer software
- Configuration interfaces: USB 2.0, Mini-USB, Ethernet
- Data interfaces: EtherNet/IP CIP Safety, CoLa 2, DHCP, SNMP, SNTP
- Power supply: 24 V DC (16.8 V to 30 V DC)
- Power consumption: 8.1 W typical
- Protection class: III (EN 61140)
- Housing: Aluminum with yellow and black color, polycarbonate optics cover with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10°C to +50°C
- Storage temperature: -25°C to +70°C
- Vibration and shock resistance: IEC standards compliant
- Laser type: Pulsed laser diode, wavelength 845 nm, laser class 1
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.6 kg
Key Features
- Protective field range of 5.5 m and warning field range of 40 m
- Simultaneous monitoring of up to 8 fields with 128 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Type 3 safety sensor compliant with IEC 61496
- Safety integrity level SIL 2 and Performance level PL d
- Restart interlock, external device monitoring, multiple sampling
- Safe contour detection and integrated configuration memory
- Ethernet data output and safe SICK device communication via EFI-pro
- Graphic color display with LEDs for status indication
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals trained in safety sensor systems and compliant with local safety regulations.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Robotics and automated guided vehicles (AGVs)
- Factory automation requiring multi-field safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 8.1 W
- Durable construction reduces waste and replacement frequency
- Supports safe automation to improve workplace safety and reduce accidents
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

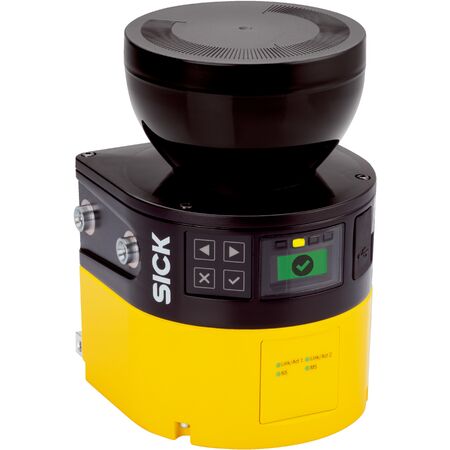

The SICK MICS3-CCAZ55AA1P01 microScan3 Pro I/O EFI-pro Safety Sensor is available for immediate purchase, ideal for industrial indoor safety monitoring and automation applications.
