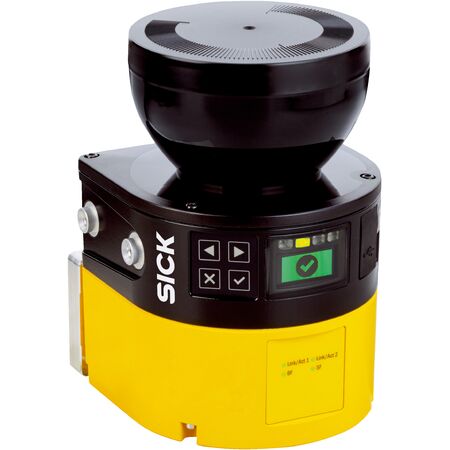

Safety Laser Scanner microScan3 Pro | 5.5m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The microScan3 Pro Safety Laser Scanner is designed for indoor industrial safety monitoring, featuring a protective field range of 5.5 m and a warning field range of 40 m. With the ability to monitor up to 8 fields simultaneously and a 275° scanning angle, it ensures comprehensive safety for automated production lines and machine safeguarding. Built for durability with an IP65 rating, this scanner is perfect for hazardous area perimeter protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Pro - PROFINET
- Protective field range: 5.5 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 8
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 5-pin L-coded connector
- Fieldbus: PROFINET with PROFIsafe protocol
- Configuration: PC with Safety Designer software
- Display: Graphic color display and LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 8.4 W typical
- Housing material: Aluminum
- Optics cover: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance: IEC 60068 series compliant
- Laser type: Pulsed laser diode, wavelength 845 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.65 kg
Key Features
- Protective field range of 5.5 m and warning field range of 40 m
- Simultaneous monitoring of up to 8 fields with 128 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Integrated configuration memory and measured data output via Ethernet
- Multiple interfaces including PROFINET with PROFIsafe protocol
- Graphic color display and LEDs for status indication
- Robust aluminum housing with IP65 rating and scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
- Shock and vibration resistant compliant with IEC standards
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety systems and PROFINET networks to ensure compliance with safety standards.
Applications
- Indoor industrial safety monitoring
- Machine safeguarding
- Automated production lines requiring safety laser scanning
- Hazardous area perimeter protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 8.4 W
- Durable construction reduces waste and replacement frequency
- Supports PROFIenergy for energy management in industrial networks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK microScan3 Pro PROFINET Safety Sensor MICS3-CCAZ55LZ1P01 is available for immediate purchase, ideal for industrial safety applications requiring reliable and configurable laser scanning protection.
