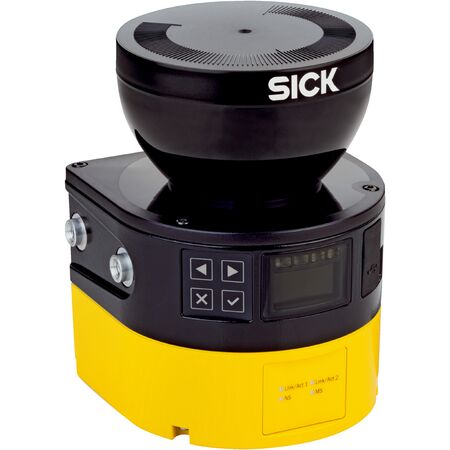

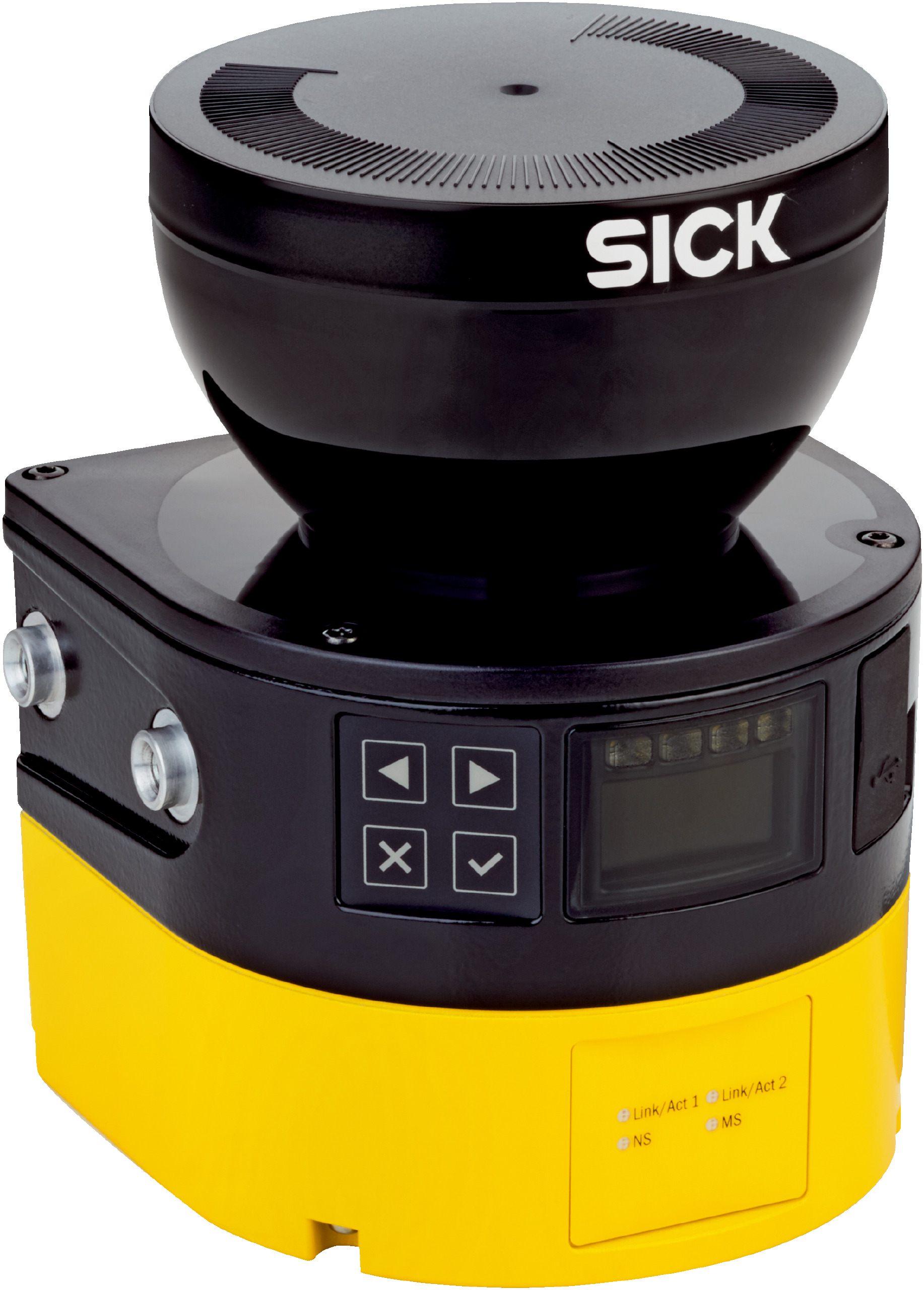

Safety Laser Scanner | microScan3 Pro | 9m Protective Range | 275° Scanning Angle | by SICK
The Safety Laser Scanner is designed for industrial environments, featuring a protective field range of up to 9 meters and a wide scanning angle of 275°. Ideal for machine safeguarding and collision protection, it supports simultaneous monitoring of up to 4 fields, ensuring high safety integrity with SIL 2 compliance. With robust IP65-rated housing, this scanner is built for reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Laser Scanner | microScan3 Pro | 9m Protective Range | 275° Scanning Angle | by SICK
Brand: SICK
SKU: 1138053
Alternatively Known As: microScan3 Pro Safety Laser Scanner, SICK Safety Scanner, Industrial Laser Safety Sensor, Collision Protection Laser Scanner
Technical Specifications
- Product version: microScan3 Pro - EtherNet/IP
- Protective field range: 9 m
- Warning field range: 64 m
- Collision protection field range: 19 m (on reference target)
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 115 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection: 1x male M12 4-pin A-coded for voltage supply, 2x female M12 4-pin D-coded for EtherNet/IP
- Configuration: PC with Safety Designer software, interfaces USB 2.0, Mini-USB, Ethernet
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7.2 W typical
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range up to 9 m and warning field range up to 64 m
- Collision protection field range of 19 m on reference target
- Simultaneous monitoring of up to 4 fields with 128 fields and monitoring cases
- Wide scanning angle of 275° with configurable resolution from 30 mm to 200 mm
- High safety integrity with SIL 2, Category 3, and Performance Level PL d
- Multiple safety functions including restart interlock, multiple sampling, and safe contour detection
- EtherNet/IP™ industrial network connectivity with 4 safety outputs via network
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
- Graphic color display and LED indicators for easy status monitoring
Professional Installation Requirements
- Installation must be performed by qualified professionals familiar with industrial safety standards and network configuration to ensure compliance and optimal safety performance.
Applications
- Indoor safety monitoring and collision protection in industrial environments
- Machine safeguarding and perimeter protection
- Automated guided vehicles (AGVs) and robotics safety
- Factory automation requiring reliable laser scanning safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation reduces power consumption with typical power usage of 7.2 W
- Durable aluminum housing and scratch-resistant optics extend product lifespan, reducing waste
- Supports safe automation which can improve overall energy efficiency in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MICS3-CBAC90IZ1 Safety Laser Scanner is available for immediate purchase, ideal for industrial indoor safety and automation applications.
