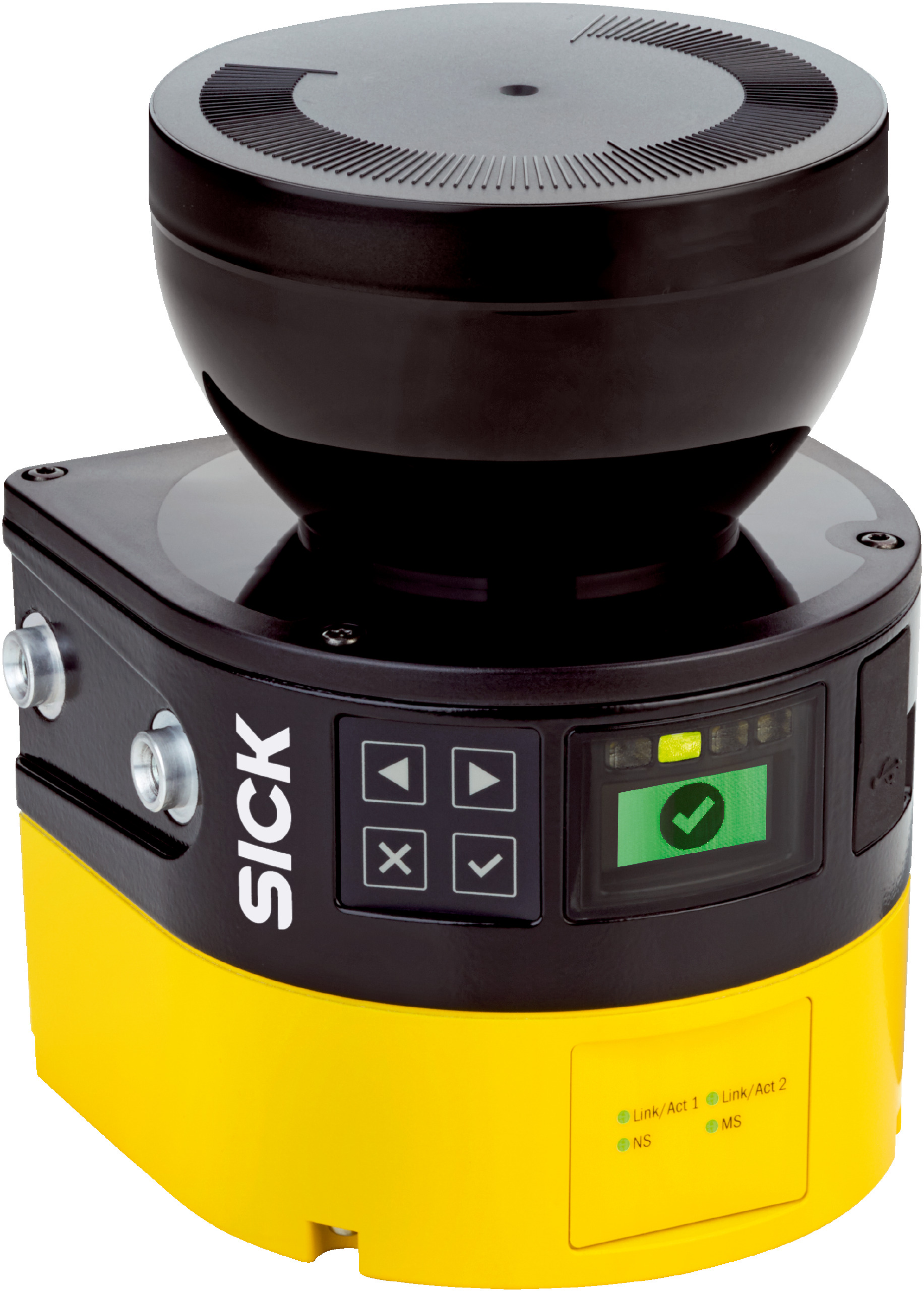

Safety Laser Scanner microScan3 Pro | 9m Protective Range | 275° Scanning Angle | SIL 2 Safety Rating | by SICK
The Safety Laser Scanner microScan3 Pro is designed for indoor industrial safety monitoring, featuring a protective field range of up to 9 m and a 275° scanning angle. With the ability to monitor up to 4 fields simultaneously and a SIL 2 safety rating, it ensures reliable collision protection for automated guided vehicles (AGVs) and enhances safety in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Pro - EtherNet/IP
- Protective field range: 9 m
- Warning field range: 64 m
- Collision protection field range: 19 m on reference target
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Resolution (configurable): 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 115 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 4-pin A-coded for voltage supply, 2 x female M12 4-pin D-coded for EtherNet/IP
- Configuration method: PC with Safety Designer software
- Configuration and diagnostics interface: USB 2.0, Mini-USB, Ethernet
- Power supply: 24 V DC (16.8 V to 30 V DC)
- Power consumption typical: 7.2 W
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Ambient operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance: IEC 60068 series standards
- EMC compliance: IEC 61496-1, IEC 61000-6-2, IEC 61000-6-4
- Light type: Pulsed laser diode, wavelength 845 nm
- Laser class: 1 (21 CFR 1040.10 and IEC 60825-1)
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range up to 9 m and warning field range up to 64 m
- Supports up to 4 simultaneously monitored fields with 128 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety rating
- Integrated configuration memory and multiple sampling for enhanced safety
- EtherNet/IP™ industrial network with 4 safety outputs via network
- Graphic color display and LED indicators for status monitoring
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Wide ambient operating temperature range from -10 °C to +50 °C
- Pulsed laser diode light source with laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel trained in safety laser scanner systems and industrial network setup to ensure compliance with safety standards.
Applications
- Indoor industrial safety monitoring
- Collision protection for automated guided vehicles (AGVs)
- Area protection and access control in manufacturing environments
- Safe contour detection in automated processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable aluminum housing and scratch-resistant optics reduce replacement frequency
- Supports safe automation reducing risk of accidents and associated environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

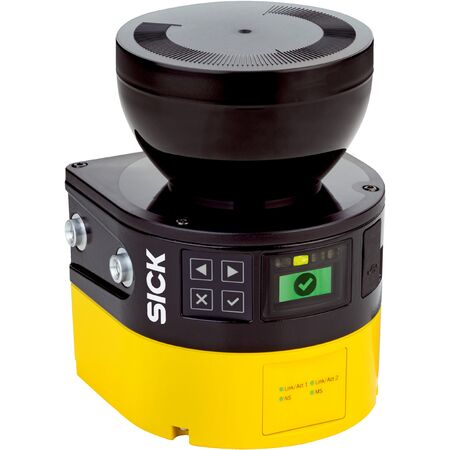

The SICK microScan3 Pro EtherNet/IP Safety Laser Scanner MICS3-CBAZ90IZ1P01 is available for immediate purchase, ideal for indoor industrial safety and collision protection applications.
