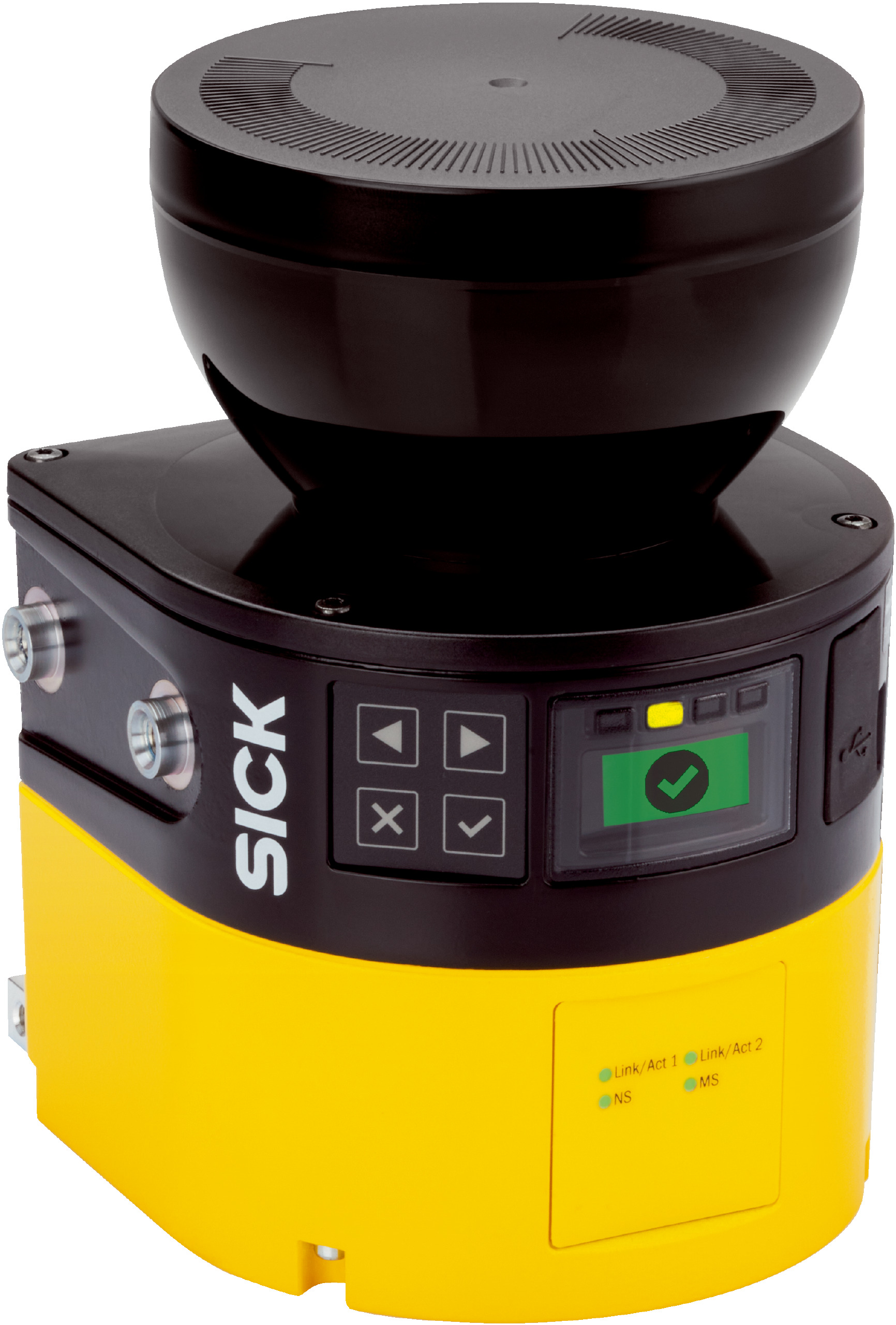

Safety Laser Scanner microScan3 Pro I/O EFI-pro | 9m Protective Range | 64m Warning Range | IP65 Rated | by SICK
The Safety Laser Scanner microScan3 Pro I/O EFI-pro is designed for indoor industrial safety monitoring, featuring a protective field range of up to 9 meters and a warning field range of 64 meters. With the ability to monitor up to 4 fields simultaneously and a 275° scanning angle, it ensures comprehensive collision protection and safe contour detection. Built for manufacturing environments, this robust scanner enhances workplace safety and reduces accidents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 9 m
- Warning field range: 64 m
- Collision protection field range: 19 m on reference target
- Number of simultaneously monitored fields: up to 4
- Number of fields: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 90 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 8.1 W typical
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Laser class: 1 (IEC 60825-1)
- Data interfaces: USB 2.0, Mini-USB, Ethernet
- Fieldbus: EFI-pro with EtherNet/IP CIP Safety
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.6 kg
Key Features
- Protective field range up to 9 m and warning field range up to 64 m
- Simultaneous monitoring of up to 4 fields with 128 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Type 3 safety (IEC 61496) with SIL 2 and Category 3 (EN ISO 13849) compliance
- Integrated restart interlock, external device monitoring, and multiple sampling
- Safe SICK device communication via EFI-pro network
- Graphic color display and LED indicators for status
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety systems and the SICK Safety Designer software.
Applications
- Indoor industrial safety monitoring
- Collision protection and safe contour detection
- Machine and plant safety in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 8.1 W
- Durable construction reduces replacement frequency and waste
- Supports safe automation to improve workplace safety and reduce accidents
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

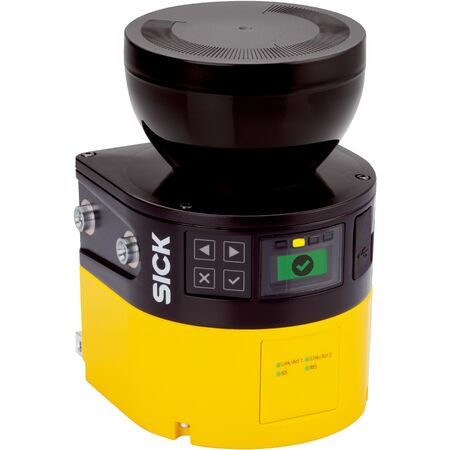

The SICK MICS3-CCAZ90AA1P01 microScan3 Pro I/O EFI-pro Safety Sensor is available for immediate purchase, ideal for indoor industrial safety and automation applications.
