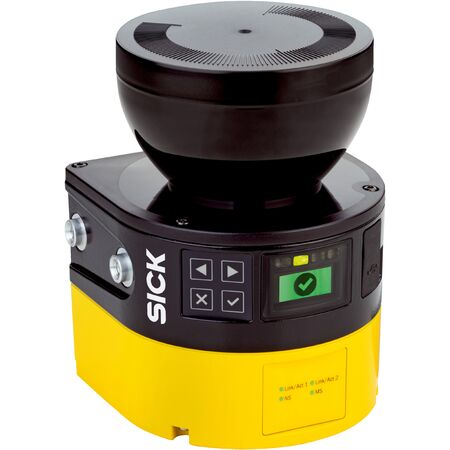

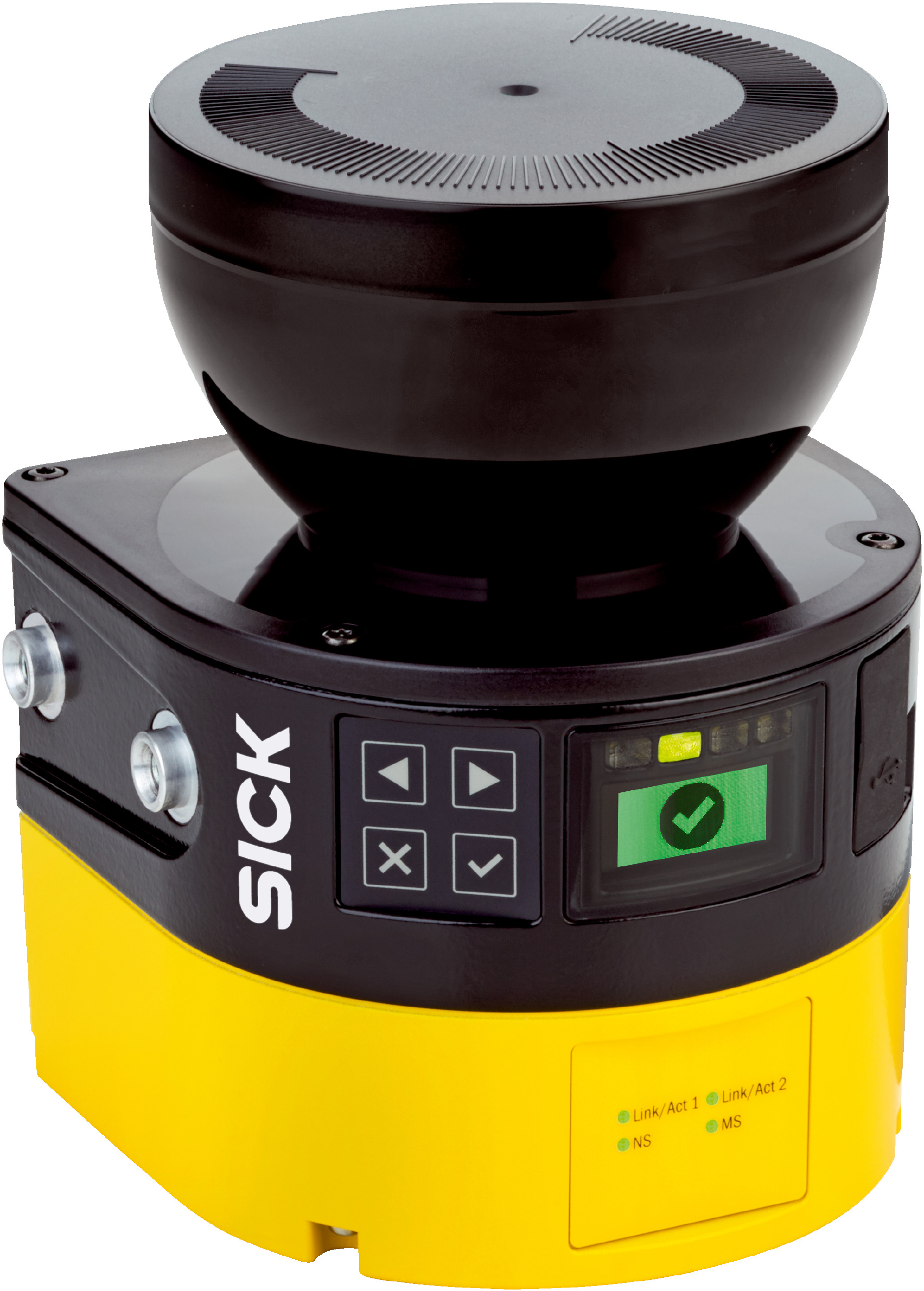

Safety Laser Scanner microScan3 Pro EFI-pro | 4m Protective Range | 275° Scanning Angle | IP65 Rated | by SICK
The Safety Laser Scanner microScan3 Pro EFI-pro is designed for indoor safety monitoring and industrial automation, featuring a protective field range of 4 m and a warning field range of 40 m. With the ability to monitor up to 8 fields simultaneously and a 275° scanning angle, this robust scanner ensures reliable safety in hazardous areas, making it ideal for access control and collision avoidance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Pro - EFI-pro
- Protective field range: 4 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 8
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Protective field supplement: 65 mm
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Restart interlock, multiple sampling, monitoring case switching, simultaneous monitoring supported
- Connection: 1x male M12 4-pin A-coded for voltage supply, 2x female M12 4-pin D-coded for EFI-pro network
- Configuration via PC with Safety Designer software
- Data interfaces: USB 2.0, Mini-USB, Ethernet
- Data protocols: EtherNet/IP CIP Safety, CoLa 2, DHCP, SNMP, SNTP
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7.2 W typical
- Housing: Aluminum with yellow (RAL 1021) and black (RAL 9005) colors
- Optics cover: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 (IEC 60529)
- Ambient light immunity: 40 klx (IEC 61496-3)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range of 4 m and warning field range of 40 m
- Simultaneous monitoring of up to 8 fields with 128 fields and monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Type 3 safety (IEC 61496) with SIL 2, Category 3, and PL d performance levels
- Safe outputs via network with 8 safety outputs
- Integrated configuration memory and safe contour detection
- Multiple interfaces including USB 2.0, Mini-USB, Ethernet, and EFI-pro fieldbus
- Graphic color display and LEDs for status indication
- Robust aluminum housing with IP65 rating and scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety standards and proper integration into industrial safety systems.
Applications
- Indoor safety monitoring and protection
- Industrial automation and robotics
- Hazardous area perimeter guarding
- Access control and collision avoidance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and replacement frequency
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK microScan3 Pro EFI-pro Safety Laser Scanner MICS3-CBAZ40ZA1P01 is available for immediate purchase, ideal for indoor industrial safety and automation applications.
