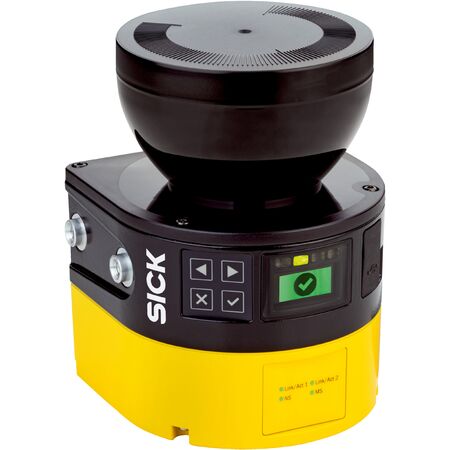

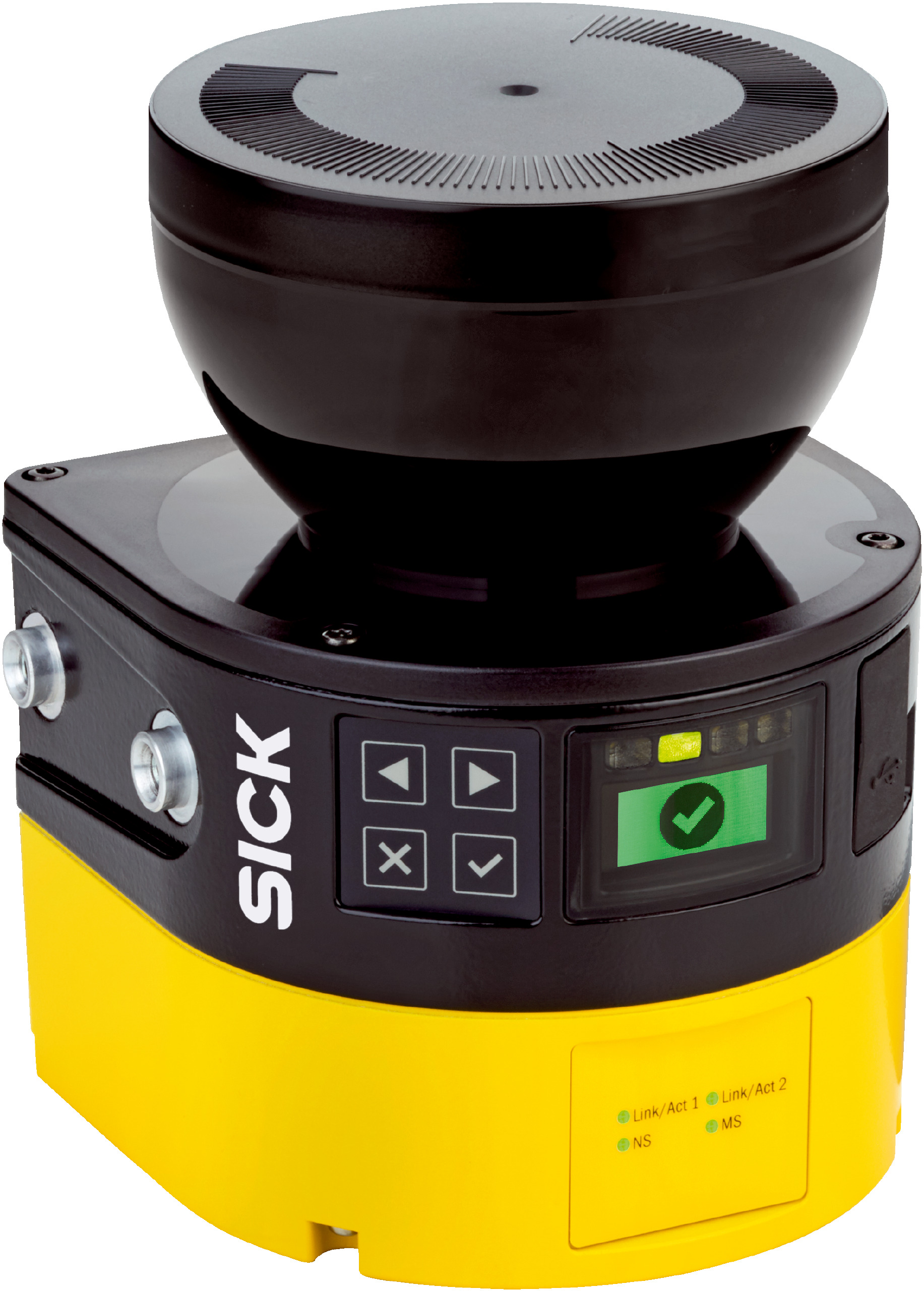

Safety Laser Scanner microScan3 Pro EFI-pro | 5.5m Range | 275° Scanning Angle | SIL 2 Compliant | by SICK
The microScan3 Pro EFI-pro Safety Laser Scanner is designed for indoor industrial safety monitoring, featuring a protective field range of 5.5 m and a warning field range of 40 m. With the ability to monitor up to 8 fields simultaneously and a 275° scanning angle, this robust safety sensor ensures compliance with IEC standards, making it ideal for machine safeguarding and automated production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 5.5 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 8
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 4-pin A-coded for voltage supply, 2 x female M12 4-pin D-coded for fieldbus
- Fieldbus: EFI-pro
- Safety outputs via network: 8
- Configuration method: PC with Safety Designer software
- Configuration and diagnostics interface: USB 2.0, Mini-USB, Ethernet
- Data interface services: EtherNet/IP CIP Safety, CoLa 2, DHCP, SNMP, SNTP
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7.2 W
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 (IEC 60529)
- Ambient operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-3
- Shock resistance: IEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-3
- Light type: Pulsed laser diode
- Wavelength: 845 nm
- Laser class: 1 (21 CFR 1040.10 and IEC 60825-1)
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range of 5.5 m and warning field range of 40 m
- Simultaneous monitoring of up to 8 fields with 128 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Type 3 safety sensor compliant with IEC 61496
- Safety integrity level SIL 2 and Performance level PL d
- Safe state output via network logic 0 on fault
- Integrated configuration memory and safe SICK device communication via EFI-pro
- Multiple interfaces including USB 2.0, Mini-USB, Ethernet, and EFI-pro fieldbus
- Graphic color display with LEDs for status indication
- Robust aluminum housing with polycarbonate optics cover and scratch-resistant coating
- IP65 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -10 °C to +50 °C
- Vibration and shock resistant compliant with multiple IEC standards
- Pulsed laser diode light source with laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety laser scanners and industrial safety standards to ensure compliance and optimal performance.
Applications
- Indoor industrial safety monitoring
- Machine safeguarding
- Automated production lines requiring safety laser scanning
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces replacement frequency and waste
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK microScan3 Pro EFI-pro Safety Sensor MICS3-CBAZ55ZA1P01 is available for immediate purchase, ideal for indoor industrial safety and automation applications.
