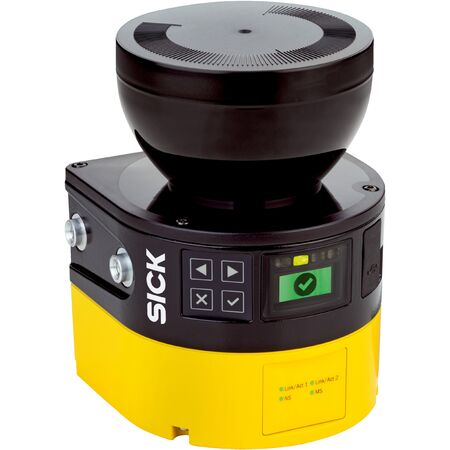

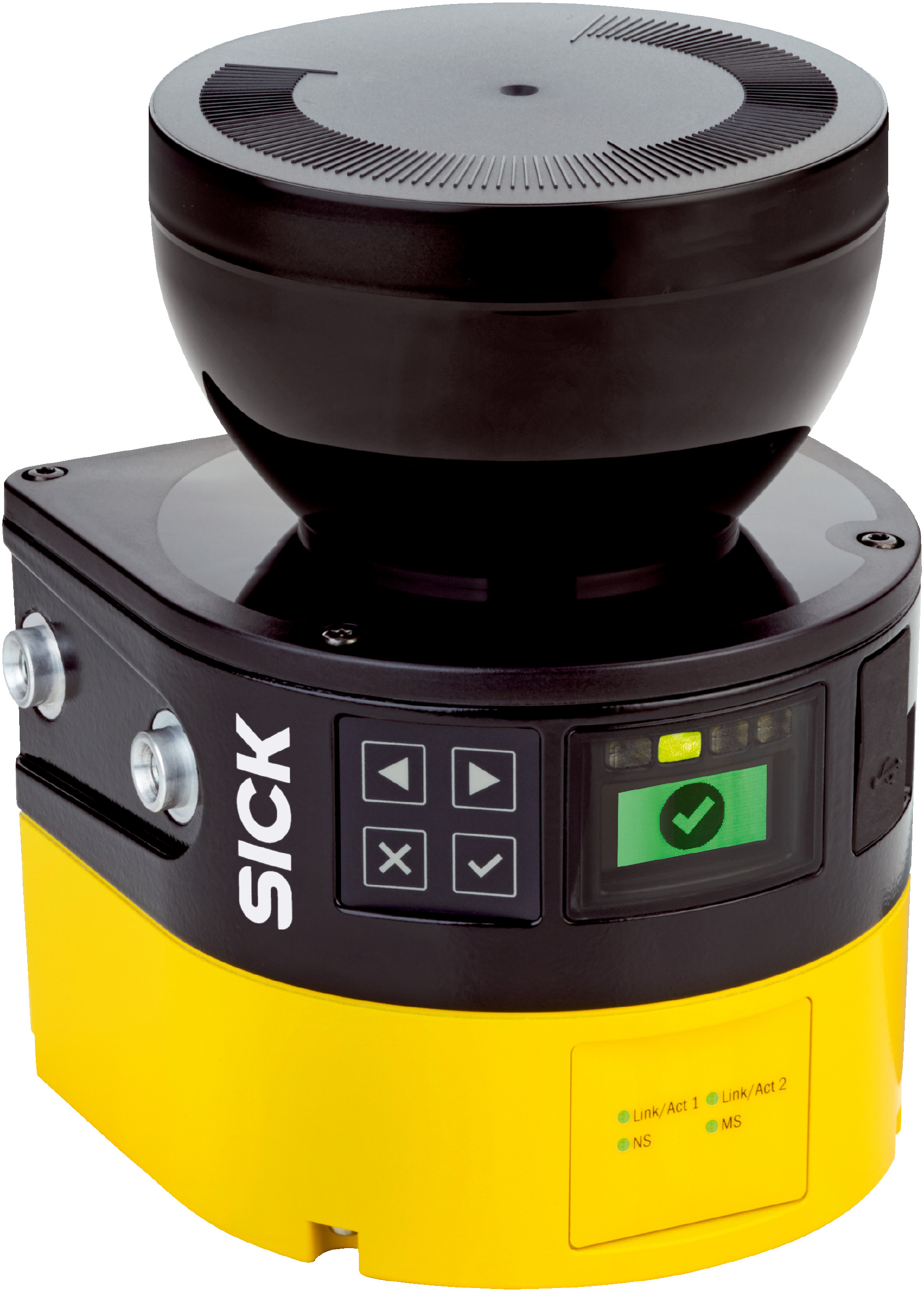

Safety Laser Scanner microScan3 Pro EFI-pro | 9m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The Safety Laser Scanner microScan3 Pro EFI-pro offers a protective field range of up to 9 meters and a wide scanning angle of 275°, making it ideal for indoor safety monitoring and collision protection in industrial environments. With the ability to monitor up to 4 fields simultaneously and a SIL 2 safety integrity level, this scanner ensures reliable operation and compliance with safety standards, perfect for automated production lines and access control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Pro - EFI-pro
- Protective field range: 9 m
- Warning field range: 64 m
- Collision protection field range: 19 m (on reference target)
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Resolution (configurable): 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 115 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1x male M12 4-pin A-coded for voltage supply, 2x female M12 4-pin D-coded for fieldbus
- Fieldbus: EFI-pro
- Outputs: 4 safety outputs via network
- Configuration: PC with Safety Designer software
- Configuration interfaces: USB 2.0, Mini-USB, Ethernet
- Data interfaces: EtherNet/IP CIP Safety, CoLa 2, DHCP, SNMP, SNTP
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7.2 W
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance: IEC 60068 series standards
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range up to 9 m and warning field range up to 64 m
- Collision protection field range of 19 m on reference target
- Simultaneous monitoring of up to 4 fields with 128 monitoring cases
- Wide scanning angle of 275° with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Safe contour detection and collision protection field functionality
- Integrated configuration memory and multiple sampling for reliable operation
- Communication via Ethernet with EFI-pro protocol and multiple industrial network interfaces
- Graphic color display and LED indicators for status monitoring
- Robust aluminum housing with IP65 protection and scratch-resistant polycarbonate optics cover
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals trained in safety systems and industrial network setup to ensure compliance with safety standards and optimal performance.
Applications
- Indoor safety monitoring and collision protection in industrial environments
- Machine and personnel safety in automated production lines
- Area protection and access control in manufacturing facilities
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and extends product lifecycle
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK microScan3 Pro EFI-pro Safety Laser Scanner is available for immediate purchase, ideal for industrial safety and automation applications requiring reliable area protection.
