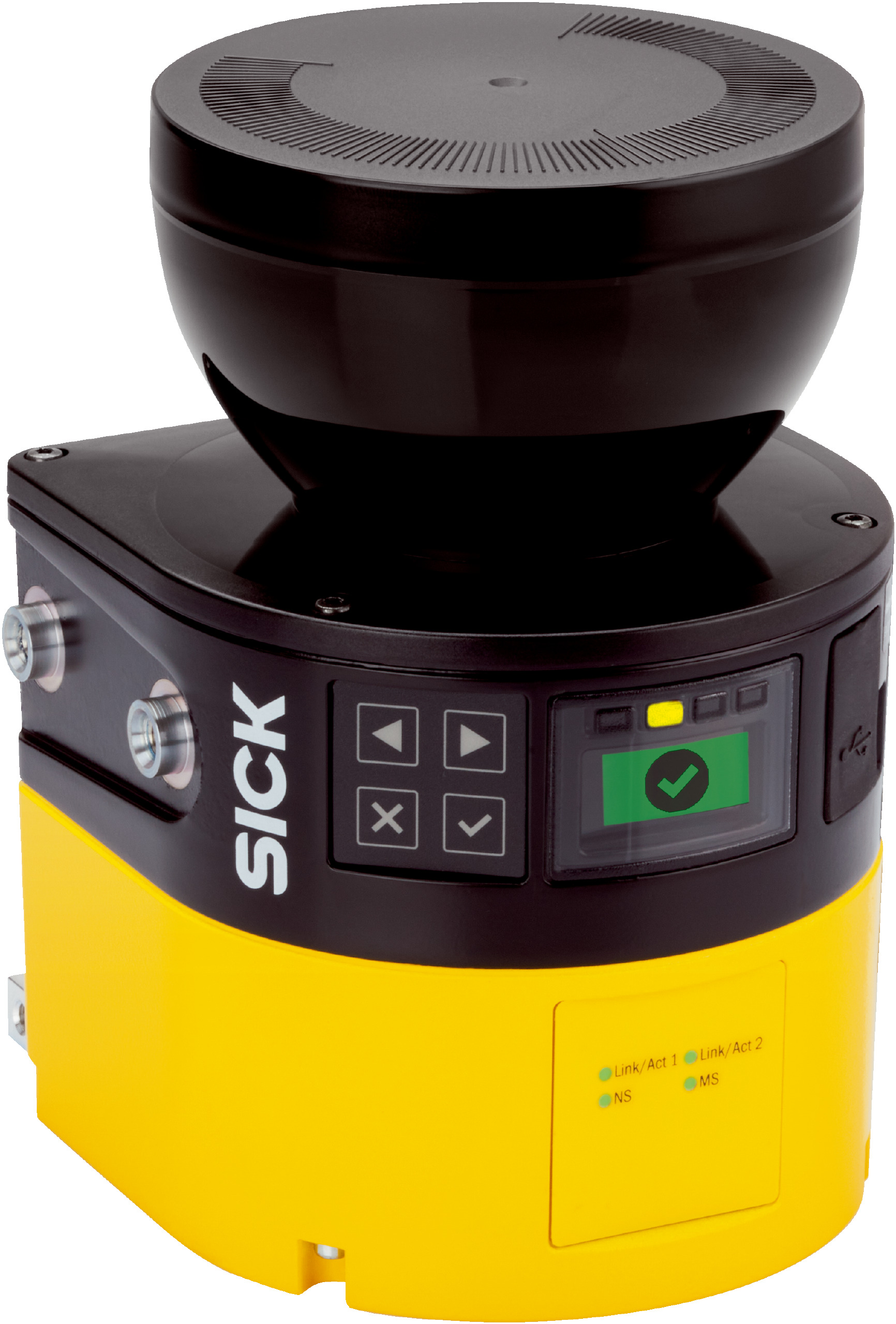

Safety Laser Scanner microScan3 Pro I/O | 9m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The Safety Laser Scanner microScan3 Pro I/O is designed for advanced industrial safety applications, featuring a protective field range of up to 9 meters and a wide scanning angle of 275°. With the ability to monitor up to 4 fields simultaneously, it ensures optimal collision protection and machine safeguarding in automated environments. Built for durability and compliance, this scanner is perfect for factory automation and robotics safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Pro I/O
- Protective field range: 9 m
- Warning field range: 64 m
- Collision protection field range: 19 m (on reference target)
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 90 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: At least one OSSD is OFF
- Connection types: M12 connectors (various pins and codings), Ethernet
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 6 W typical
- Housing material: Aluminum
- Optics cover: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance: IEC 60068 series and related standards
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.6 kg
Key Features
- Protective field range up to 9 m and warning field range up to 64 m
- Collision protection field range of 19 m on reference target
- Simultaneous monitoring of up to 4 fields with 128 fields and 128 monitoring cases
- Wide scanning angle of 275° with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 with Performance Level PL d
- Fast response time of 90 ms and restart interlock functionality
- Multiple interfaces including Ethernet, USB 2.0, Mini-USB, and M12 connectors
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Ambient operating temperature range from -10 °C to +50 °C
- Comprehensive vibration and shock resistance compliant with IEC standards
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals trained in safety systems and familiar with industrial safety standards to ensure compliance and optimal performance.
Applications
- Indoor safety monitoring and collision protection in industrial environments
- Machine safeguarding and perimeter protection
- Automated guided vehicles (AGVs) and robotics safety
- Factory automation requiring multiple monitored safety fields
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 6 W typical
- Durable construction reduces waste and extends product lifecycle
- Supports safer industrial environments reducing accident-related environmental impacts
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

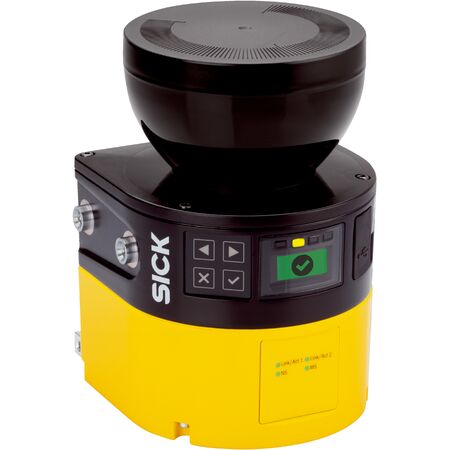

The SICK microScan3 Pro I/O Safety Laser Scanner MICS3-CCAZ90AN1P01 is available for immediate purchase, ideal for industrial safety and automation applications requiring advanced laser scanning safety solutions.
