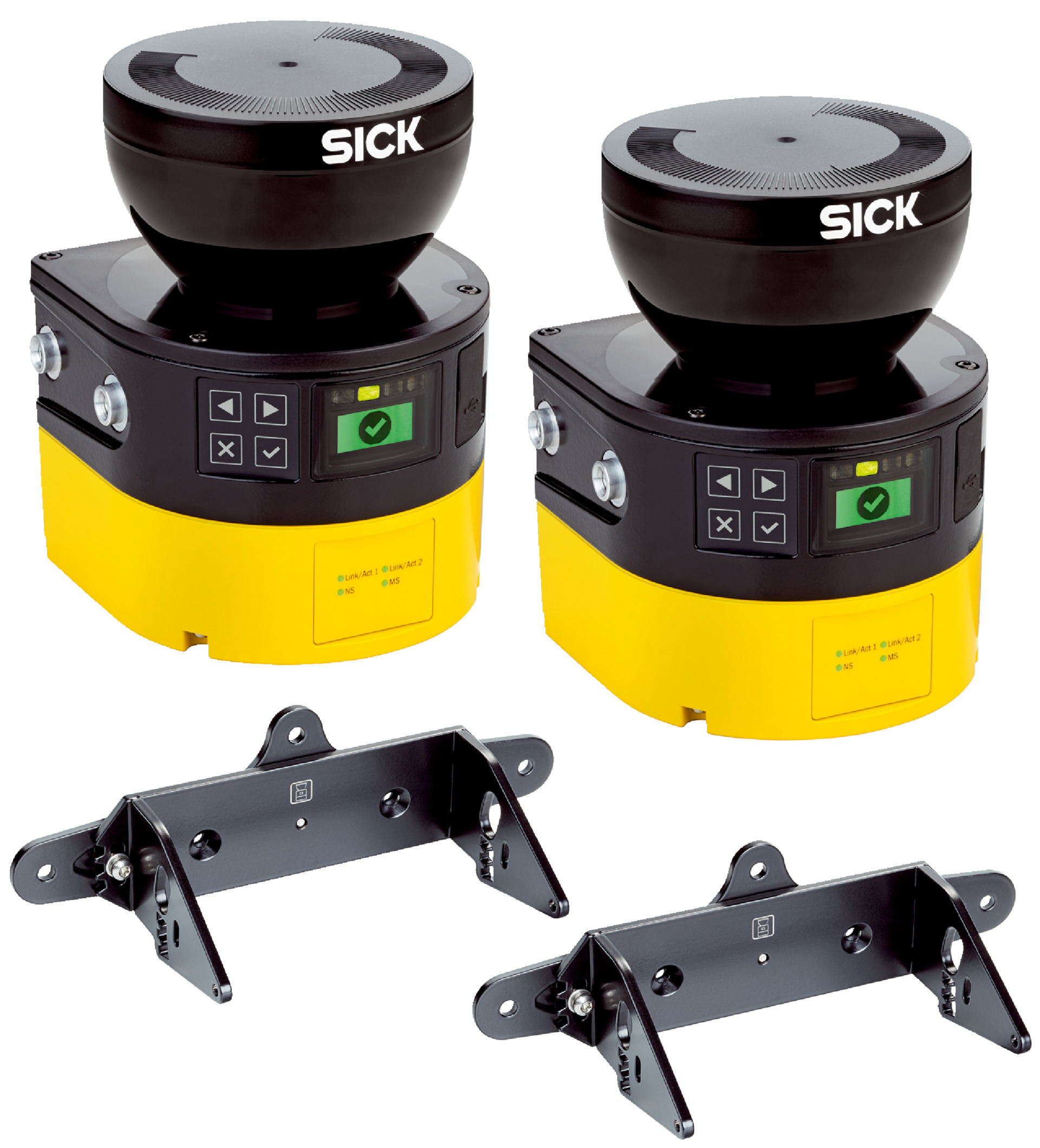

Safety Laser Scanner microScan3 Pro | Siemens S7 Compatible | PROFINET Interface | @by SICK
The Safety Laser Scanner microScan3 Pro is designed for industrial automation safety, featuring Siemens S7 compatibility and a PROFINET interface. Ideal for access protection in manufacturing plants and machine safeguarding, it ensures reliable operation with safety-related semiconductor outputs that switch to OFF in fault conditions. With a wide ambient operating temperature range from –10 °C to +50 °C, this scanner is perfect for robotics safety zones and more.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Variant: Siemens S7
- Product type: Hardware
- Safety laser scanners: microScan3 Pro - PROFINET
- System requirements: SIMATIC STEP 7 Safety Advanced V14, SIMATIC STEP 7 TIA Portal V14 SP1
- Connection type: M12 female connector, 4-pin, D-coded
- Safe state in the event of a fault: Safety-related semiconductor outputs are OFF
- Safety task: Access protection
- Ambient operating temperature: –10 °C to +50 °C
- Storage temperature: –25 °C to +50 °C
- Air humidity: 90% at 50 °C (EN 61131-2)
- Supply voltage VS: 24 V DC (16.8 V DC to 28.8 V DC)
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Siemens S7 variant compatible
- Safety laser scanner microScan3 Pro with PROFINET interface
- M12 female connector, 4-pin, D-coded connection type
- Safety-related semiconductor outputs switch to OFF state in fault conditions
- Wide ambient operating temperature range from –10 °C to +50 °C
- Supports SIMATIC STEP 7 Safety Advanced V14 and TIA Portal V14 SP1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety systems and Siemens S7 integration.
Applications
- Industrial automation safety
- Access protection in manufacturing plants
- Machine safeguarding
- Robotics safety zones
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces workplace accidents by providing reliable access protection
- Energy-efficient 24 V DC operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

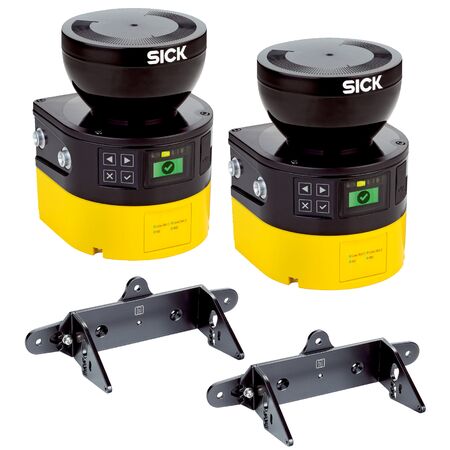

The SICK SYS/SPOS7VE0SASA02MS3 Safety Laser Scanner is available for immediate purchase, ideal for industrial safety and access protection applications.
