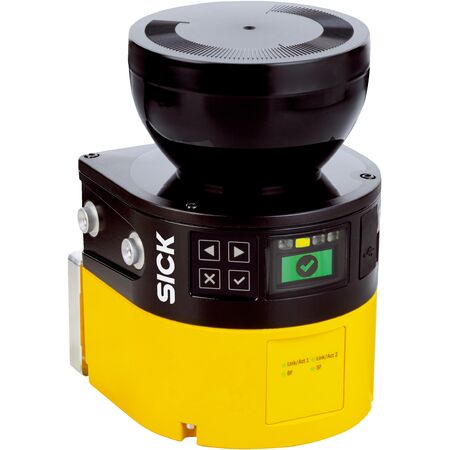

Safety Laser Scanner microScan3 PROFINET | 4m Protective Range | 40m Warning Range | SIL 2 Safety Level | by SICK
The Safety Laser Scanner microScan3 PROFINET is designed for indoor industrial safety monitoring, featuring a protective field range of 4 m and a warning field range of 40 m. With the ability to monitor up to 4 fields simultaneously and a 275° scanning angle, it ensures optimal machine safeguarding and area protection in manufacturing environments. Built for reliability, it operates within a temperature range of -10 °C to +50 °C and boasts an IP65-rated aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Core - PROFINET
- Protective field range: 4 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Number of monitoring cases: 8
- Scanning angle: 275°
- Resolution (configurable): 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 5-pin L-coded connector
- Fieldbus: PROFINET with PROFIsafe protocol
- Configuration interface: USB 2.0, Mini-USB, Ethernet
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 8.4 W
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Laser wavelength: 845 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.65 kg
Key Features
- Protective field range of 4 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 fields and 8 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety rating
- Integrated configuration memory and measured data output via Ethernet
- Multiple interfaces including PROFINET with PROFIsafe protocol
- Graphic color display and LEDs for status indication
- Robust aluminum housing with IP65 rating and scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
- Pulsed laser diode light source with laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety standards and PROFINET network setup to ensure compliance and optimal performance.
Applications
- Indoor industrial safety monitoring
- Machine safeguarding
- Area protection in manufacturing environments
- Automated guided vehicle (AGV) safety
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 8.4 W
- Durable construction reduces waste and replacement frequency
- Supports PROFIenergy for energy management in industrial networks
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK microScan3 Core PROFINET Safety Laser Scanner MICS3-ACAZ40LZ1P01 is available for immediate purchase. Ideal for indoor industrial safety and machine safeguarding applications.
