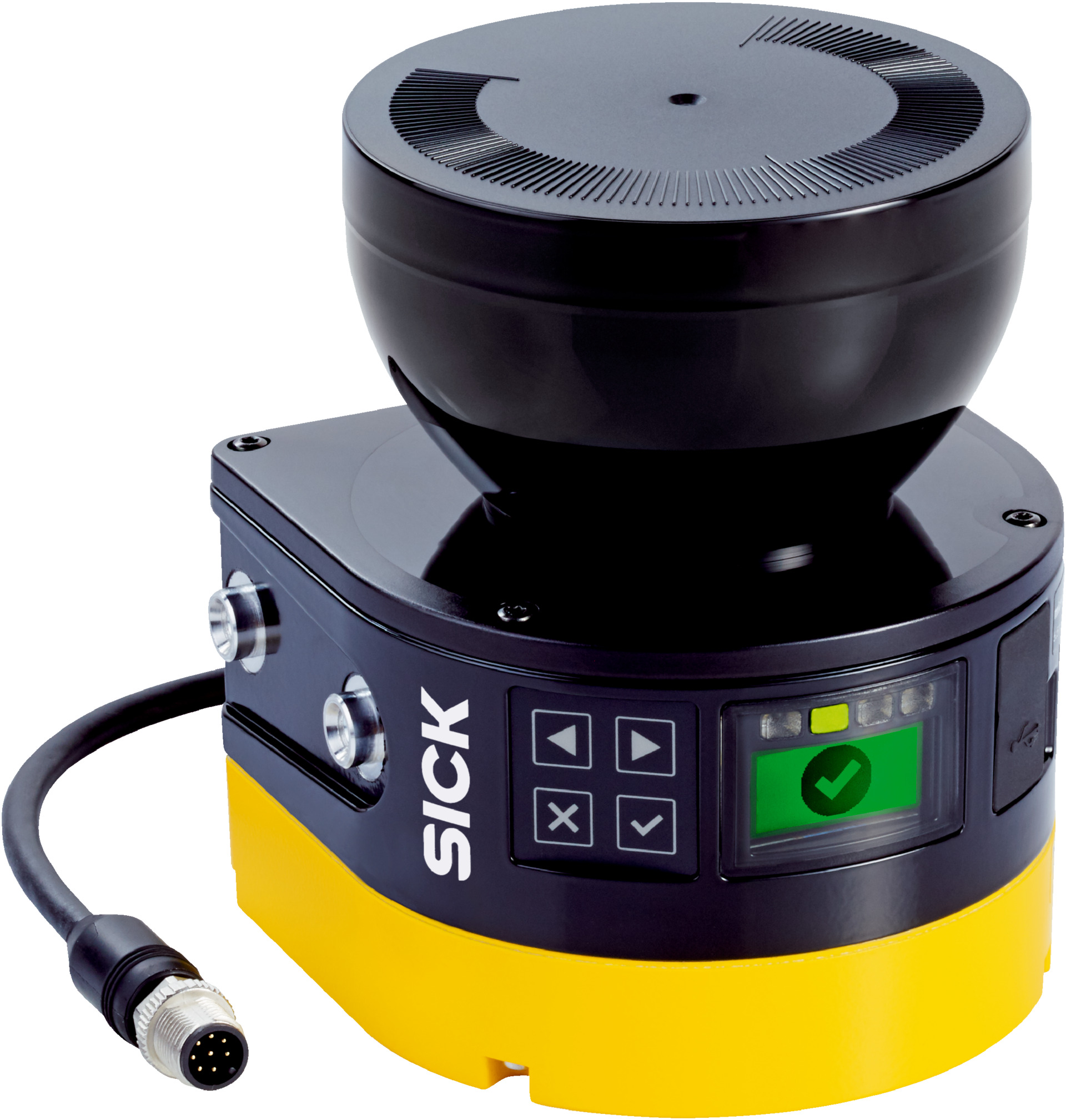

Safety Laser Scanner microScan3 Core I/O | 9m Protective Range | 275° Scanning Angle | SIL 2 Certified | by SICK
The microScan3 Core I/O Safety Sensor is a cutting-edge safety laser scanner designed for indoor safety monitoring in industrial automation. With a protective field range of up to 9 meters and a 275° scanning angle, it ensures reliable presence detection for machine safeguarding and perimeter protection. Built for robust performance, this SIL 2 certified sensor features a graphic color display and an IP65 rated enclosure, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 9 m
- Warning field range: 64 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Number of monitoring cases: 2
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 90 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Connection: Male M12, 8 pin, A-coded
- Universal I/Os: 3
- OSSD pairs: 1
- Configuration: PC with Safety Designer software
- Display: Graphic color display with LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V to 30 V DC)
- Power consumption: 7 W typical
- Housing material: Aluminum
- Optics cover: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Light source: Pulsed laser diode, wavelength 845 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 135mm x 111mm x 112mm
- Weight: 1.15 kg
Key Features
- Protective field range up to 9 m and warning field range up to 64 m
- Simultaneous monitoring of up to 4 fields with 8 total fields
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Type 3 safety sensor with SIL 2, Category 3, and PL d certifications
- Integrated restart interlock, external device monitoring, and multiple sampling
- Graphic color display with LEDs for status indication
- Robust aluminum housing with polycarbonate optics cover and scratch-resistant coating
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -10 °C to +50 °C
- Pulsed laser diode light source with laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals trained in safety sensor systems to ensure compliance with safety standards and optimal performance.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Robotics and automated guided vehicles (AGVs)
- Factory automation requiring reliable presence detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7 W
- Durable design reduces waste and replacement frequency
- Supports safer automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

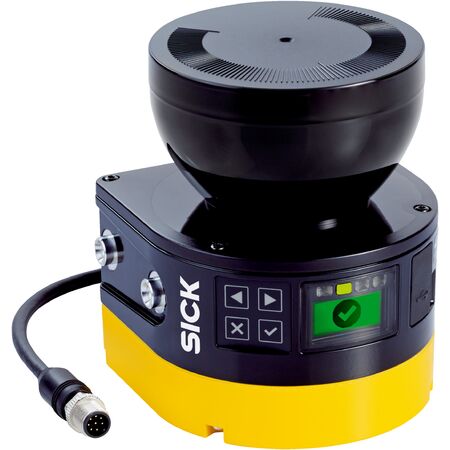

The SICK MICS3-AAAZ90AZ1P01 microScan3 Core I/O Safety Sensor is available for immediate purchase, ideal for industrial indoor safety monitoring and automation applications.
