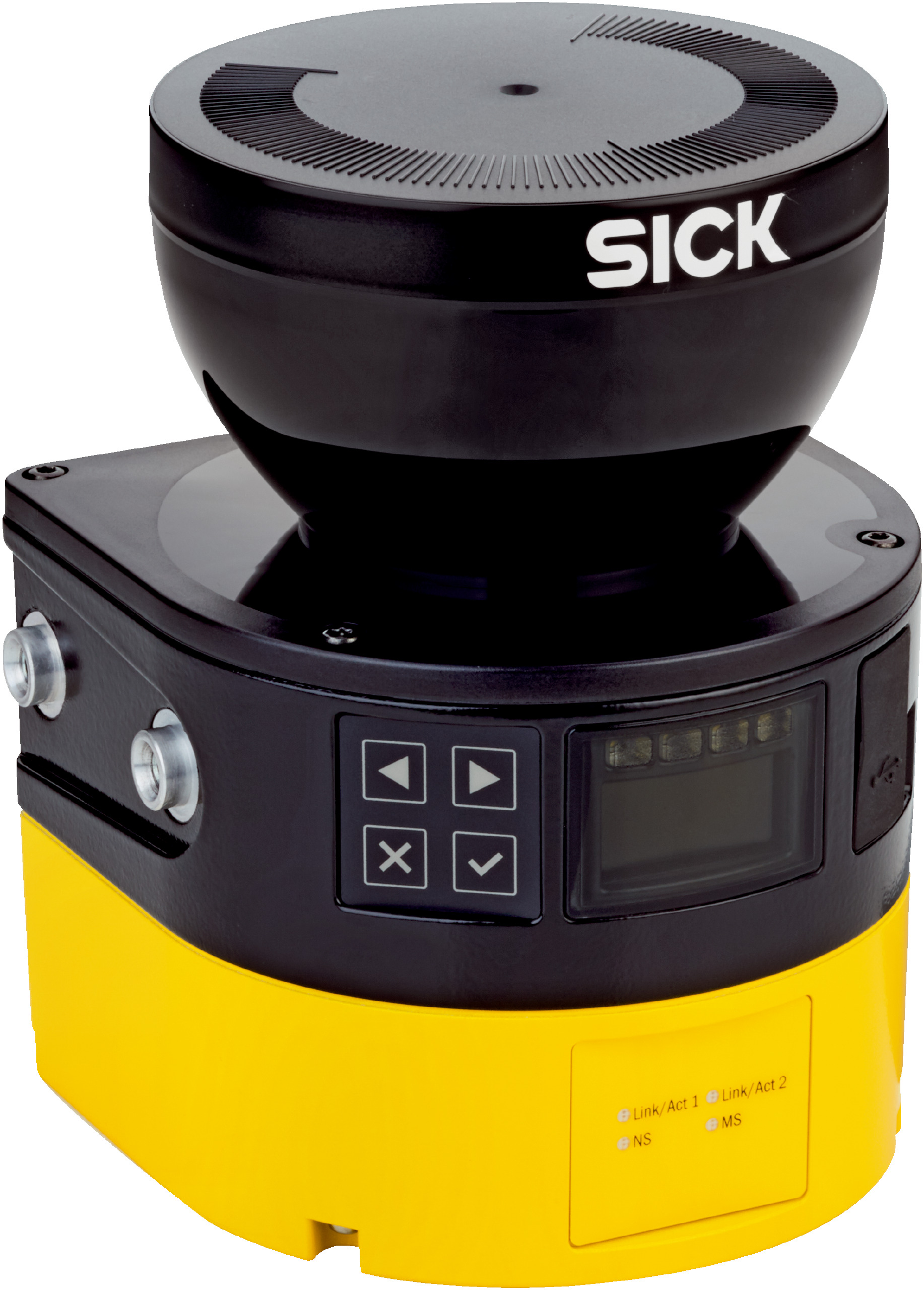

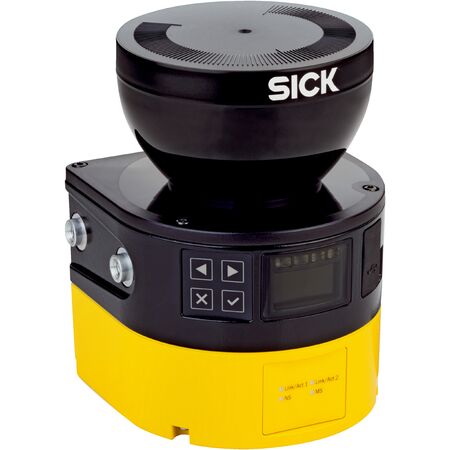

Safety Laser Scanner MICS3-ABAZ55PZ1 | 5.5m Protective Range | 275° Scanning Angle | SIL 2 Compliance | by SICK
The MICS3-ABAZ55PZ1 Safety Laser Scanner is designed for indoor safety monitoring in industrial environments, featuring a protective field range of 5.5 meters and a wide scanning angle of 275°. With SIL 2 safety compliance and the ability to monitor multiple fields simultaneously, it ensures robust machine safeguarding and perimeter protection, making it ideal for automated guided vehicles and robotics safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Laser Scanner MICS3-ABAZ55PZ1 | 5.5m Protective Range | 275° Scanning Angle | SIL 2 Compliance | by SICK
Brand: SICK
SKU: 1100405
Alternatively Known As: microScan3 Core PROFINET Safety Laser Scanner, SICK Safety Scanner, Industrial Laser Safety Sensor
Technical Specifications
- Protective field range: 5.5 m
- Warning field range: 40 m
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7.2 W typical
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Housing material: Aluminum with polycarbonate optics cover
- Laser wavelength: 845 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.5 kg
Key Features
- Protective field range of 5.5 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 monitoring cases
- Wide scanning angle of 275° with configurable resolution options
- Safety integrity level SIL 2 and Category 3 safety compliance
- Integrated configuration memory and multiple safety functions
- PROFINET communication with PROFIsafe protocol support
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Fast response time of 95 ms and pulsed laser diode technology
- Comprehensive diagnostics and network management features
Professional Installation Requirements
- Installation must be performed by qualified professionals familiar with safety laser scanners and PROFINET network integration to ensure compliance with safety standards.
Applications
- Indoor safety monitoring in industrial environments
- Machine safeguarding and perimeter protection
- Automated guided vehicles (AGVs) and robotics safety
- Access control and hazard area monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and extends product lifecycle
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MICS3-ABAZ55PZ1 Safety Laser Scanner is available for immediate purchase, ideal for industrial indoor safety and automation applications.
