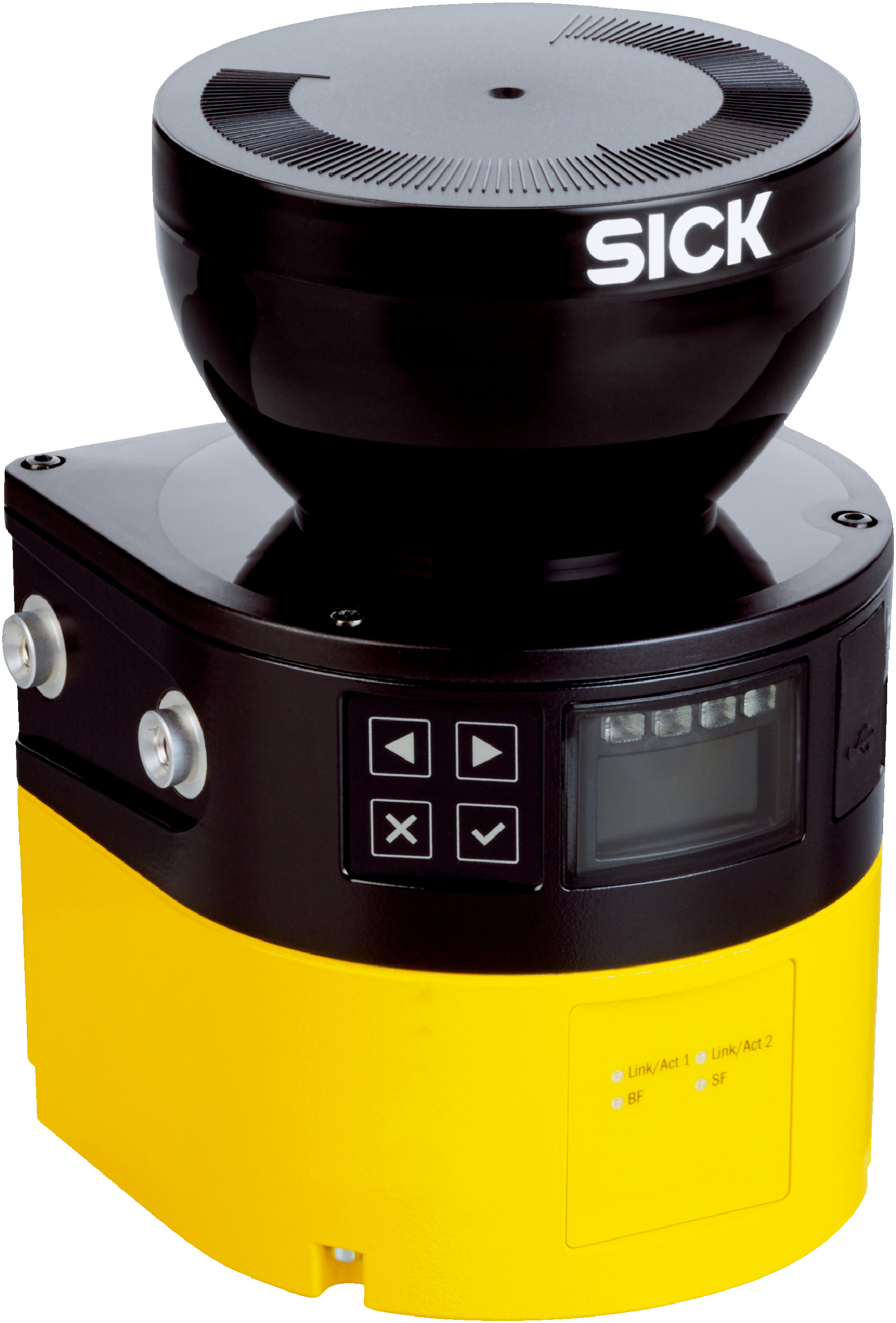

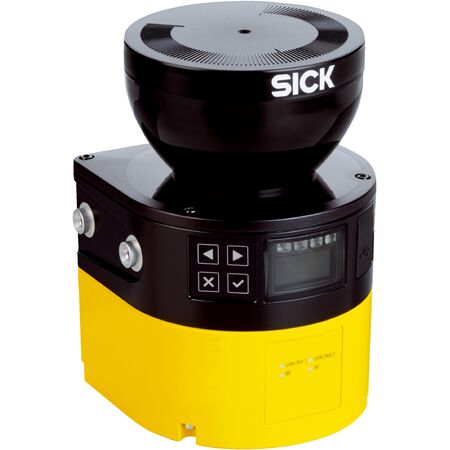

Safety Laser Scanner MICS3-ACAZ55PZ1 | 5.5m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The MICS3-ACAZ55PZ1 Safety Laser Scanner is designed for indoor safety monitoring in industrial environments, featuring a protective field range of 5.5 meters and a wide scanning angle of 275°. With SIL 2 safety integrity and robust IP65-rated housing, it ensures reliable machine safeguarding and perimeter protection, making it ideal for automated guided vehicles and robotics safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Laser Scanner MICS3-ACAZ55PZ1 | 5.5m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
Brand: SICK
SKU: 1083009
Alternatively Known As: microScan3 Core PROFINET Safety Laser Scanner, SICK Safety Scanner, Industrial Laser Safety Sensor
Technical Specifications
- Protective field range: 5.5 m
- Warning field range: 40 m
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7.2 W typical
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Housing material: Aluminum with polycarbonate optics cover
- Laser wavelength: 845 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.5 kg
Key Features
- Protective field range of 5.5 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 monitoring cases
- Wide scanning angle of 275° with configurable resolution options
- Safety integrity level SIL 2 and Category 3 safety classification
- Integrated configuration memory and multiple sampling for reliability
- Safe contour detection and static protective field switching
- Connection via PROFINET with PROFIsafe protocol support
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Graphic color display and LED indicators for diagnostics
- Pulsed laser diode with laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety systems and PROFINET networks to ensure compliance and optimal performance.
Applications
- Indoor safety monitoring in industrial environments
- Machine safeguarding and perimeter protection
- Automated guided vehicles (AGVs) and robotics safety
- Access control and hazard area monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and extends product lifecycle
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MICS3-ACAZ55PZ1 Safety Laser Scanner is available for immediate purchase, ideal for industrial indoor safety and automation applications.
