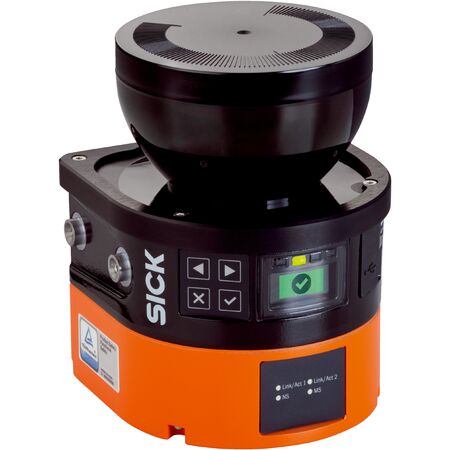

Safety Laser Scanner MICS3-CBUZ40IZ1P01 | SIL 2 & IP65 Rated | 275° Scanning Angle | by SICK
The Safety Laser Scanner MICS3-CBUZ40IZ1P01 is designed for outdoor safety monitoring, featuring a wide 275° scanning angle and SIL 2 safety integrity level. Ideal for industrial perimeter protection and access control, this robust scanner offers high ambient light immunity and a durable IP65 rated aluminum housing, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Type 3 (IEC 61496)
- Safety Integrity Level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance Level: PL d (EN ISO 13849)
- Performance Class: D (IEC/TS 62998)
- Response Time: 115 ms
- Scanning Angle: 275°
- Resolution: Configurable 50 mm or 70 mm
- Angular Resolution: 0.39°
- Number of Fields: 128
- Number of Monitoring Cases: 128
- Power Supply: 24 V DC (16.8 V DC to 30 V DC)
- Power Consumption: 7.2 W typical
- Connection: 1x M12 male 4-pin A-coded for power, 2x M12 female 4-pin D-coded for EtherNet/IP
- Protection Class: III (EN 61140)
- Enclosure Rating: IP65 (IEC 60529)
- Operating Temperature: -25 °C to +50 °C
- Storage Temperature: -25 °C to +70 °C
- Ambient Light Immunity: 12,000 lx halogen, 40,000 lx sunlight
- Housing Material: Aluminum with RAL 2004 (orange) and RAL 9005 (black) finish
- Optics Cover: Polycarbonate with scratch-resistant coating
- Laser Type: Pulsed laser diode, wavelength 845 nm, Laser Class 1
- Dimensions (H x L x W): 151mm x 115mm x 115mm
- Weight: 1.45 kg
Key Features
- Protective field range of 4 m and warning field range of 40 m
- Up to 8 simultaneously monitored fields with 128 monitoring cases
- Wide scanning angle of 275° with configurable resolution of 50 mm or 70 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Integrated configuration memory and multiple sampling functions
- EtherNet/IP™ industrial network with 8 safety outputs via network
- Graphic color display and LED indicators for status
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Operating temperature range from -25 °C to +50 °C
- High ambient light immunity to halogen light (12,000 lx) and sunlight (40,000 lx)
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety systems and EtherNet/IP networks.
Applications
- Outdoor safety monitoring
- Industrial perimeter protection
- Access control and hazard area monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low power consumption of 7.2 W
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK MICS3-CBUZ40IZ1P01 outdoorScan3 Pro EtherNet/IP Safety Laser Scanner is available for immediate purchase, ideal for outdoor industrial safety and perimeter protection applications.
