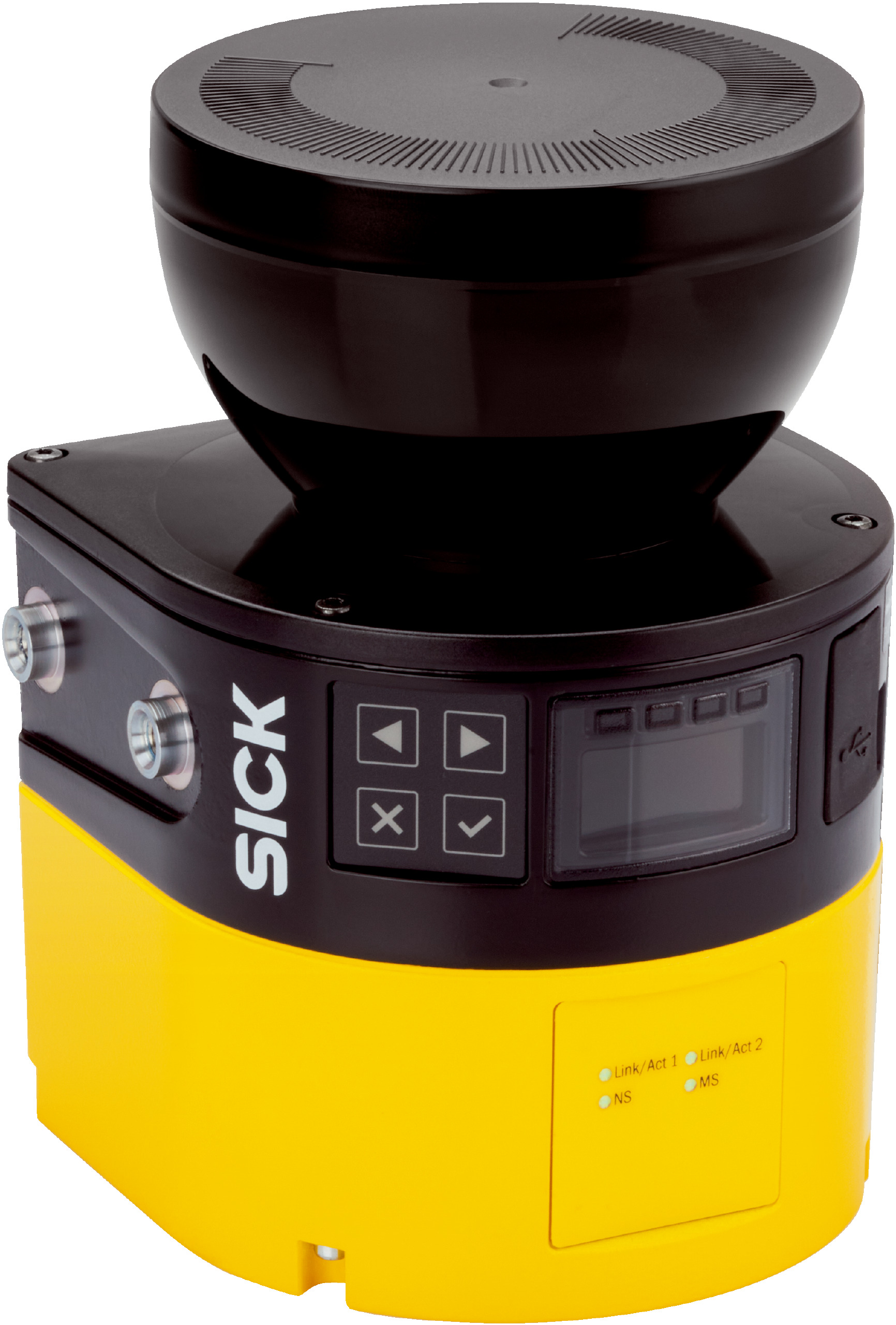

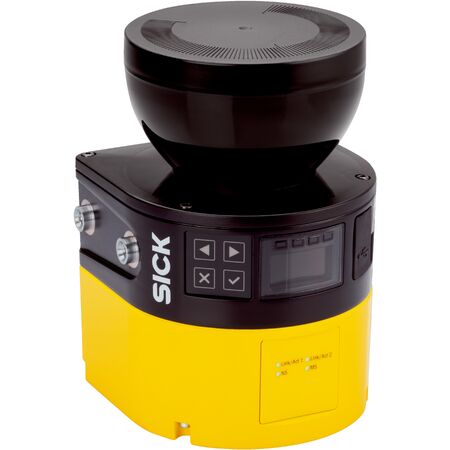

Safety Laser Scanner MICS3-CCAC40AA1 | 4m Protective Range | 40m Warning Range | IP65 Rated | by SICK
The MICS3-CCAC40AA1 Safety Laser Scanner is designed for indoor safety monitoring in industrial environments, featuring a protective field range of 4m and a warning field range of 40m. With the ability to monitor up to 8 fields simultaneously and a wide scanning angle of 275°, it ensures comprehensive machine safeguarding and area protection. Built with robust IP65 rated aluminum housing, this scanner is perfect for ensuring safety compliance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Laser Scanner MICS3-CCAC40AA1 | 4m Protective Range | 40m Warning Range | IP65 Rated | by SICK
Brand: SICK
SKU: 1138040
Alternatively Known As: MicroScan3 Pro Safety Laser Scanner, SICK Safety Scanner, Industrial Laser Safety Sensor
Technical Specifications
- Product version: microScan3 Pro I/O - EFI-pro
- Protective field range: 4 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 8
- Number of fields: 128
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.39°
- Response time: 70 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power consumption typical: 8.1 W
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Interfaces: Ethernet, USB 2.0, Mini-USB
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 2.5 kg
Key Features
- Protective field range of 4 m and warning field range of 40 m
- Simultaneous monitoring of up to 8 fields with 128 monitoring cases
- Wide scanning angle of 275° with configurable resolution options
- Safety integrity level SIL 2 and Category 3 safety classification
- Multiple safety functions including restart interlock, external device monitoring, and safe contour detection
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Graphic color display and LED indicators for status
- Ethernet and USB interfaces for configuration and diagnostics
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety laser scanners and relevant safety standards.
Applications
- Indoor safety monitoring in industrial environments
- Machine safeguarding
- Area protection and access control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient pulsed laser diode technology reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MICS3-CCAC40AA1 Safety Laser Scanner is available for immediate purchase, ideal for industrial indoor safety monitoring and machine safeguarding applications.
