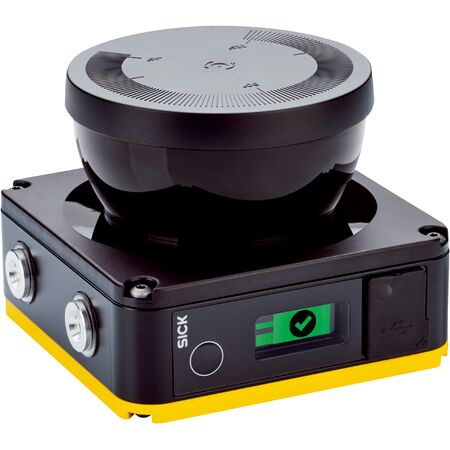

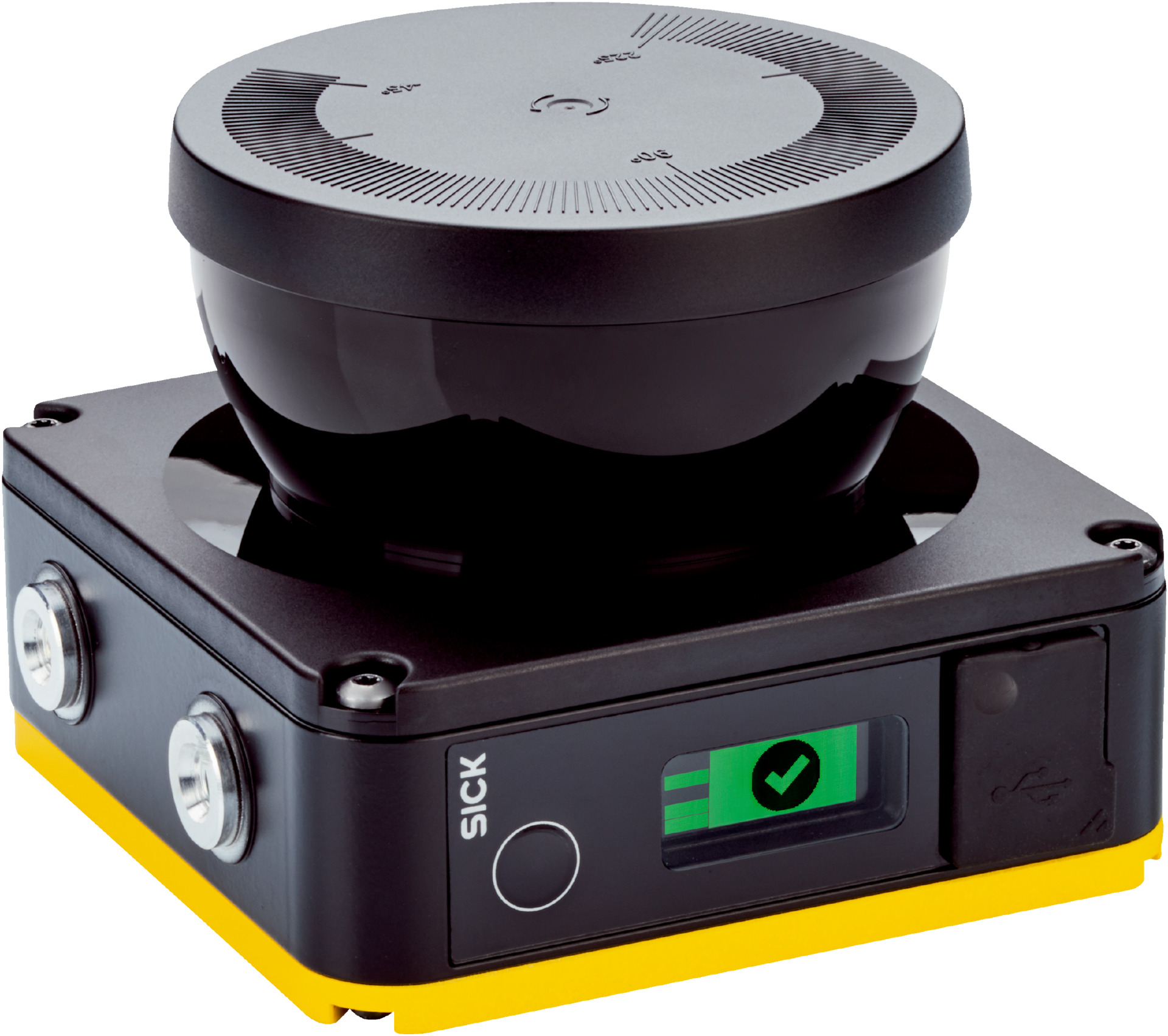

Safety Laser Scanner NANS3-CAAZ30IZ1 | 3m Protective Range | 10m Warning Range | SIL 2 Safety Level | by SICK
The Safety Laser Scanner NANS3-CAAZ30IZ1 is designed for industrial safety monitoring, featuring a protective field range of 3m and a warning field range of 10m. With the ability to monitor up to 8 fields simultaneously and a wide scanning angle of 275°, it ensures comprehensive area protection in manufacturing environments. Built for reliability, this scanner supports EtherNet/IP communication and complies with SIL 2 safety standards, making it ideal for automation and machine safeguarding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 3 m
- Warning field range: 10 m
- Distance measuring range: 40 m
- Number of simultaneously monitored fields: ≤ 8
- Number of fields: 128
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 20 mm to 200 mm
- Angular resolution: 0.17°
- Response time: 85 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 5.5 W
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Laser type: Pulsed laser diode, wavelength 905 nm, Laser class 1
- Communication: EtherNet/IP CIP Safety, USB 2.0 micro USB for configuration
- Dimensions (H x L x W): 80mm x 118mm x 107mm
- Weight: 0.67 kg
Key Features
- Protective field range of 3 m and warning field range of 10 m
- Distance measuring range up to 40 m
- Simultaneous monitoring of up to 8 fields with 128 monitoring cases
- Wide scanning angle of 275° with configurable resolution options
- Safety integrity level SIL 2 and Category 3 safety compliance
- Multiple safety functions including restart interlock, external device monitoring, and safe contour detection
- EtherNet/IP™ CIP Safety™ communication protocol support
- Graphic color display with LEDs for status indication
- Robust IP65 rated aluminum housing with polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety standards and proper integration into industrial safety systems.
Applications
- Indoor safety monitoring and protection
- Industrial automation and robotics
- Machine safeguarding
- Area protection in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 5.5 W
- Durable aluminum housing and long mission time of 20 years reduce waste and replacement frequency
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK NANS3-CAAZ30IZ1 nanoScan3 Pro EtherNet/IP Safety Laser Scanner is available for immediate purchase, ideal for industrial indoor safety and automation applications.
