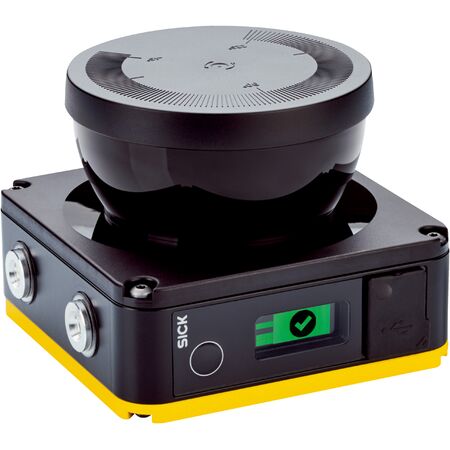

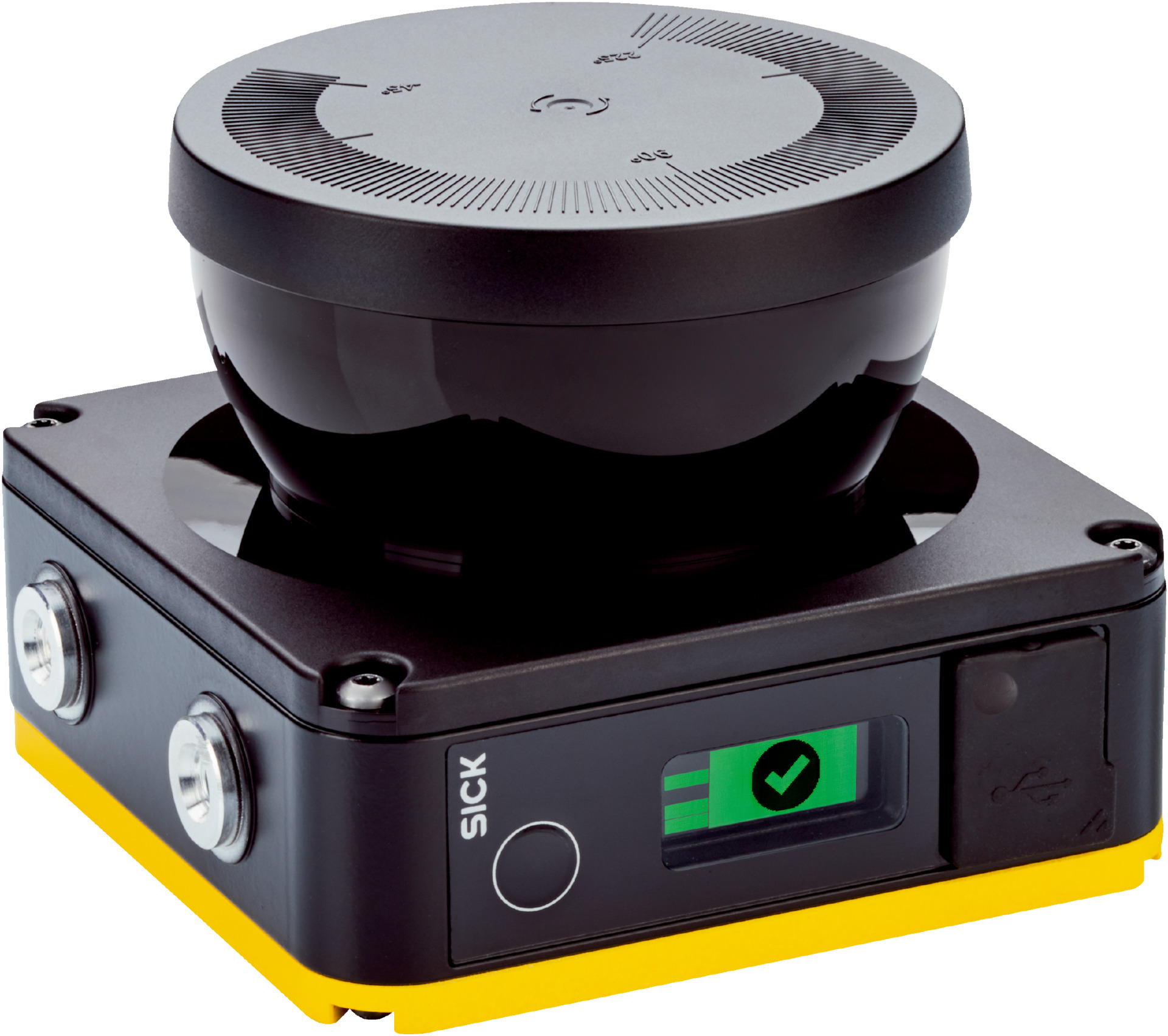

Safety Laser Scanner NANS3-CAAZ30ZA1 | 3m Protective Range | 10m Warning Range | 275° Scanning Angle | by SICK
The Safety Laser Scanner NANS3-CAAZ30ZA1 offers a protective field range of 3 meters and a warning field range of 10 meters, making it ideal for indoor safety monitoring and industrial automation. With the ability to monitor up to 8 fields simultaneously and a fast response time of 70 ms, this scanner ensures reliable machine safeguarding and area protection in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 3 m
- Warning field range: 10 m
- Distance measuring range: 40 m
- Number of simultaneously monitored fields: ≤ 8
- Number of monitoring cases: 128
- Scanning angle: 275°
- Configurable resolution: 20 mm to 200 mm
- Angular resolution: 0.17°
- Response time: 70 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 5.5 W
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Laser type: Pulsed laser diode, wavelength 905 nm, Laser class 1
- Dimensions (H x L x W): 80mm x 117.5mm x 106.6mm
- Weight: 0.67 kg
Key Features
- Protective field range of 3 m and warning field range of 10 m
- Distance measuring range up to 40 m
- Simultaneous monitoring of up to 8 fields with 128 monitoring cases
- Wide scanning angle of 275° with configurable resolution from 20 mm to 200 mm
- Fast response time of 70 ms
- Type 3 safety rated (IEC 61496) with SIL 2 and PL d performance levels
- Multiple safety functions including restart interlock, external device monitoring, and safe contour detection
- Ethernet data output with EtherNet/IP™ CIP Safety™ protocol
- Robust IP65 rated aluminum housing with polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety laser scanners and industrial safety standards.
Applications
- Indoor safety monitoring and protection
- Industrial automation and robotics
- Machine safeguarding
- Area protection in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 5.5 W
- Durable aluminum housing reduces material waste and extends product life
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK nanoScan3 Pro EFI-pro Safety Laser Scanner NANS3-CAAZ30ZA1 is available for immediate purchase, ideal for indoor industrial safety and automation applications.
