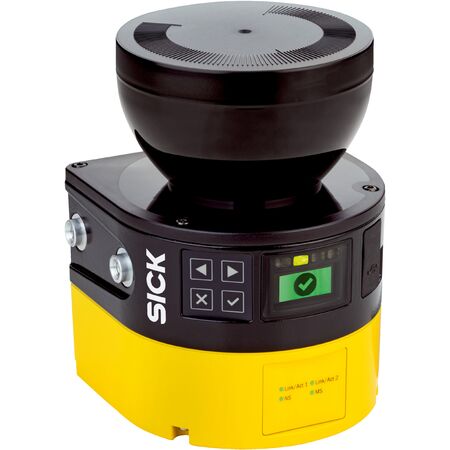

Safety Laser Scanner PROFINET | 9m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The Safety Laser Scanner PROFINET is designed for indoor safety monitoring in industrial automation, featuring a protective field range of up to 9 meters and a wide scanning angle of 275°. With SIL 2 safety integrity and robust IP65-rated housing, it ensures reliable machine safeguarding and perimeter protection, making it ideal for factory automation requiring PROFINET communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 9 m
- Warning field range: 64 m
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 115 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7.2 W
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Connection: 1x M12 male 4-pin A-coded for power, 2x M12 female 4-pin D-coded for PROFINET
- Communication protocol: PROFINET with PROFIsafe
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range up to 9 m and warning field range up to 64 m
- Simultaneous monitoring of up to 4 fields with 8 monitoring cases
- Wide scanning angle of 275° with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Integrated configuration memory and multiple sampling functions
- Communication via PROFINET with PROFIsafe protocol support
- Graphic color display and LED indicators for status
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety standards and PROFINET networks to ensure compliance and optimal performance.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Factory automation requiring PROFINET communication
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable housing materials extend product life and reduce waste
- Supports PROFIenergy for energy management in industrial networks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK microScan3 Core PROFINET Safety Laser Scanner MICS3-ABAZ90PZ1P01 is available for immediate purchase, ideal for indoor industrial safety and automation applications.
