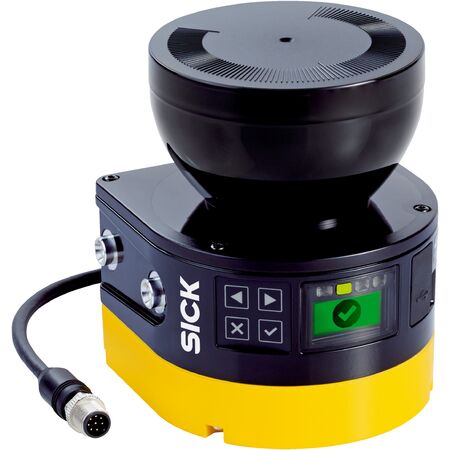

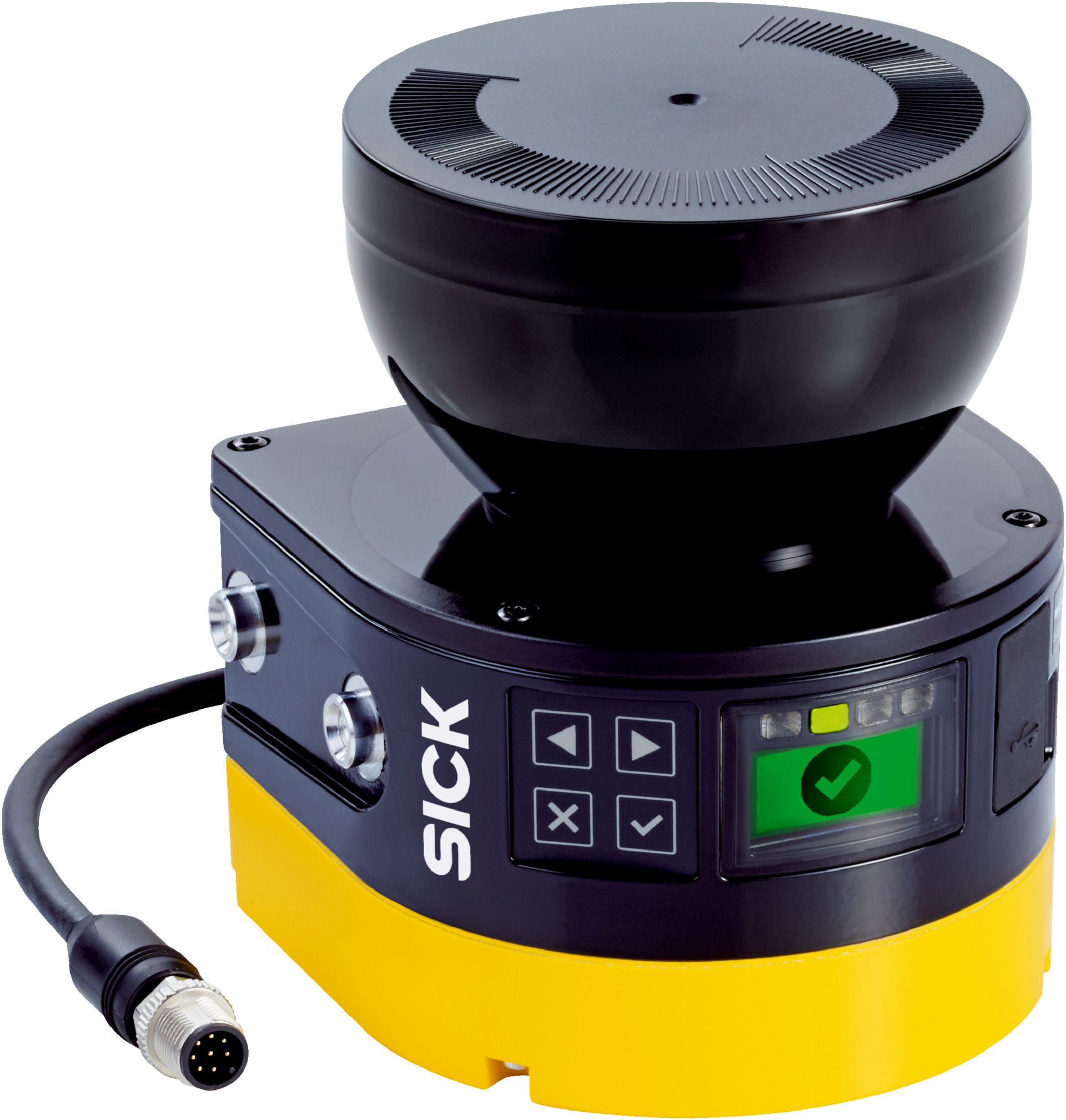

Safety Laser Scanner | Protective Range 4m | 275° Scanning Angle | SIL 2 Certified | by SICK
The Safety Laser Scanner is designed for indoor safety monitoring in industrial automation, featuring a protective field range of 4m and a warning field range of 40m. With the ability to monitor up to 4 fields simultaneously and a 275° scanning angle, this SIL 2 certified sensor ensures reliable machine safeguarding and perimeter protection, making it ideal for hazardous area detection and access control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 4 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 70 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7 W
- Connection: Male connector, M12, 8 pin, A-coded
- Universal I/Os: 3
- OSSD pairs: 1
- Configuration: PC with Safety Designer software
- Display: Graphic color display with LEDs
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5
- Shock resistance: IEC 60068-2-27
- Light type: Pulsed laser diode, wavelength 845 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 135mm x 111mm x 112mm
- Weight: 1.15 kg
Key Features
- Protective field range of 4 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 total fields
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Type 3 safety sensor with SIL 2, Category 3, and PL d certifications
- Integrated restart interlock, external device monitoring, and multiple sampling
- Graphic color display with LEDs for status indication
- Robust aluminum housing with polycarbonate optics cover and scratch-resistant coating
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -10 °C to +50 °C
- Vibration and shock resistant according to multiple IEC standards
- Pulsed laser diode light source with laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with safety sensor systems and electrical standards.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Hazardous area detection and access control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7 W
- Durable construction reduces replacement frequency and waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MICS3-AAAZ40AZ1P01 microScan3 Core I/O Safety Sensor is available for immediate purchase, ideal for indoor industrial safety and automation applications.
