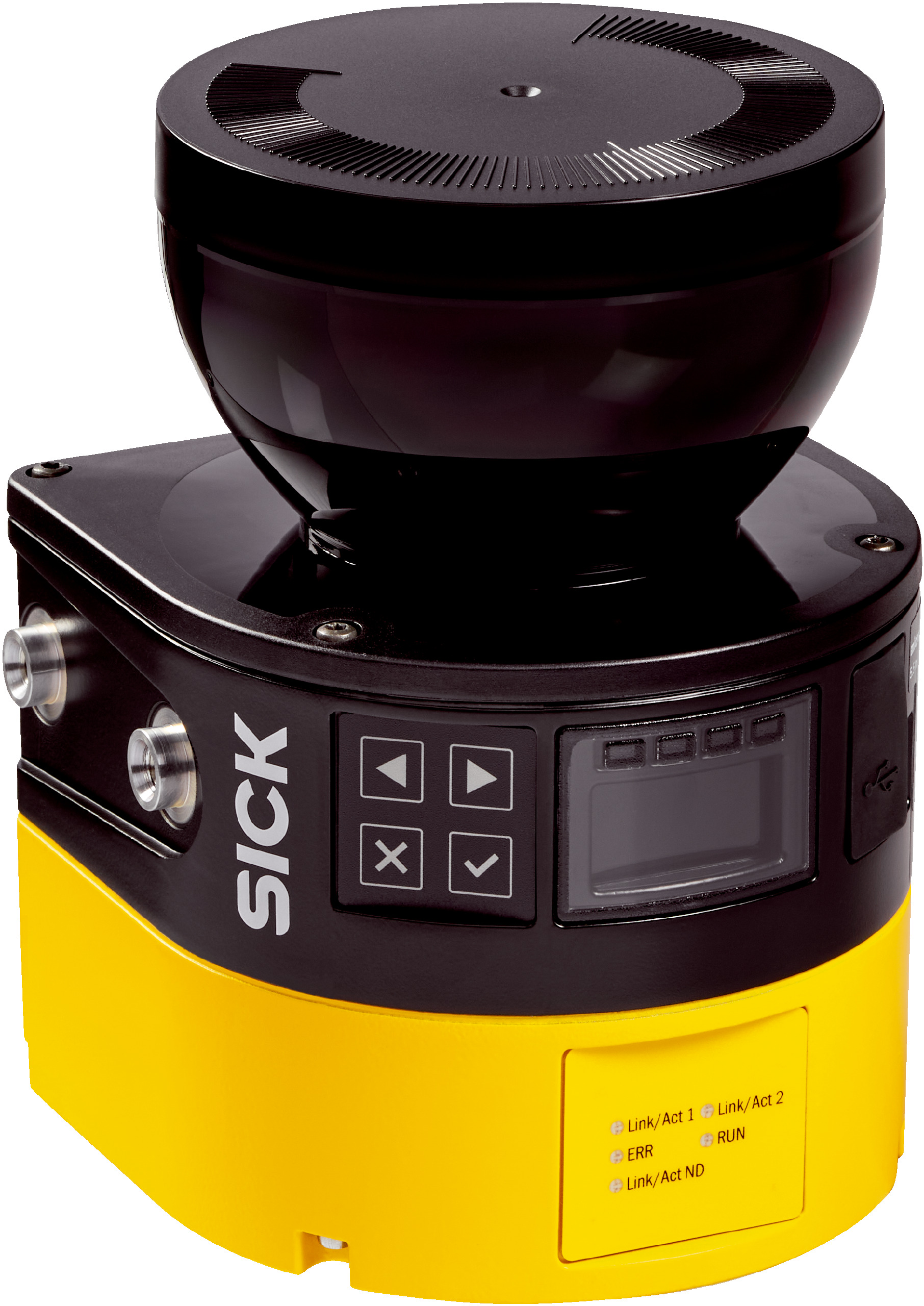

Safety Laser Scanner | Protective Range 9m | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The Safety Laser Scanner is designed for indoor safety monitoring and industrial automation, featuring a protective field range of up to 9 meters and a wide scanning angle of 275°. With SIL 2 safety integrity and the ability to monitor up to 4 fields simultaneously, it ensures reliable operation in hazardous areas, making it ideal for access control and collision avoidance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Laser Scanner | Protective Range 9m | 275° Scanning Angle | SIL 2 Safety Level | by SICK
Brand: SICK
SKU: 1108235
Alternatively Known As: microScan3 Core Safety Laser Scanner, SICK Safety Scanner, EtherCAT Safety Laser Scanner
Technical Specifications
- Product version: microScan3 Core - EtherCAT
- Protective field range: 9 m
- Warning field range: 64 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Number of monitoring cases: 8
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.1°
- Response time: 115 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 4-pin A-coded for voltage supply, 2 x female M12 4-pin D-coded for EtherCAT
- Configuration method: PC with Safety Designer software
- Configuration and diagnostics interface: USB 2.0, Mini-USB, Ethernet
- Data interface: Ethernet for data output, configuration and diagnostics
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7.2 W
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration and shock resistance compliant with IEC standards
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.5 kg
Key Features
- Protective field range up to 9 m and warning field range up to 64 m
- Simultaneous monitoring of up to 4 fields with 8 monitoring cases
- Wide scanning angle of 275° with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- EtherCAT industrial network with 4 safety outputs via network
- Integrated configuration memory and multiple safety functions including restart interlock and safe contour detection
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Graphic color display and LED indicators for status monitoring
- Low power consumption of 7.2 W typical
- Comprehensive diagnostics and configuration via USB 2.0, Mini-USB, and Ethernet
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety laser scanners and EtherCAT networks to ensure compliance with safety standards.
Applications
- Indoor safety monitoring and protection
- Industrial automation and machinery safety
- Hazardous area perimeter guarding
- Access control and collision avoidance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption reduces environmental impact
- Durable construction extends product life and reduces waste
- Compliance with RoHS and China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

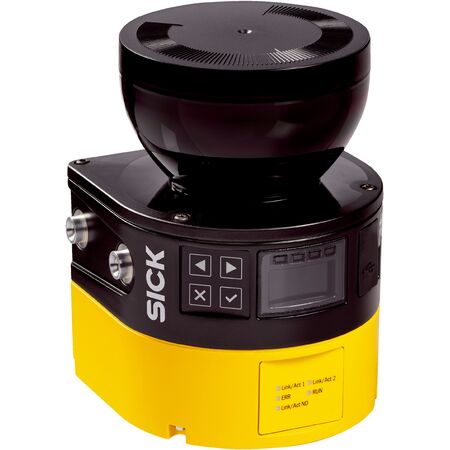

The SICK MICS3-ABAZ90EN1 Safety Laser Scanner is available for immediate purchase, ideal for indoor industrial safety and automation applications.
