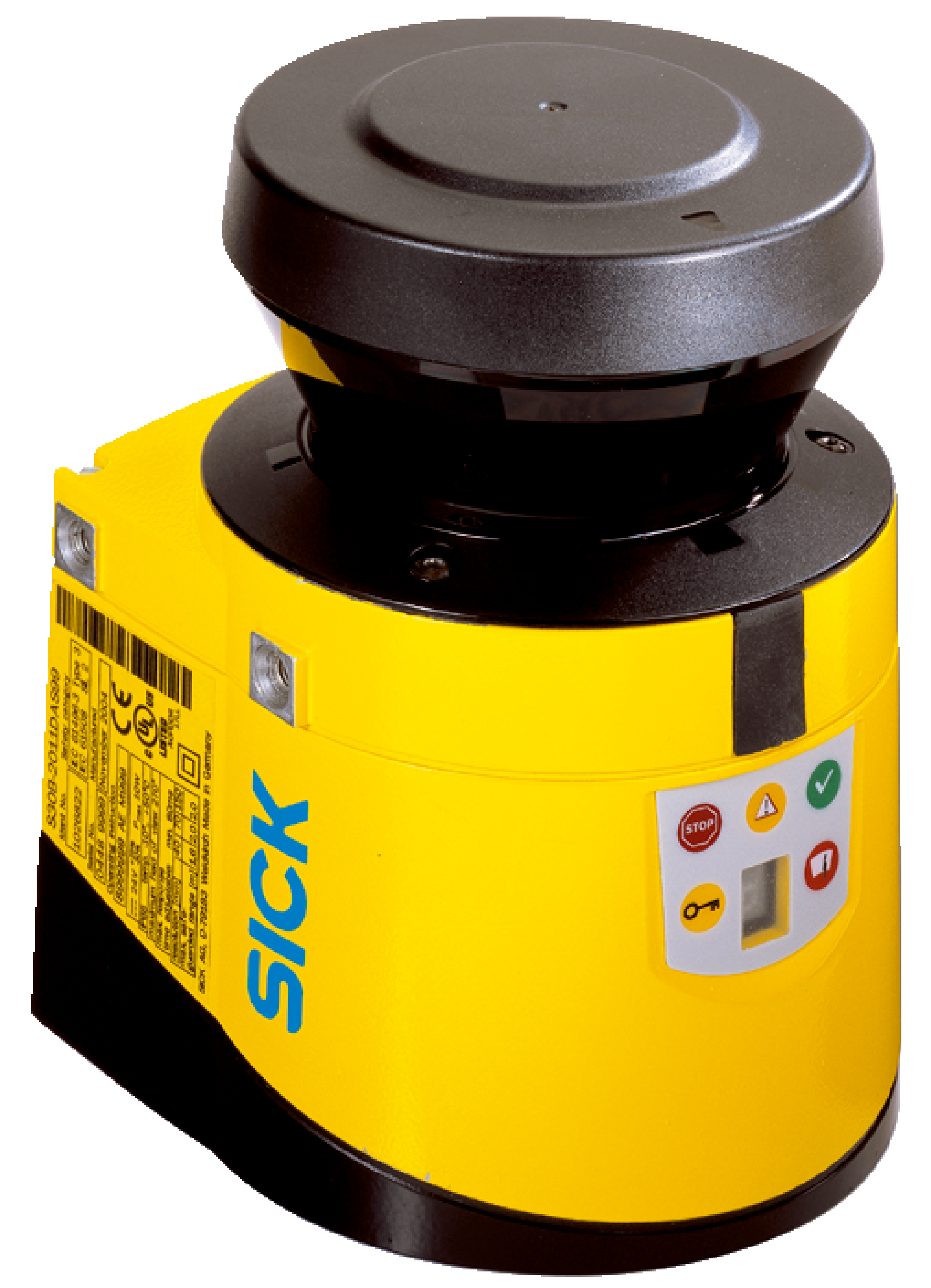

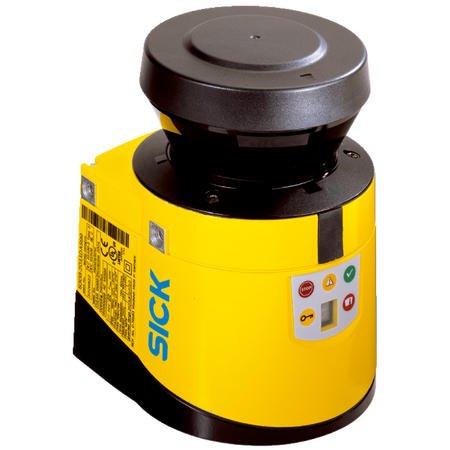

Safety Laser Scanner S300 EXP | 3m Protective Range | 270° Scanning Angle | SIL 2 Safety Rating | by SICK
The S300 EXP Safety Laser Scanner is designed for indoor safety monitoring and industrial automation, featuring a protective field range of 3 m and a warning field range of 8 m. With a 270° scanning angle and configurable resolution, it ensures precise detection and safety compliance. Ideal for robotics and access control, this robust scanner operates efficiently with a SIL 2 safety integrity level, making it a reliable choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Laser Scanner, Industrial Safety Scanner, S300 Safety Scanner, Laser Safety Sensor
Technical Specifications
- Protective field range: 3 m
- Warning field range: 8 m at 15% reflectivity
- Distance measuring range: 30 m
- Scanning angle: 270°
- Resolution: Configurable 30 mm to 150 mm
- Response time: 80 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 0.33 A to 1.7 A
- Outputs: 2 OSSD pairs at 250 mA, 3 diagnostic outputs at 100 mA
- Housing: Aluminum die cast with polycarbonate optics cover
- Protection class: III (EN 50178, EN 60950)
- Enclosure rating: IP65
- Operating temperature: -10°C to +50°C
- Laser wavelength: 905 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 152mm x 106mm x 102mm
- Weight: 1.2 kg
Key Features
- Protective field range of 3 m and warning field range of 8 m at 15% reflectivity
- Distance measuring range up to 30 m
- Triple field sets with 16 field sets and 48 fields
- 270° scanning angle with configurable resolution from 30 mm to 150 mm
- Safety integrity level SIL 2 and Category 3 safety rating
- Multiple safety functions including restart interlock, external device monitoring, and dynamic protective field switching
- Robust aluminum die cast housing with IP65 rating
- Pulsed laser diode with 905 nm wavelength and laser class 1 safety
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety laser scanners and compliant with relevant safety standards.
Applications
- Indoor safety monitoring and protection
- Industrial automation and robotics
- Access control and perimeter guarding
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK S300 Expert S30B-3011GB Safety Laser Scanner is available for immediate purchase, ideal for indoor industrial safety and automation applications.
