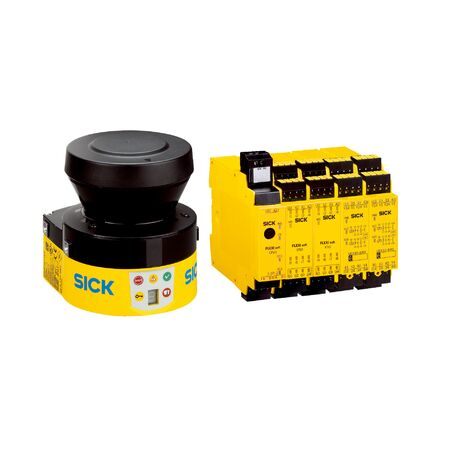

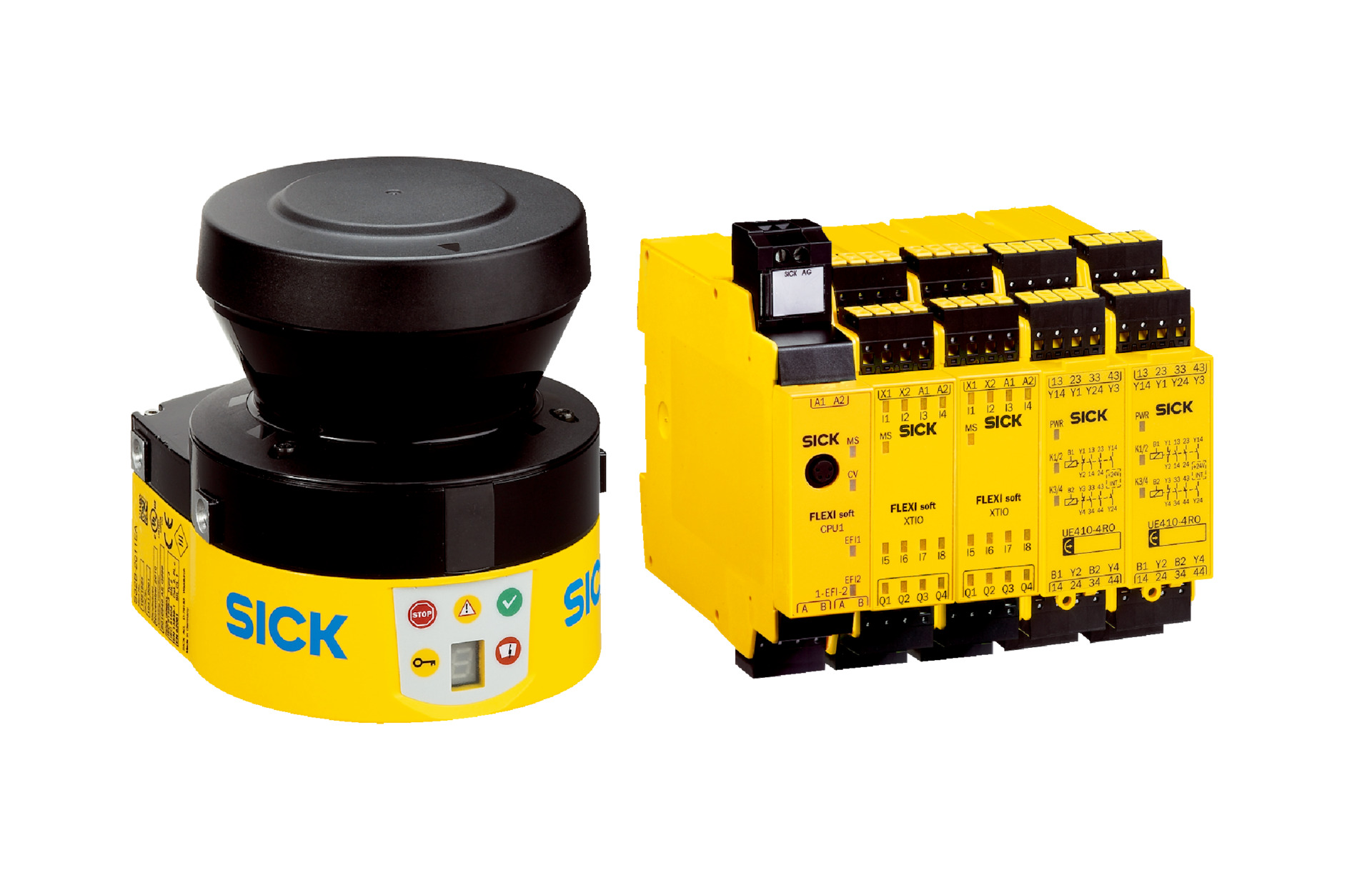

Safety Laser Scanner S300 Mini Remote | 3m Protective Field Range | Programmable Flexi Soft Controller | by SICK
The Safety Laser Scanner S300 Mini Remote is designed for industrial automation, featuring a 3m protective field range and a programmable Flexi Soft safety controller. Ideal for hazardous area protection and robot safety control, it ensures reliable monitoring with automatic restart and speed reduction features, enhancing workplace safety and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Variant: sBot Speed
- Product type: Hardware
- Robot controller compatibility: Generic
- Stopping process: With speed reduction
- Robot restart: Automatic
- Communication interface: Discrete I/Os
- Safe state on fault: Semiconductor outputs OFF
- Protective field range: 3 m
- Safety controller: Flexi Soft (CPU1), programmable
- Supply voltage: 24 V DC (16.8 V DC to 28.8 V DC)
- Performance level: PL d (ISO 13849-1)
- Ambient operating temperature: –10 °C to +50 °C
- Storage temperature: –20 °C to +50 °C
- Air humidity: 90% at 50 °C (EN 61131-2)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2.5 kg
Key Features
- Safety laser scanner S300 Mini Remote with 3 m protective field range
- Programmable safety controller Flexi Soft (CPU1) included
- Automatic robot restart with speed reduction stopping process
- Discrete I/O communication interface
- Safety-related semiconductor outputs default to OFF state on fault
- Emergency stop with prevention of unexpected restart
- Safety-rated monitored speed with trigger and switch field sets
- Ambient operating temperature from –10 °C to +50 °C
- Storage temperature from –20 °C to +50 °C
- High air humidity tolerance: 90% at 50 °C (EN 61131-2)
- Performance level PL d (ISO 13849-1) compliant
- Includes safety laser scanner, Flexi Soft main module, system plug, I/O and relay modules, and documentation
Professional Installation Requirements
- Installation and configuration should be performed by qualified safety system professionals or certified electricians familiar with programmable safety controllers and laser scanner systems.
Applications
- Hazardous area protection in industrial automation
- Robot safety control with speed reduction and emergency stop
- Safety monitoring in manufacturing and robotic environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental hazards
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK SAPPB2D-08X0040 sBot Speed safety laser scanner system is available for immediate purchase, ideal for industrial safety and robotic hazard protection applications.
